GMC Truck
>>
1989
>>
C 2500 Truck 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

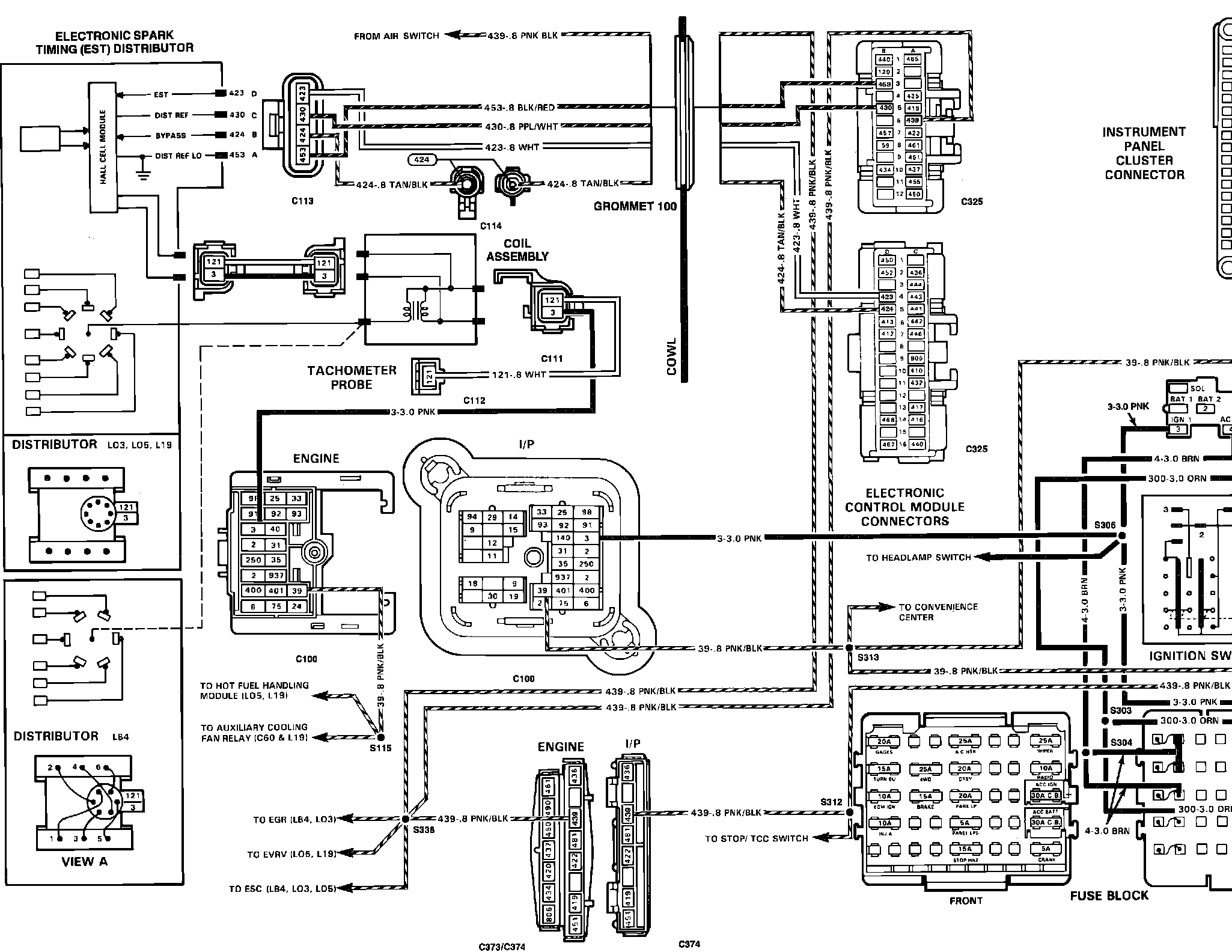

Ignition Controls
Ignition Controls
�P%Ignition:
