GMC Truck
>>
1984
>>
W Sprint/Caballero V6-231 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
VIN 9
VIN 9

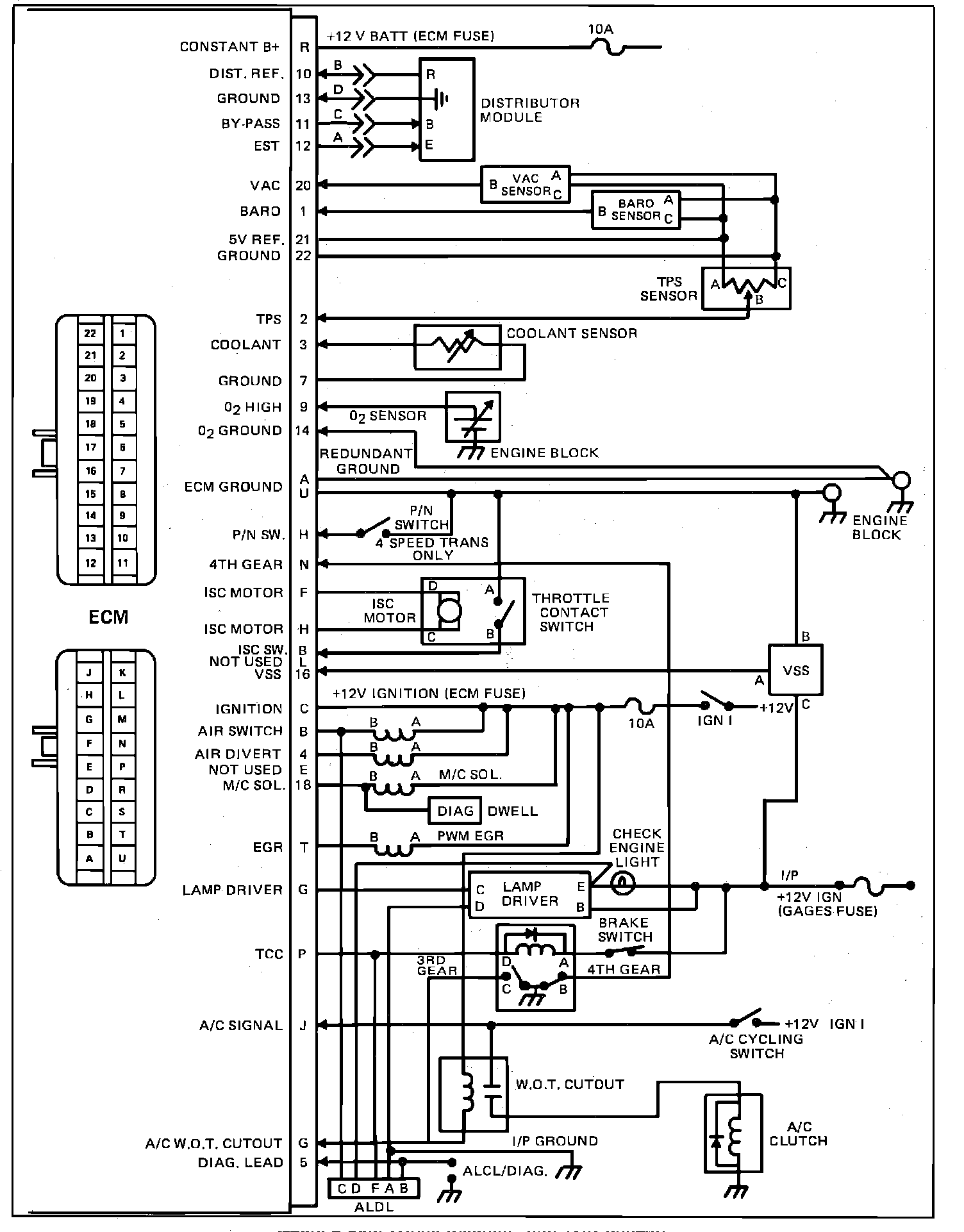

ECM Wiring Diagram (VIN 9):
