GMC Truck
>>
1984
>>
W Sprint/Caballero V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
VIN A
VIN A

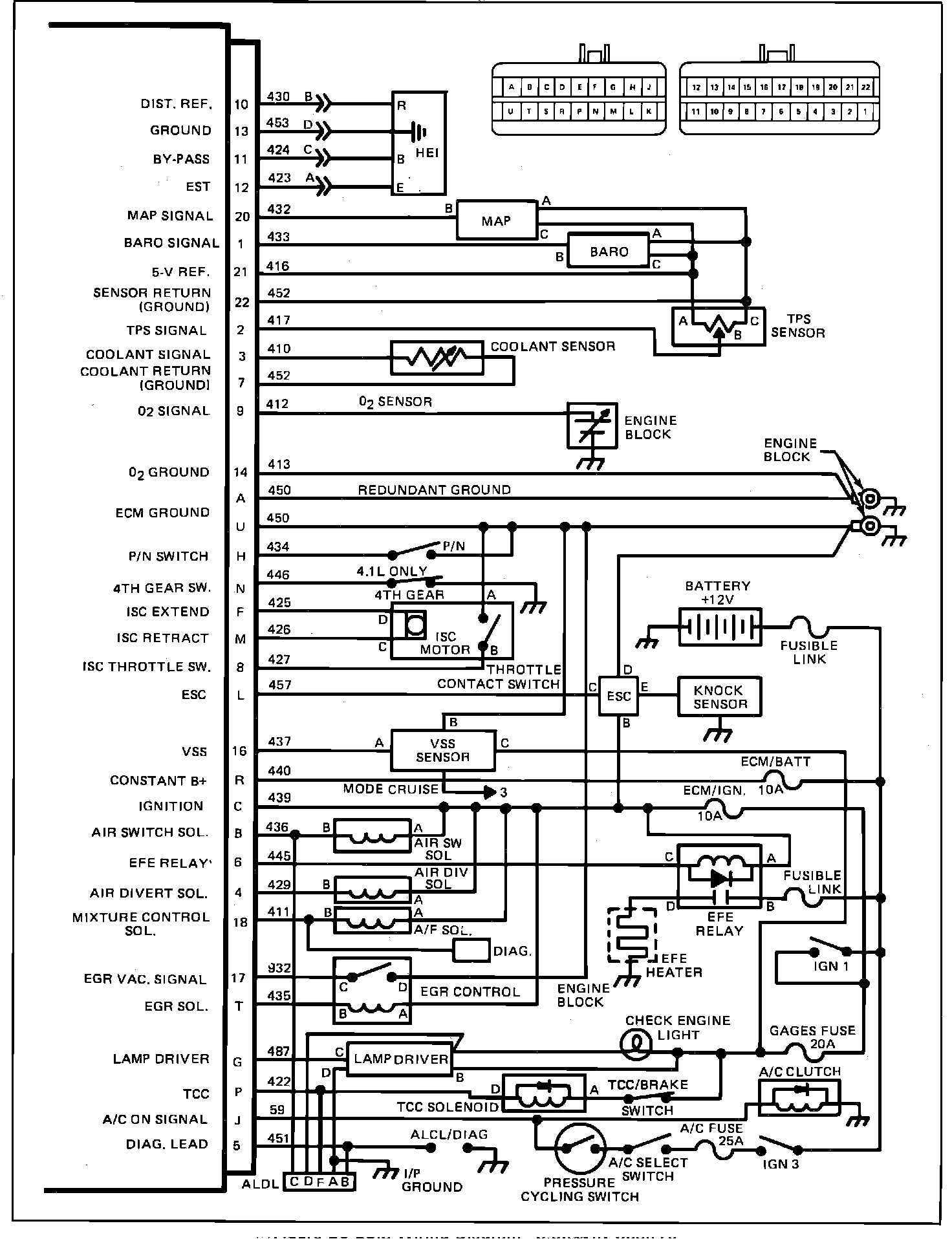

ECM Wiring Diagram:
