GMC Truck
>>
1984
>>
Jimmy Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Exhaust Pressure Regulator Vacuum Valve
>>
Testing and Inspection
>>
EPR Solenoid Electrical Check
EPR Solenoid Electrical Check

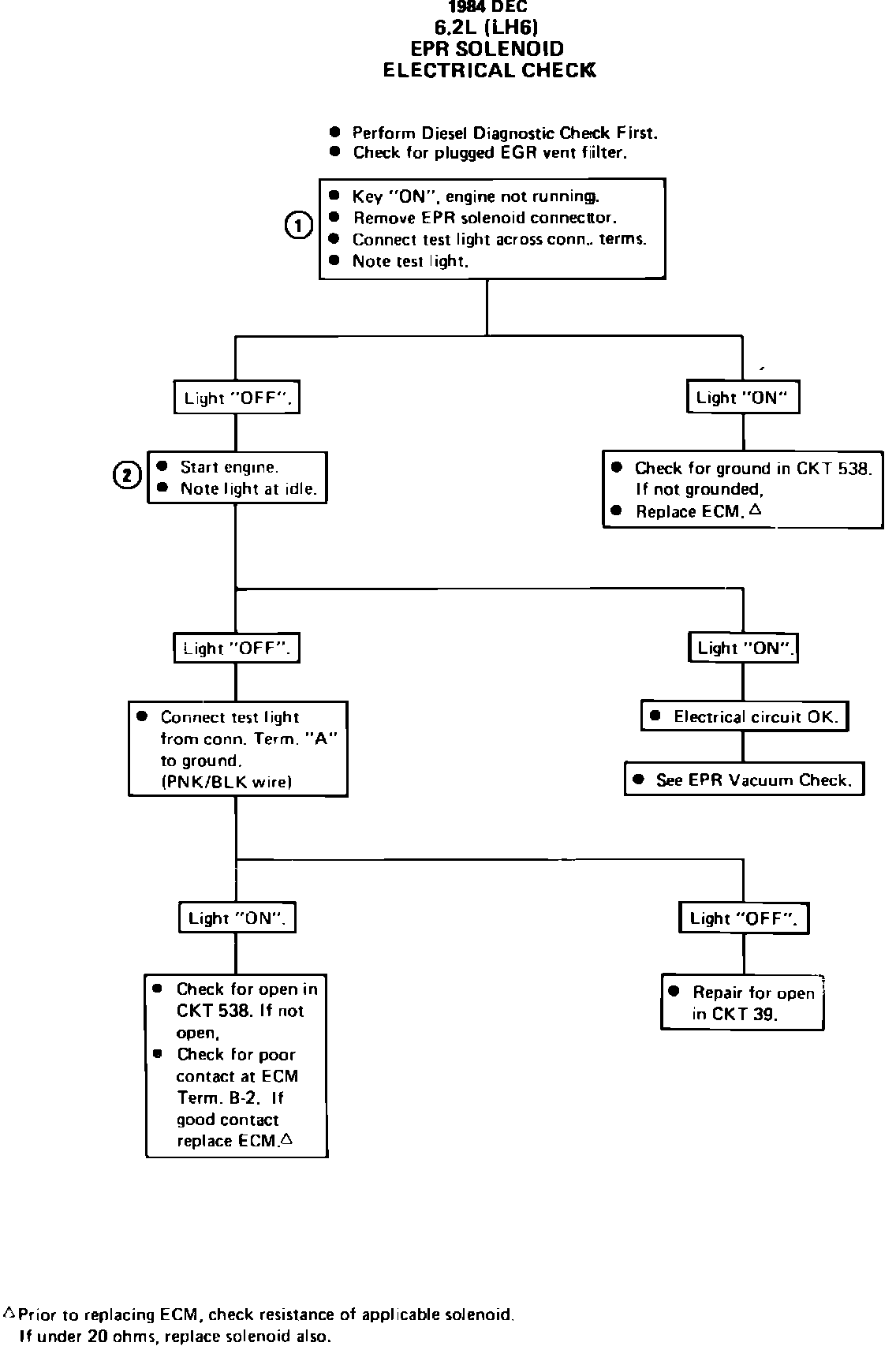

Fig. 15 EPR solenoid electrical check. 1984:
