Engine Control Module: Specifications

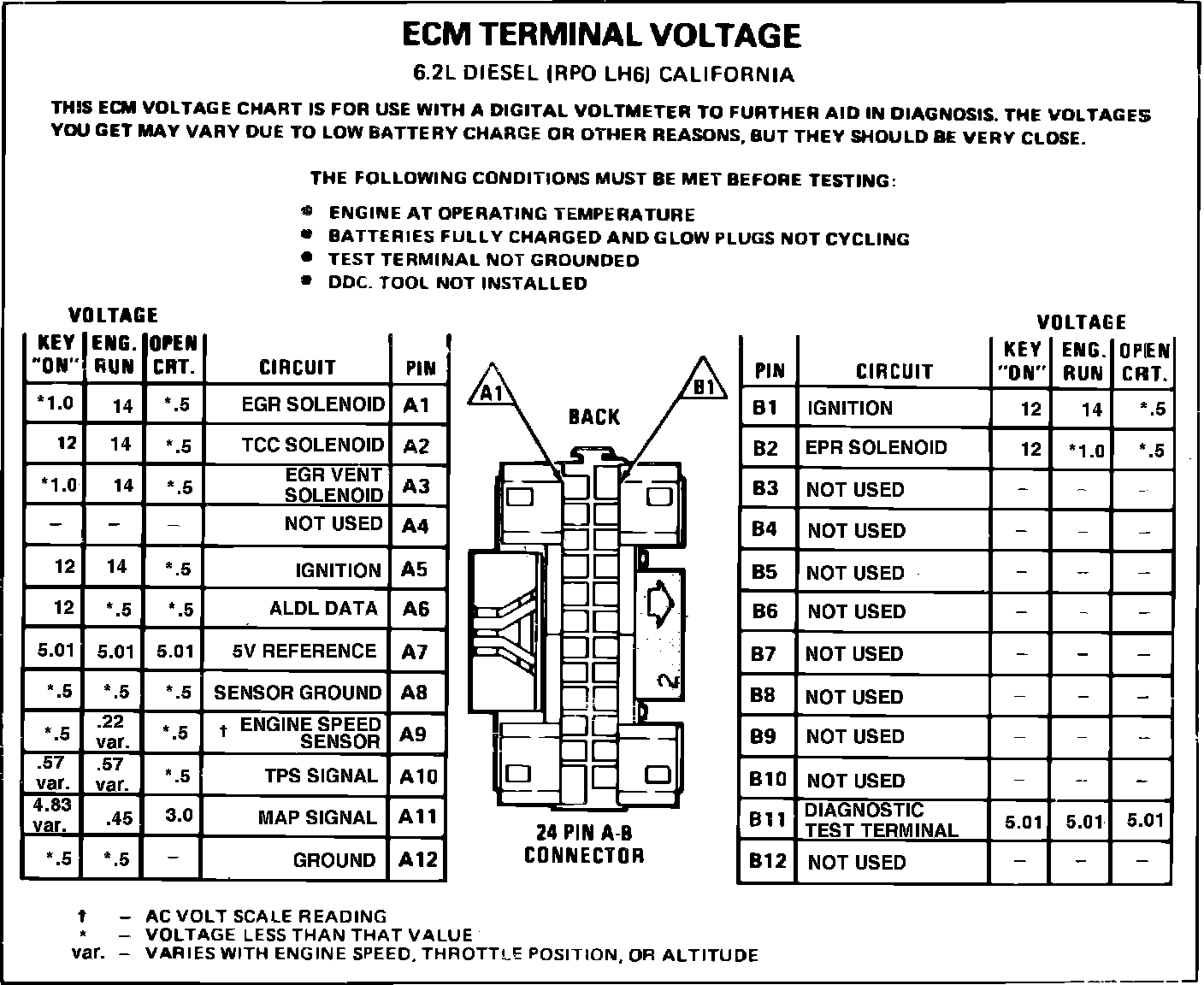

Fig. 7 ECM connector terminal identification & voltage specifications. 1984:
