Freightliner Truck
>>
2011
>>
Sprinter 3500 V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>

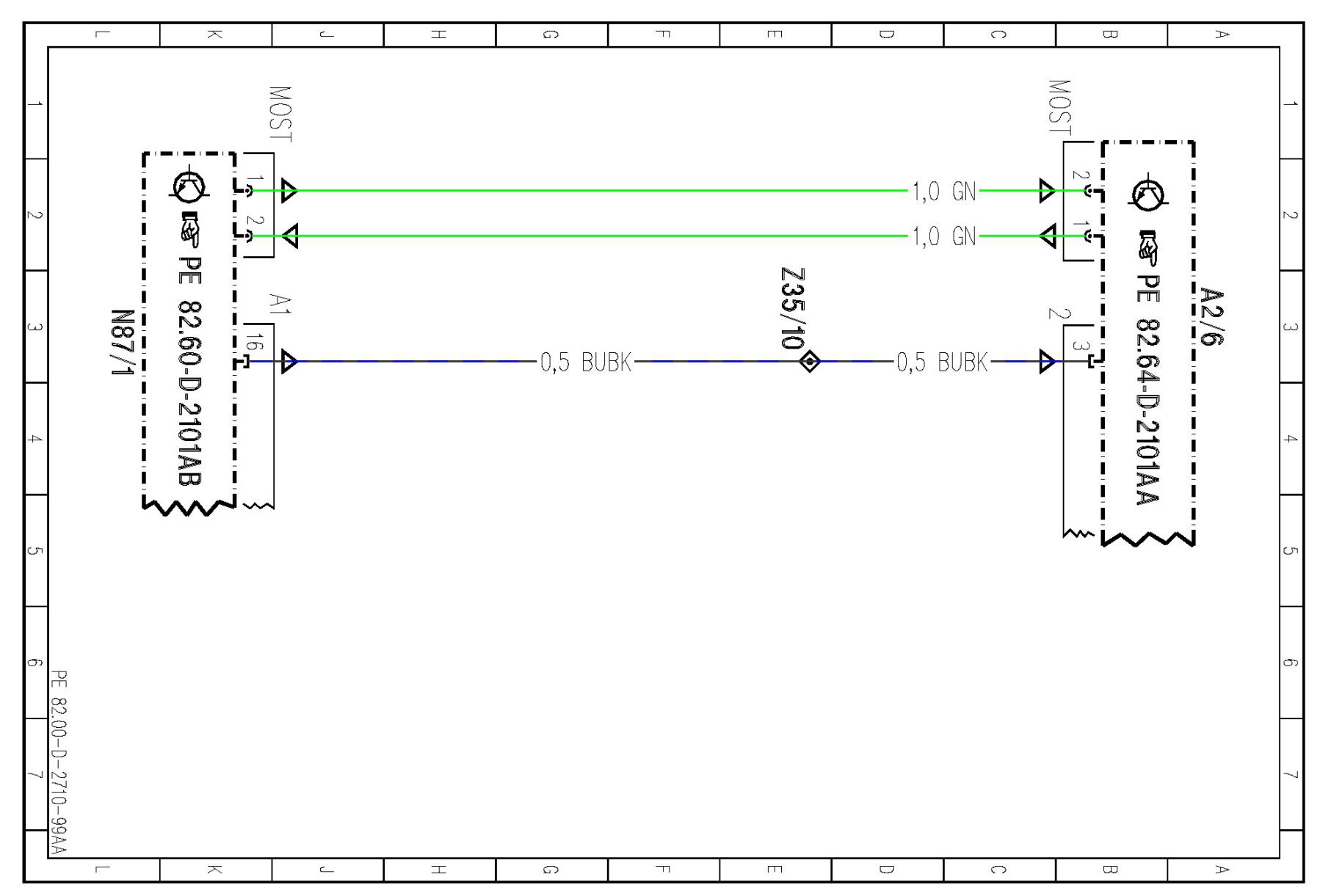

PE82.00-D-2710AA MOST Bus
PE82.00-D-2710AA MOST Bus
PE82.00-D-2710AA MOST Bus
906 82 Electrical Systems - Body
Model 906.1 /2 /6 /7
