Interior Lighting Module
Interior Lighting Module

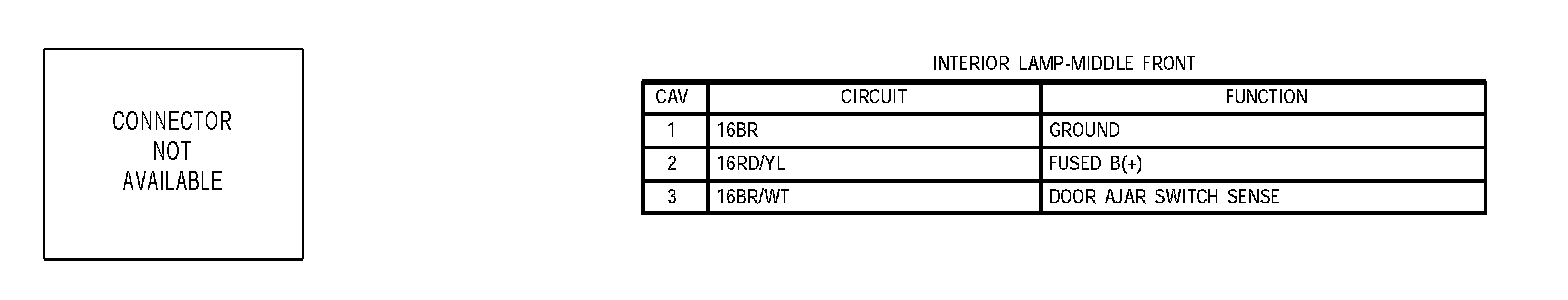

Interior Lamp Module Front:
Interior Lamp Module Rear:

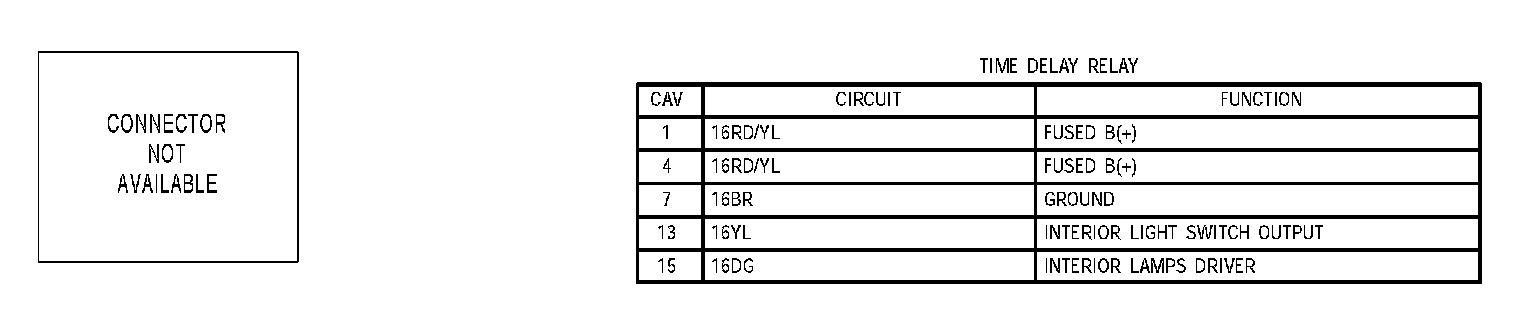

Time Delay Relay:
