Freightliner Truck
>>
2004
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Diagrams
>>
Connector Views
Connector Views

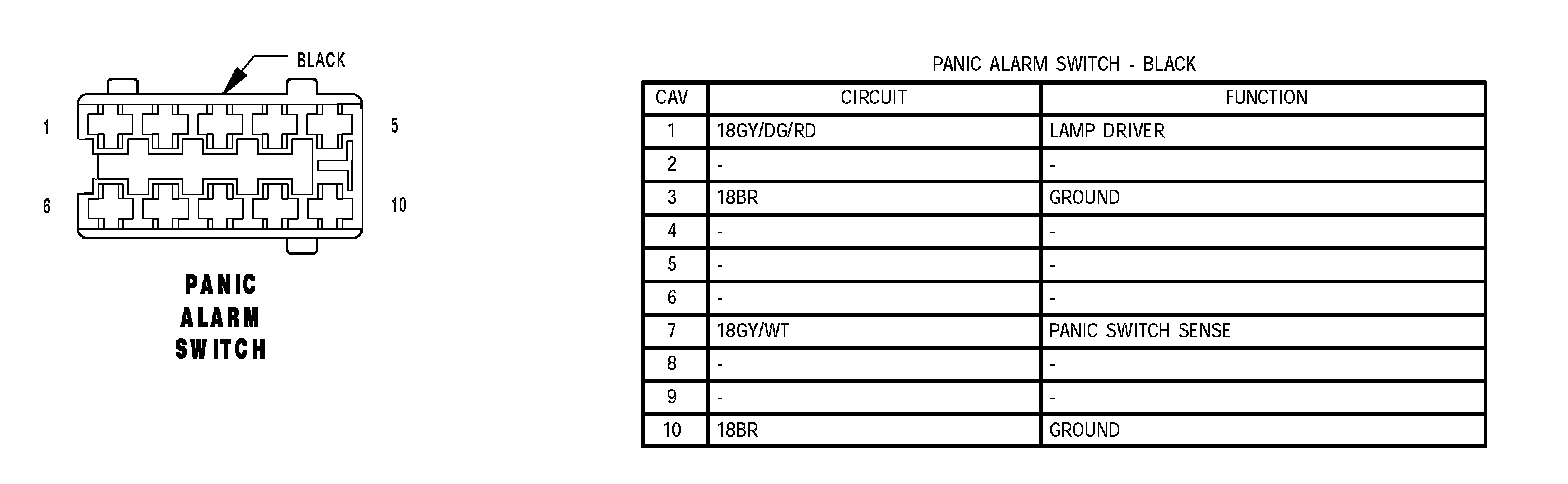

Panic Alarm Switch:

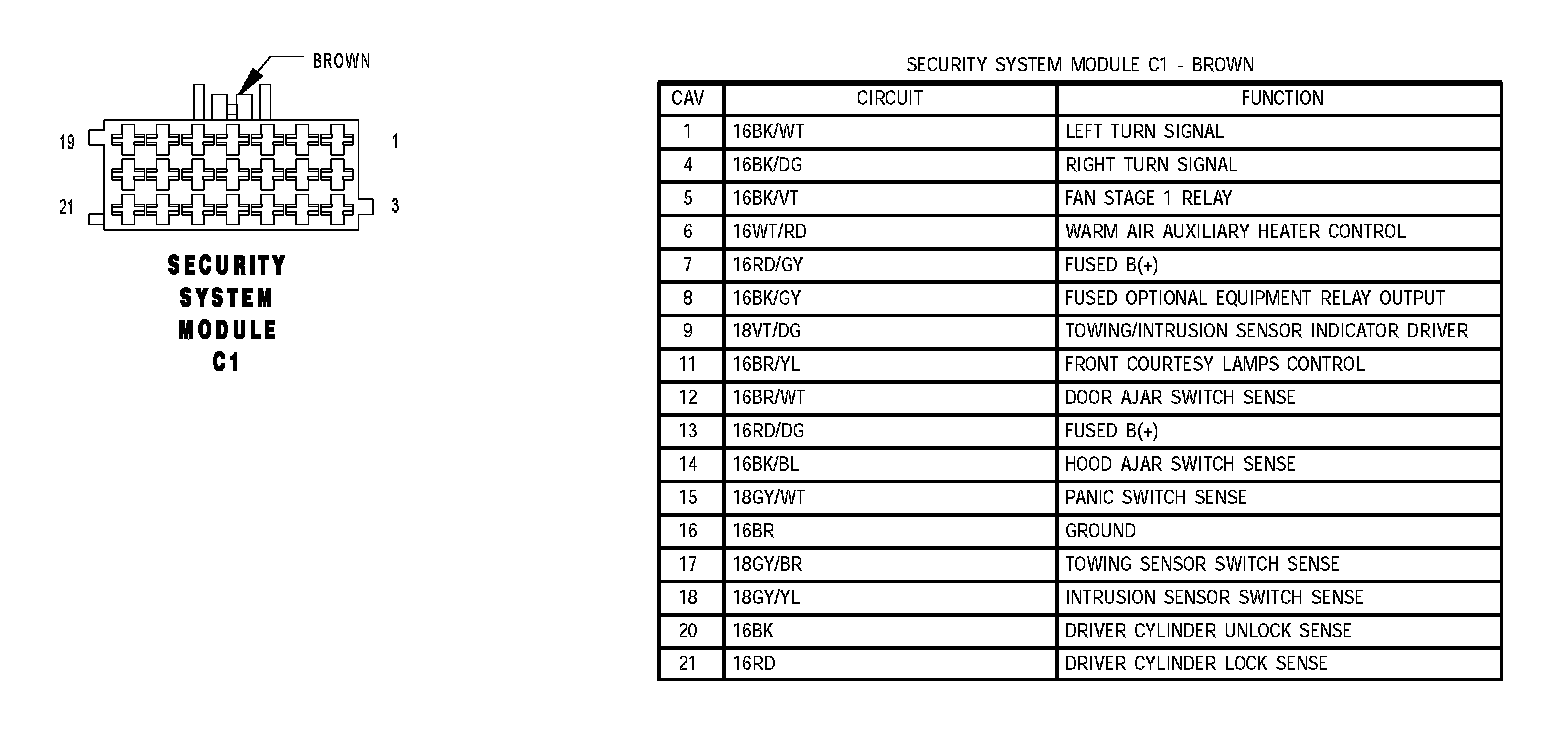

Security System Module C1:

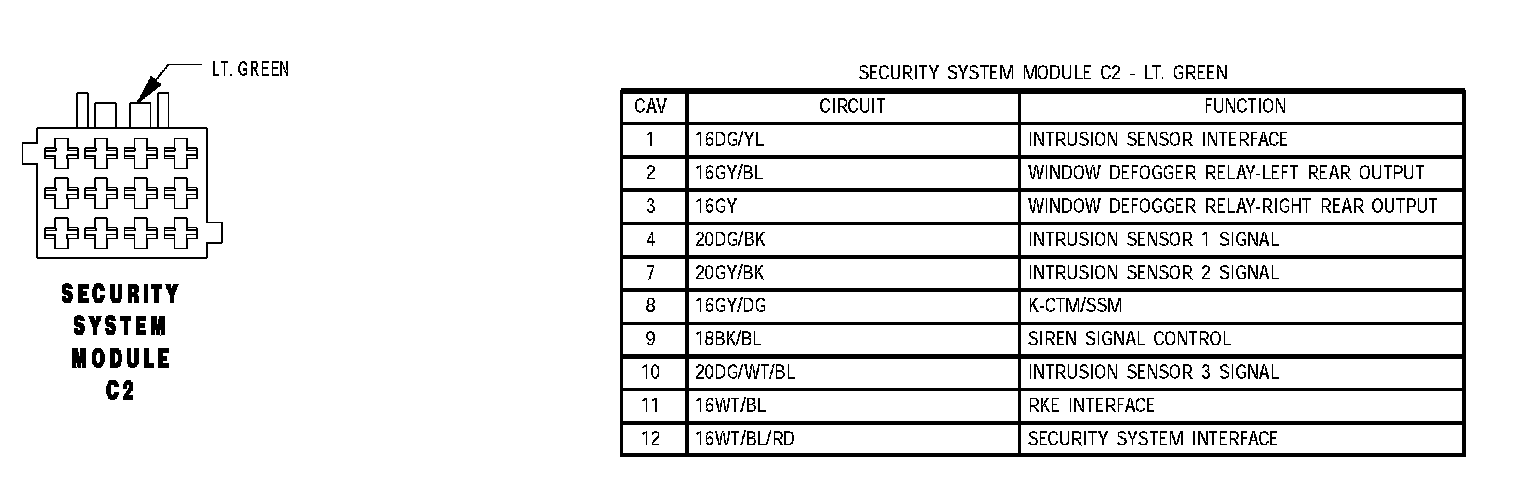

Security System Module C2:
