Home
>>
Ford
>>
2013
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Drive Motor Cooling
>>
System Diagram
>>

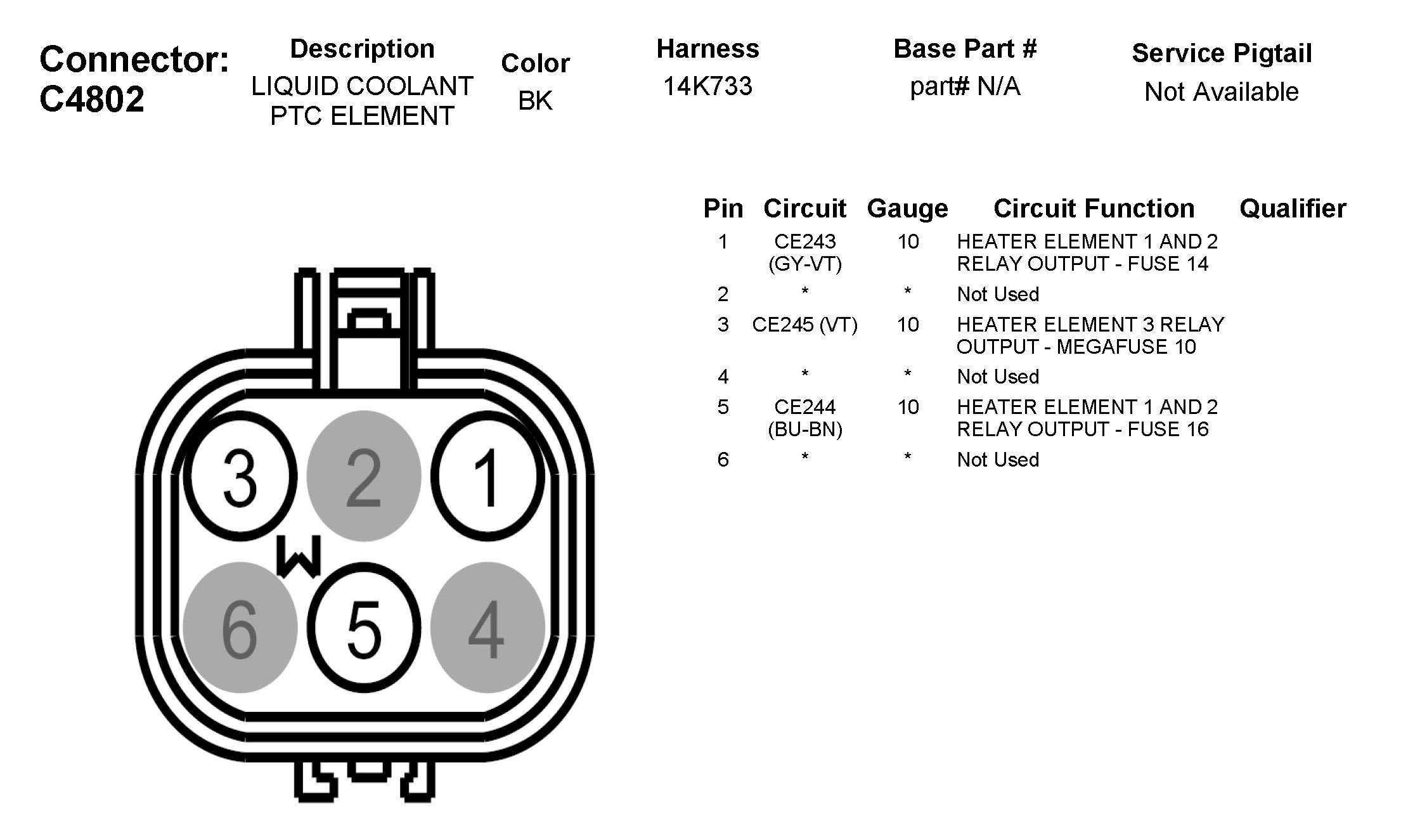

C4802 Liquid Coolant PTC Element
C4802 Liquid Coolant PTC Element
