Ford
>>
2012
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

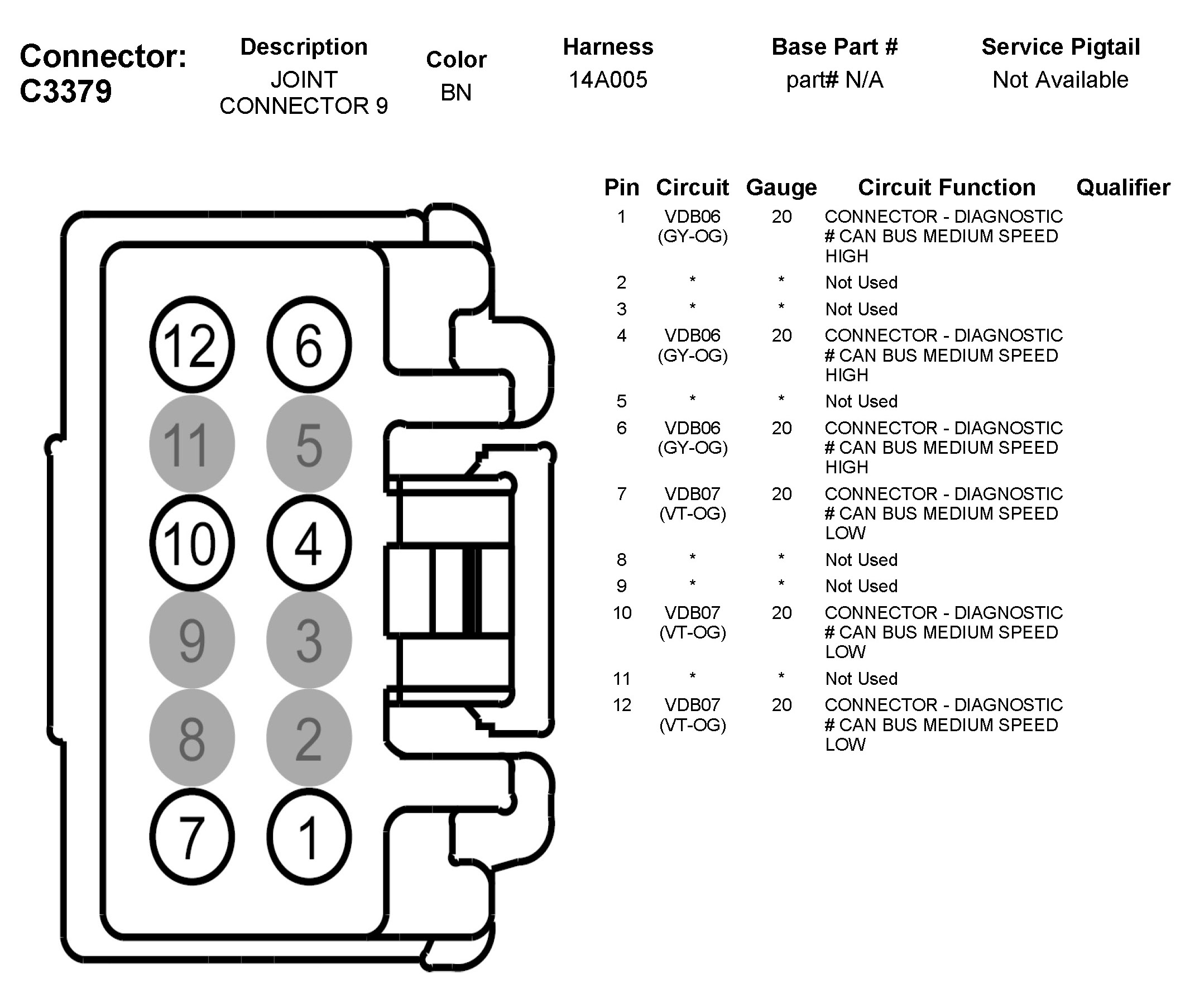

C3379 Joint Connector 9
C3379 Joint Connector 9
