Home
>>
Ford
>>
2012
>>
Mustang V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

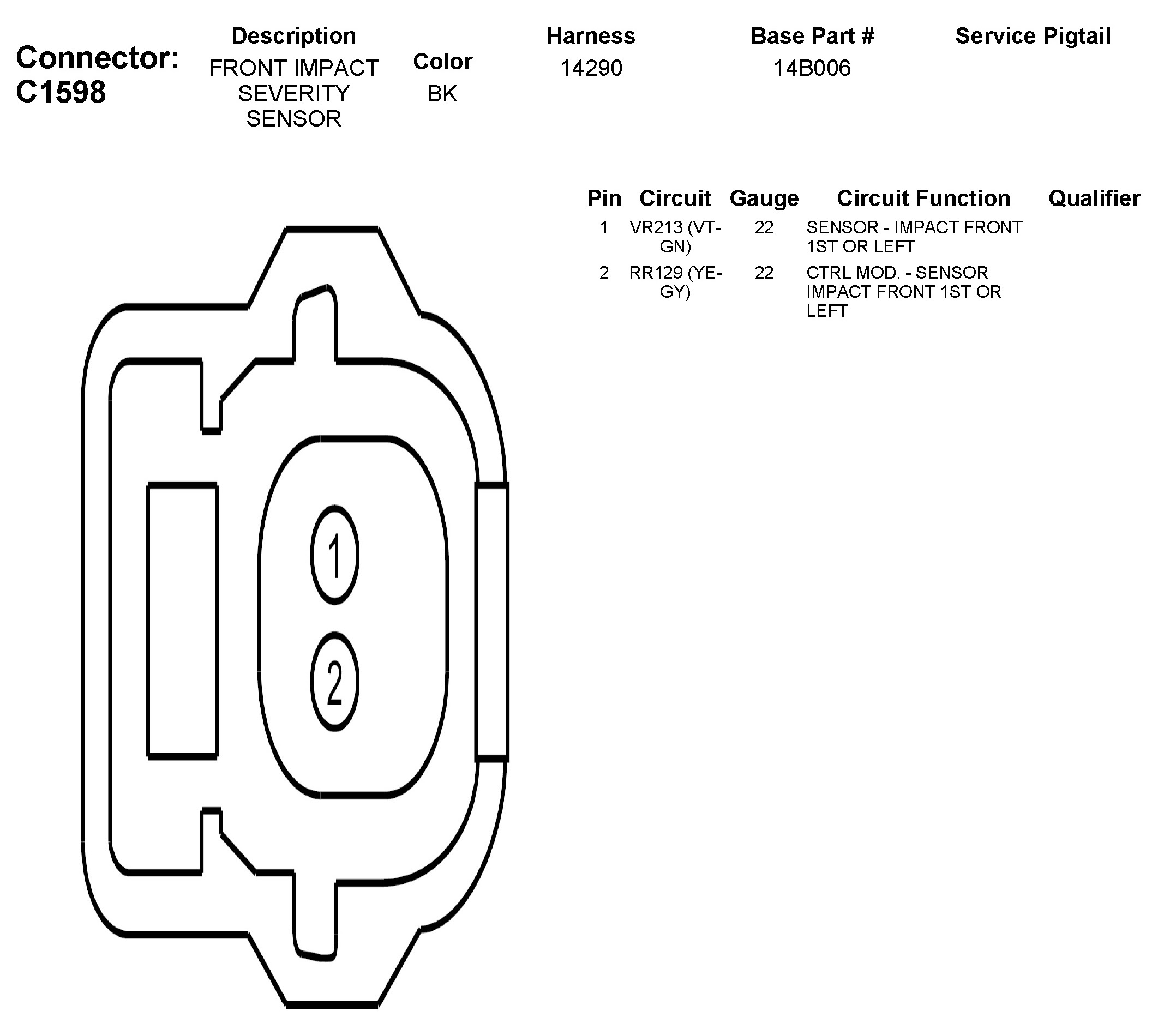

C1598 Front Impact Severity Sensor
C1598 Front Impact Severity Sensor
