All Others

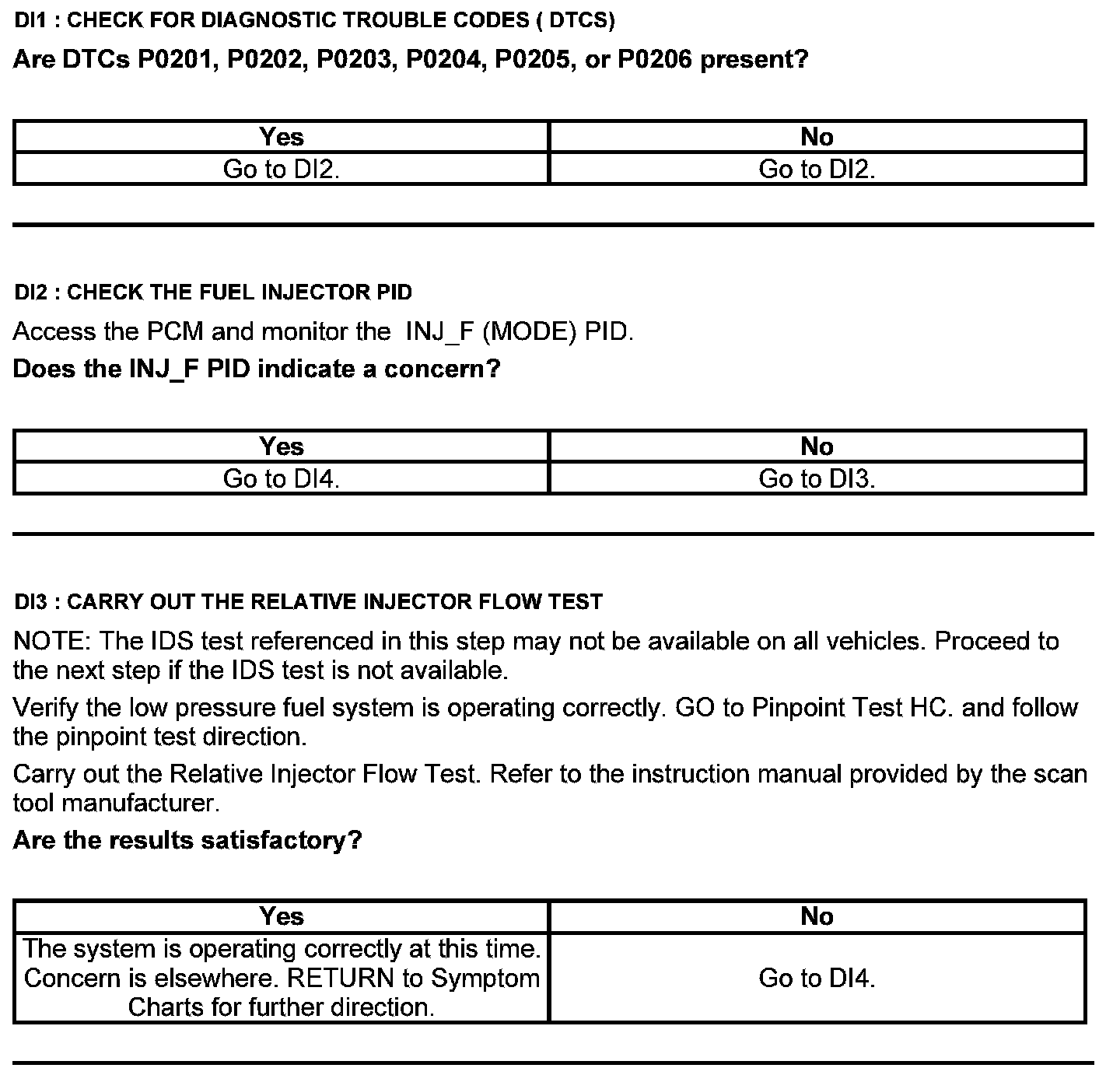

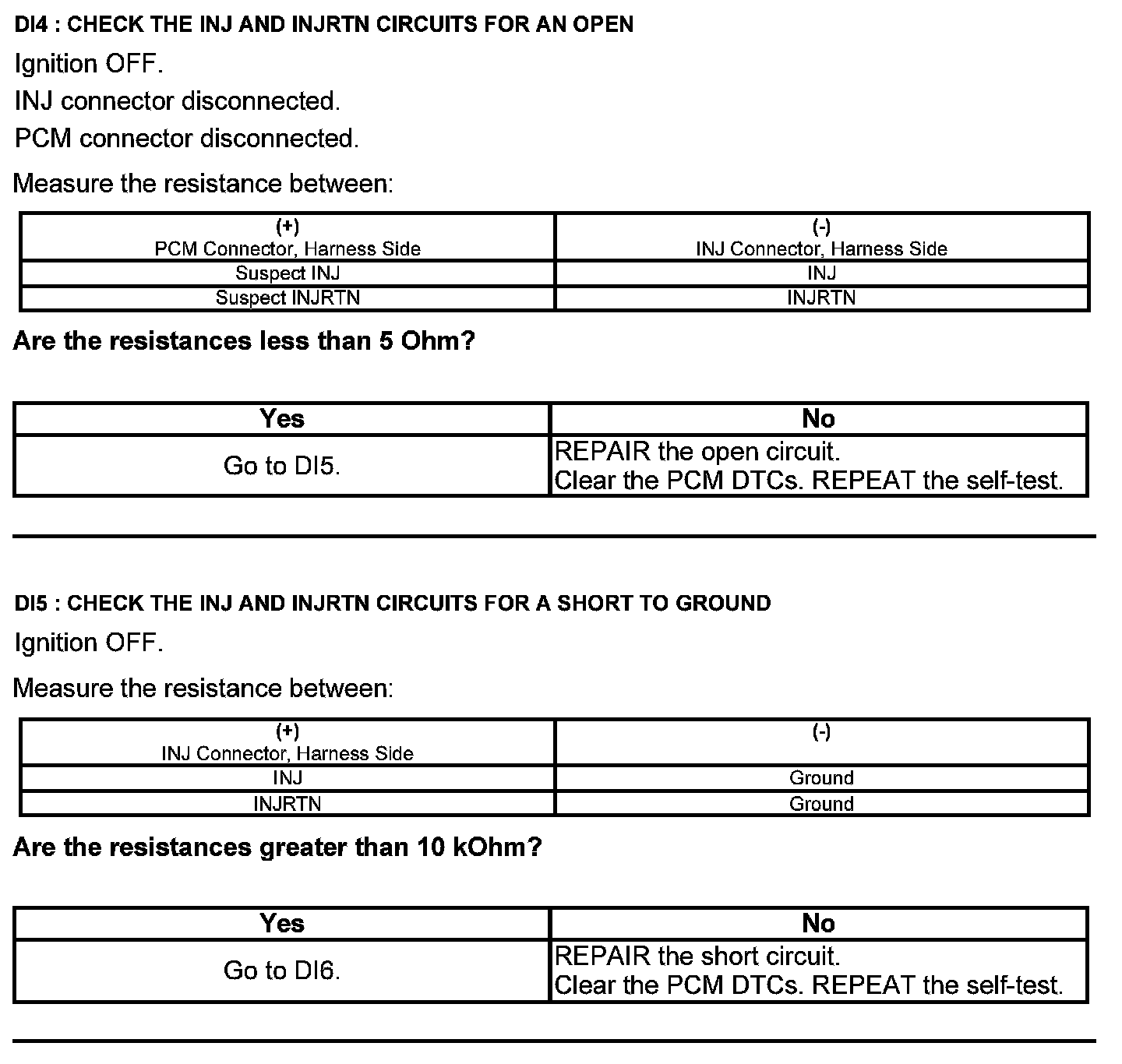

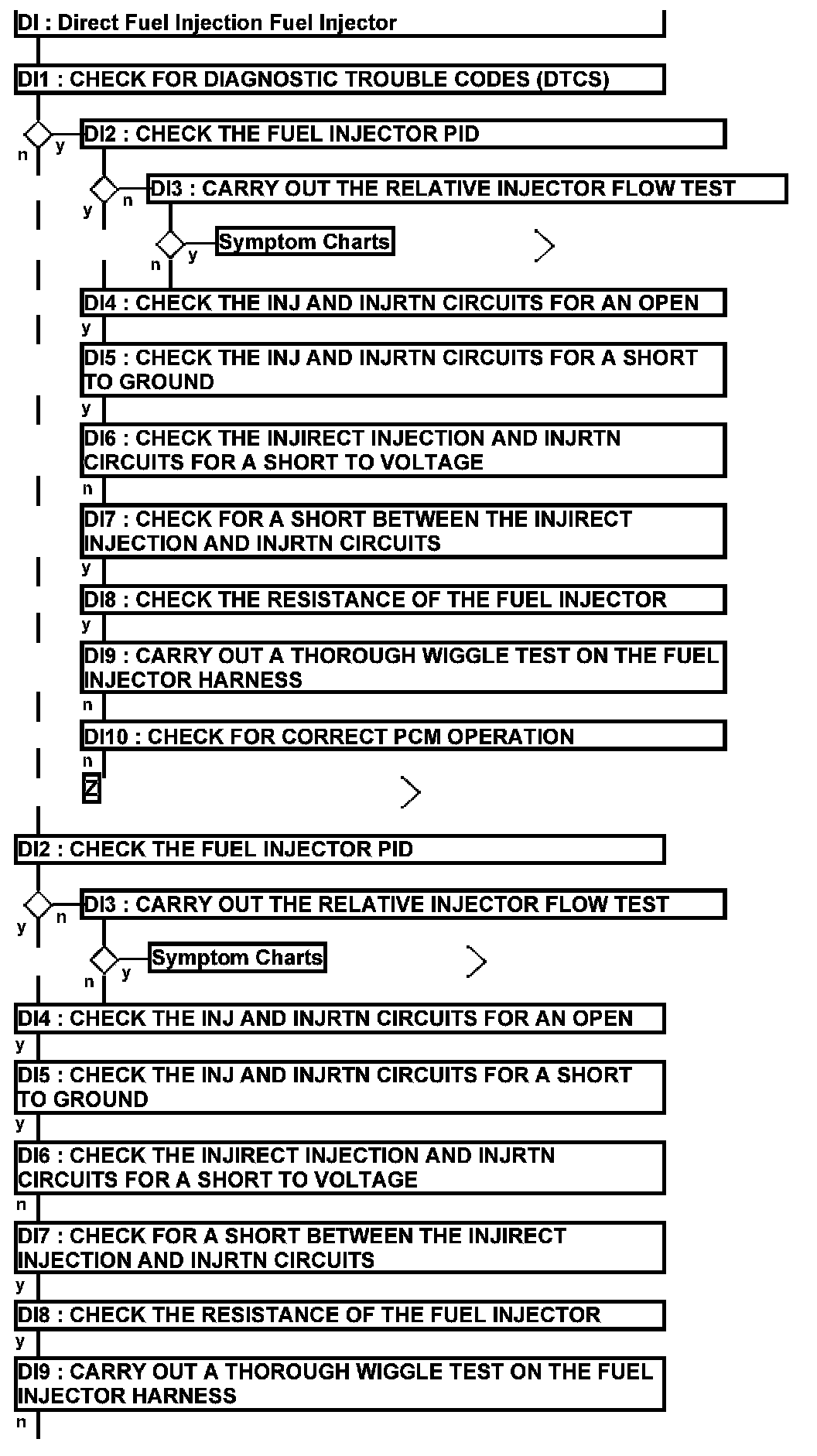

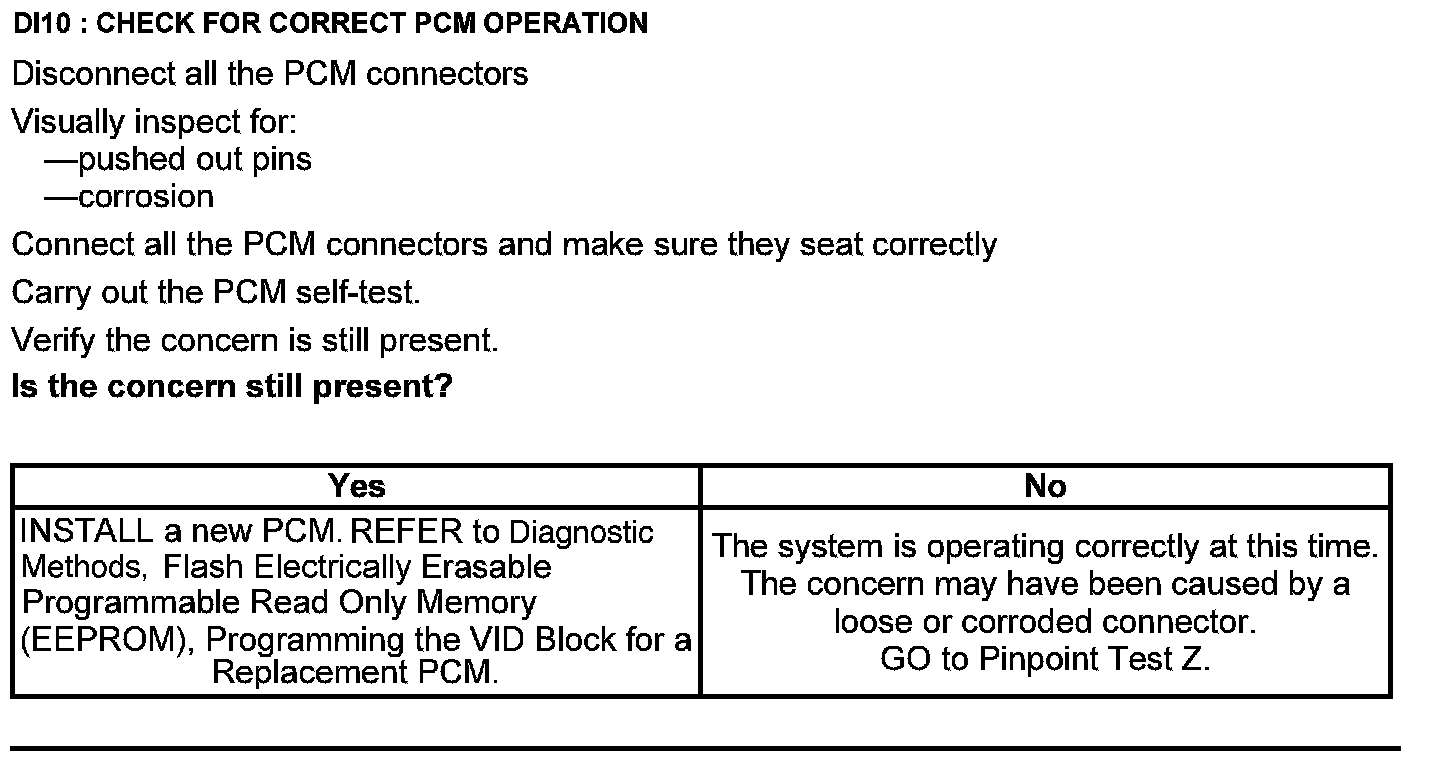

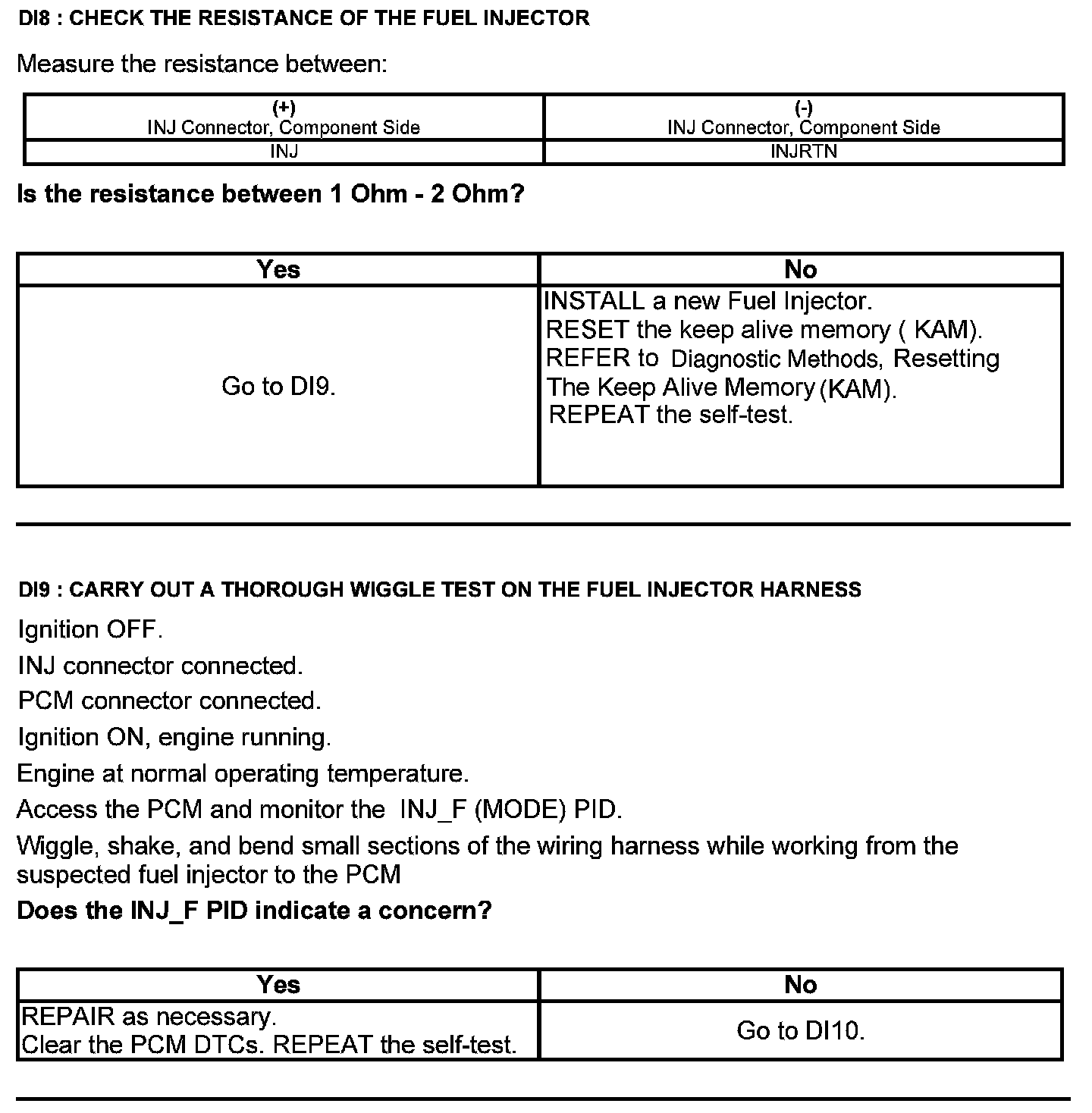

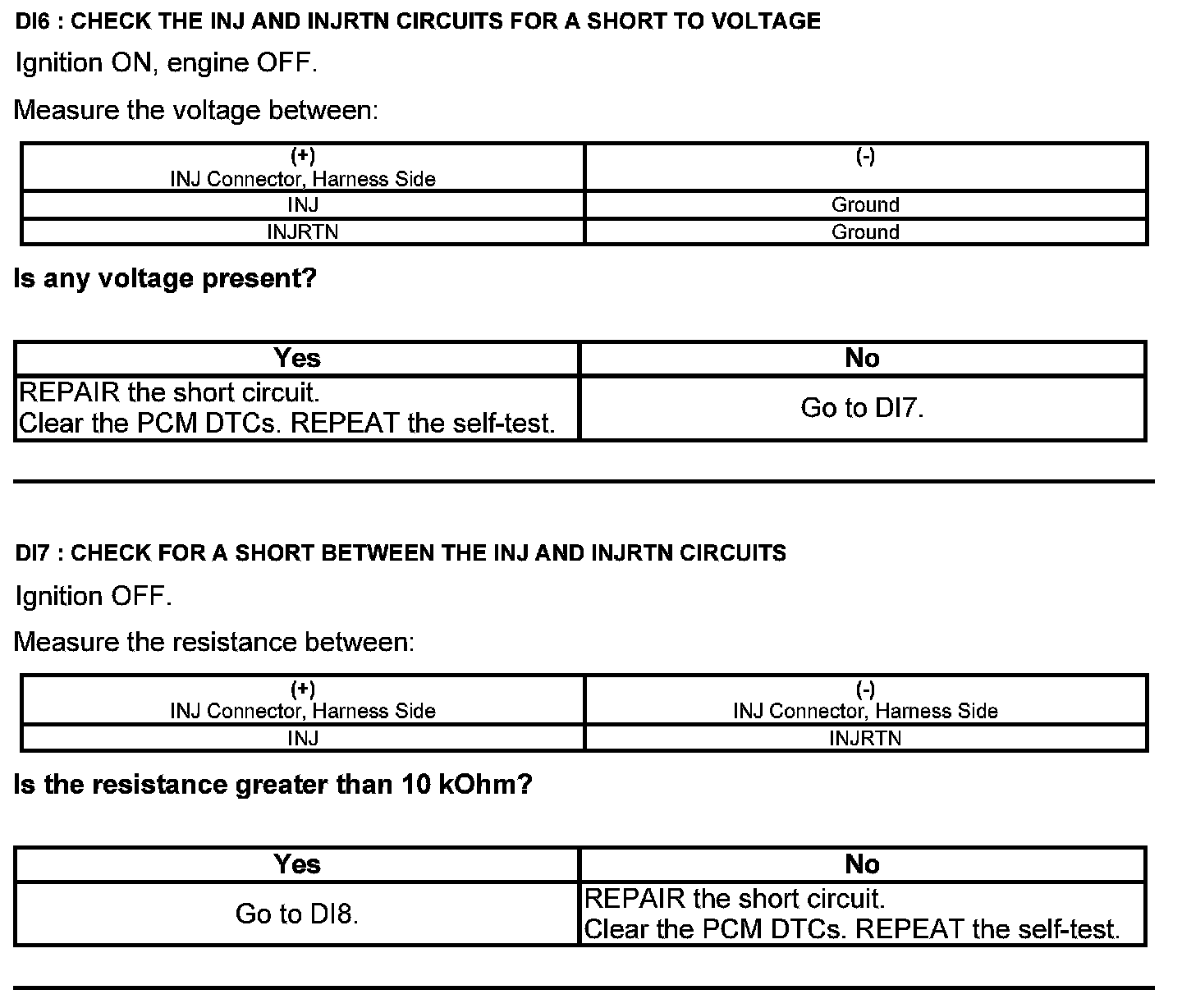

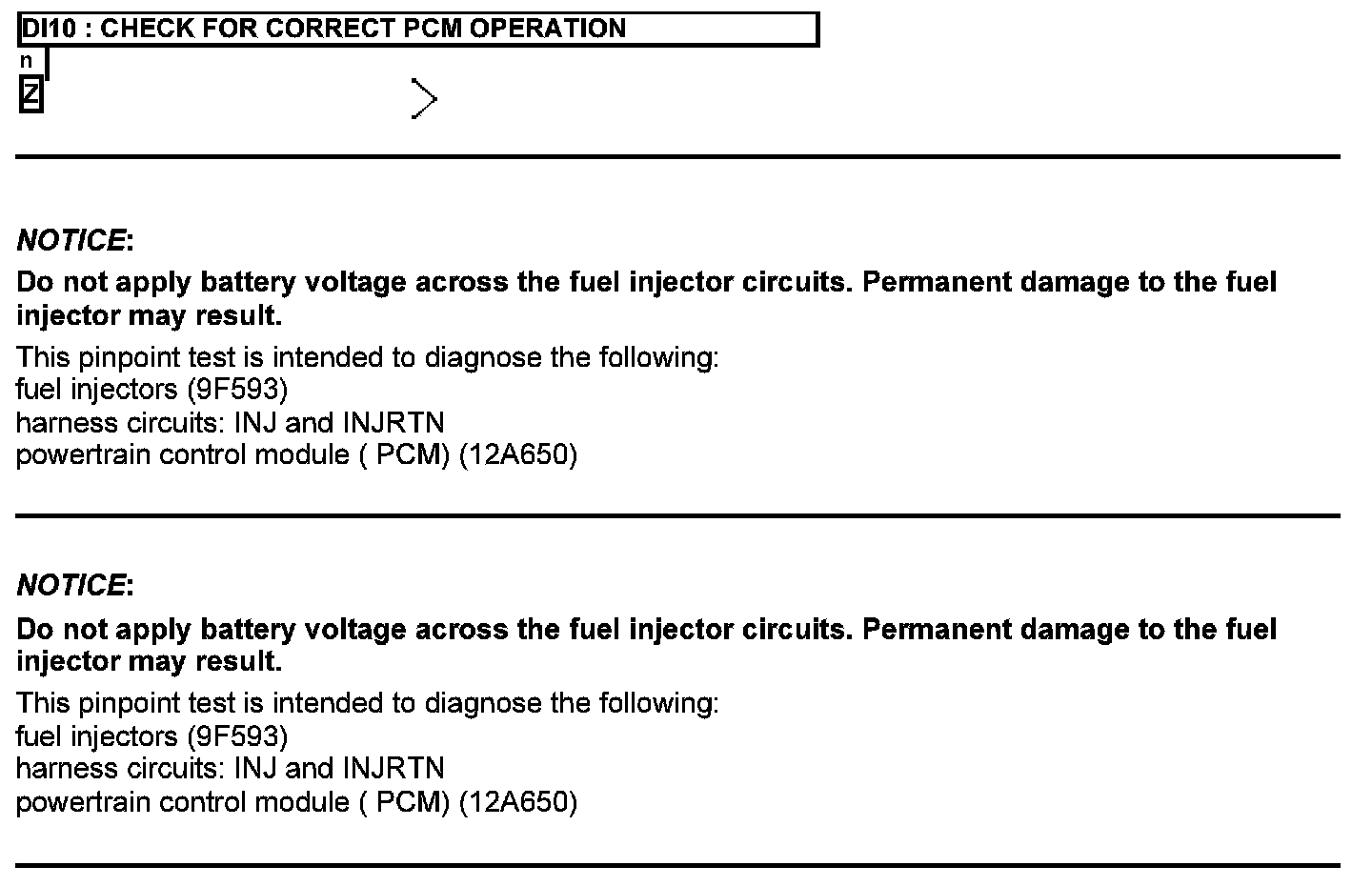

Direct Fuel Injection Fuel Injector - All Others

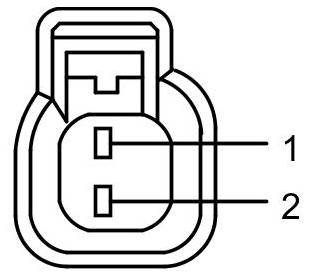

Injector (INJ) Connector





Harness Side
