Climate Control System
Climate Control System
Climate Control System
Component Tests

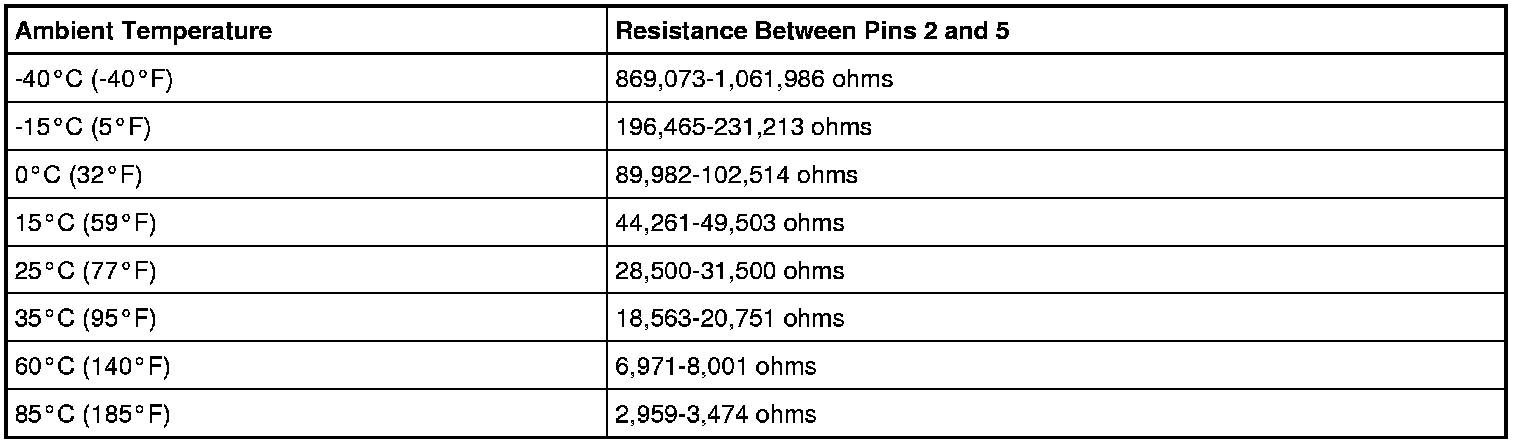

Temperature Sensor - In-Vehicle

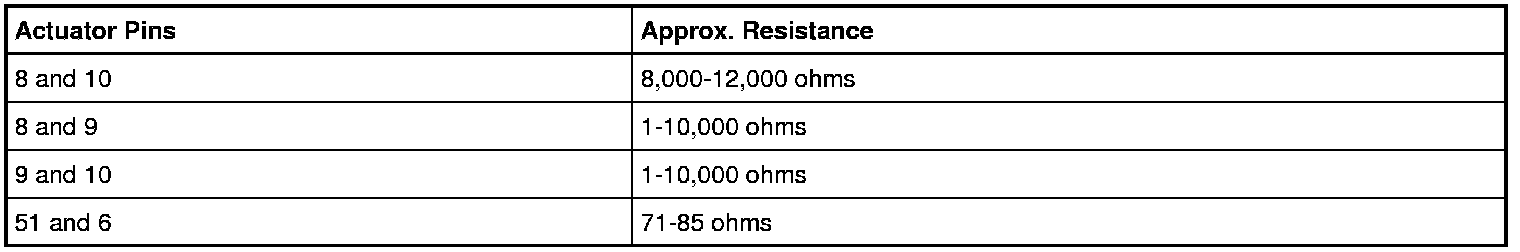

Air Inlet Mode Door Actuator
