Battery Condition Monitor, Hybrid Drive
>>

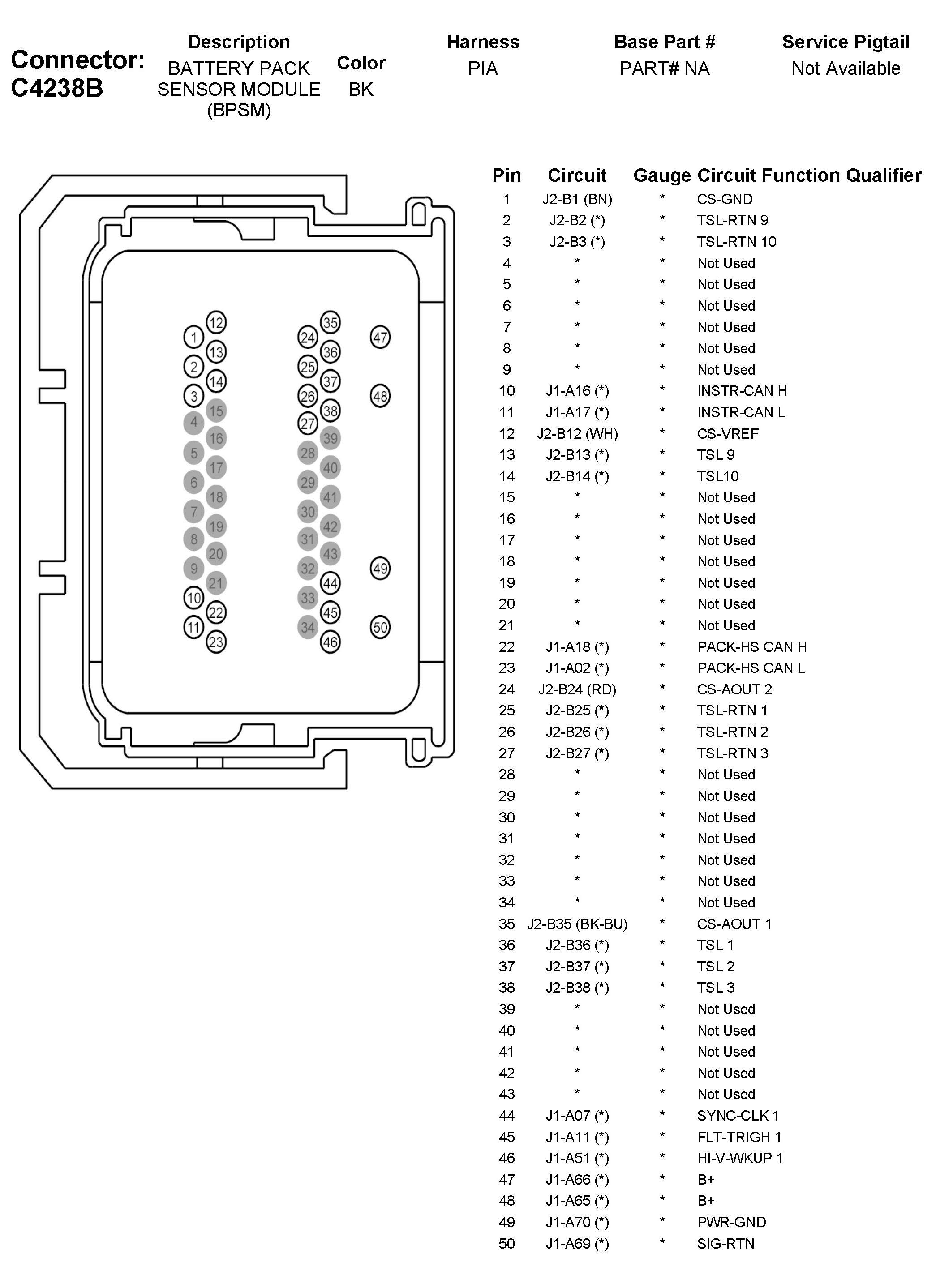

C4238B Battery Pack Sensor Module (BPSM)
C4238B Battery Pack Sensor Module (BPSM)
