Battery Condition Monitor, Hybrid Drive
>>

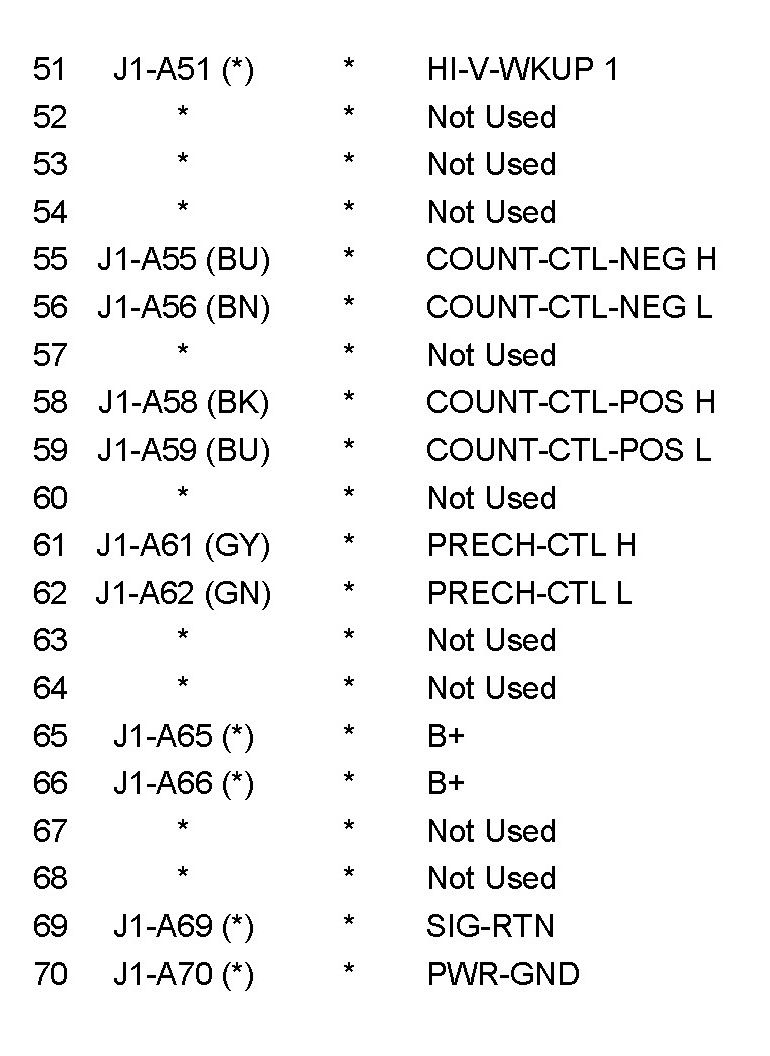

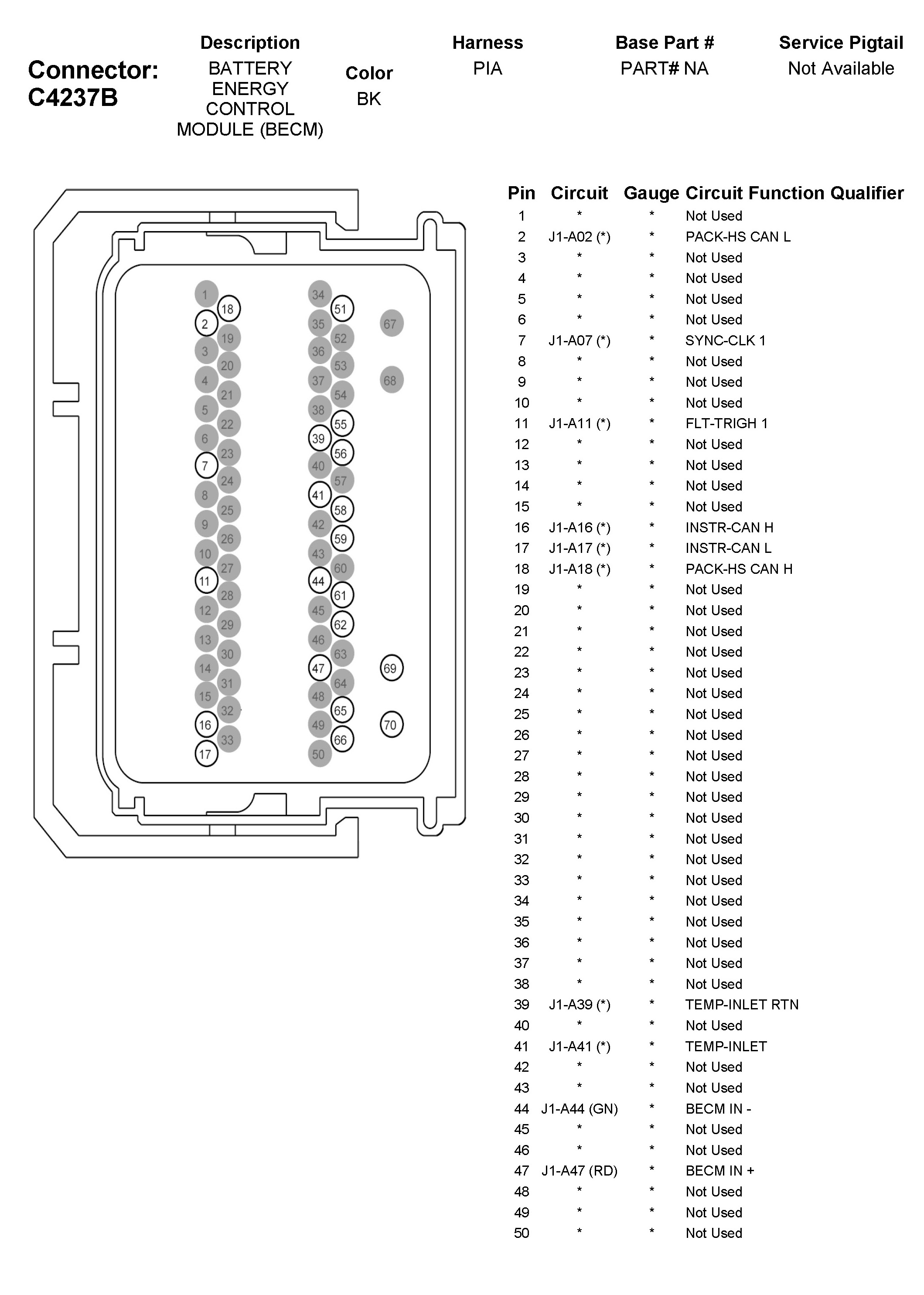

C4237B Battery Energy Control Module (BECM)
C4237B Battery Energy Control Module (BECM)
