Home
>>
Ford
>>
2012
>>
Fusion FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Battery Condition Monitor, Hybrid Drive
>>

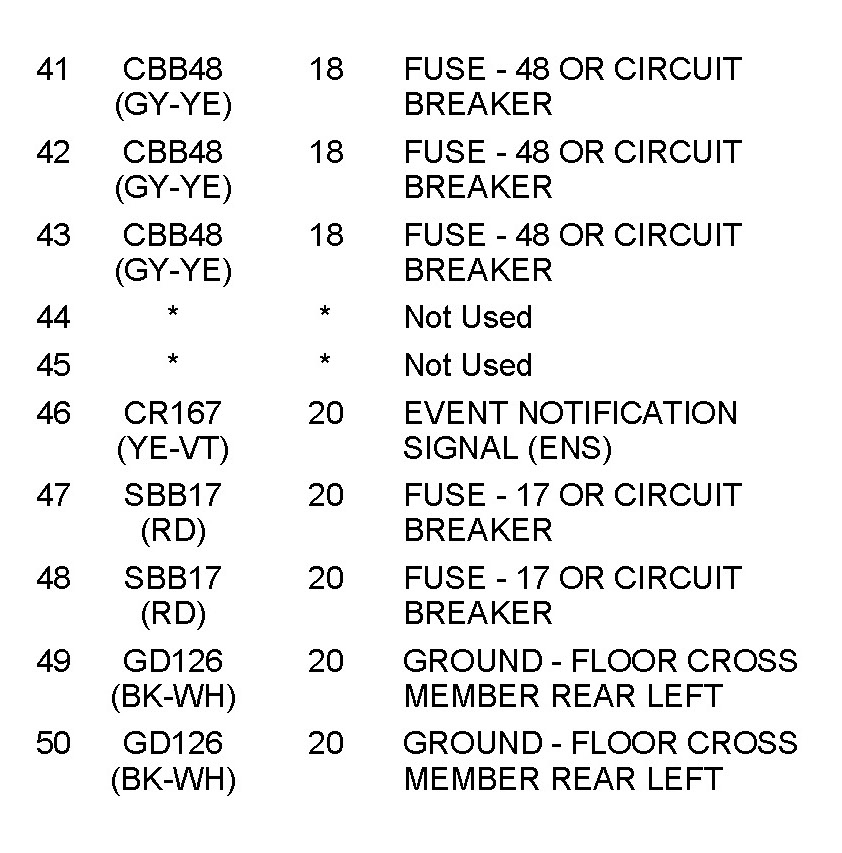

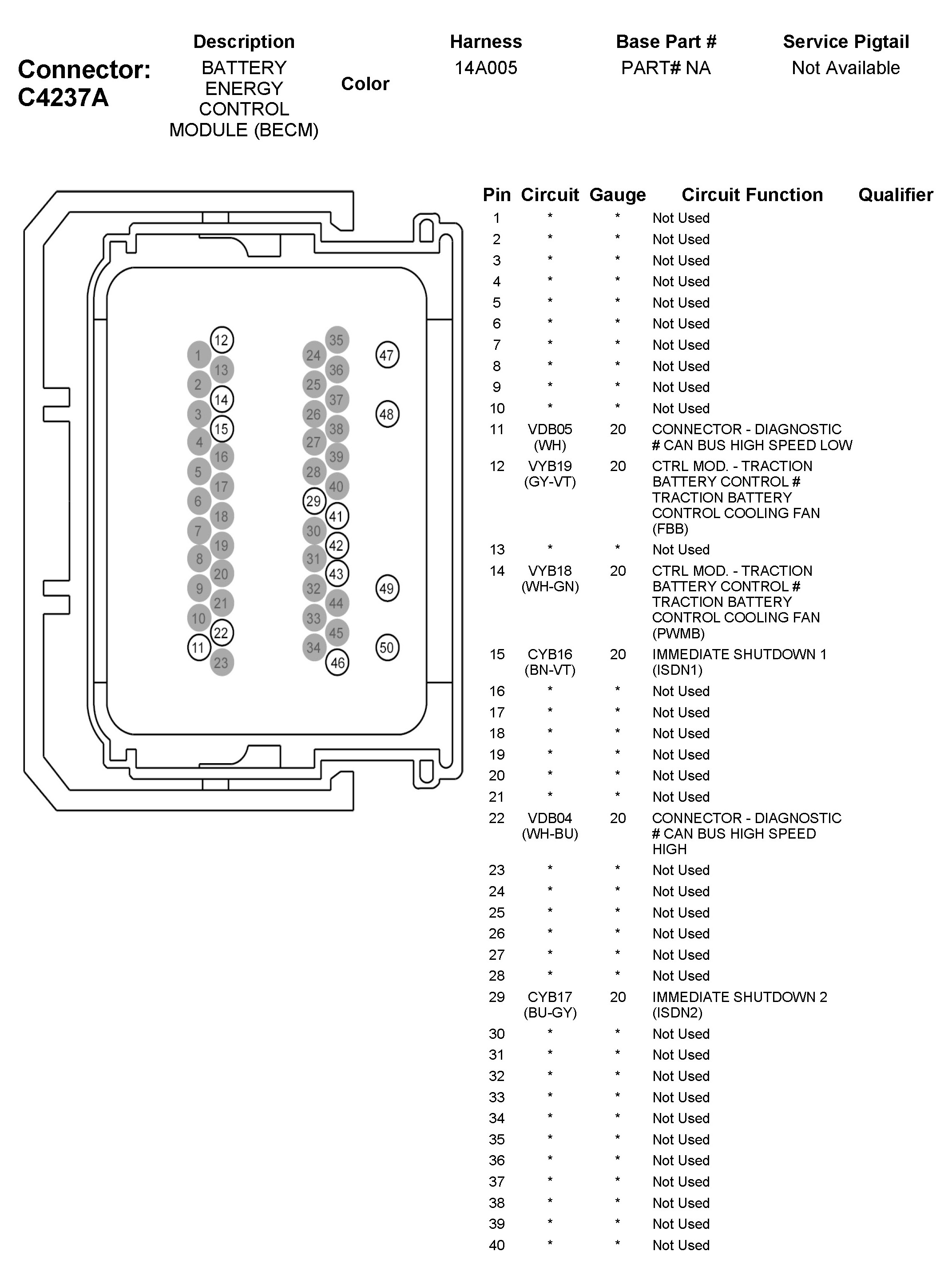

C4237A Battery Energy Control Module (BECM)
C4237A Battery Energy Control Module (BECM)
