Home
>>
Ford
>>
2012
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
System Diagram
>>

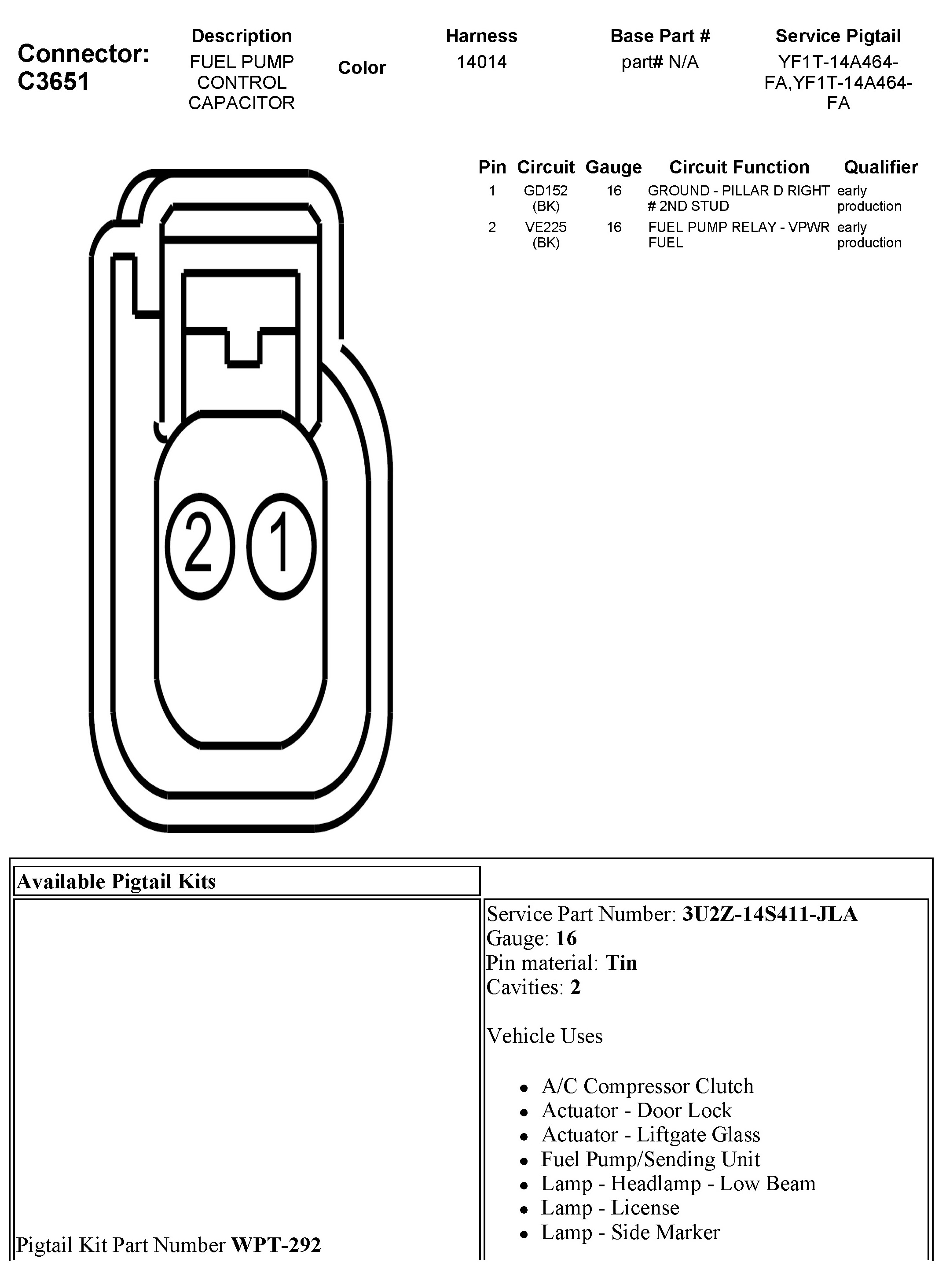

C3651 Fuel Pump Control Capacitor
C3651 Fuel Pump Control Capacitor
