Home
>>
Ford
>>
2012
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Relays and Modules - Starting and Charging
>>
Battery Control Module
>>
Diagrams
>>

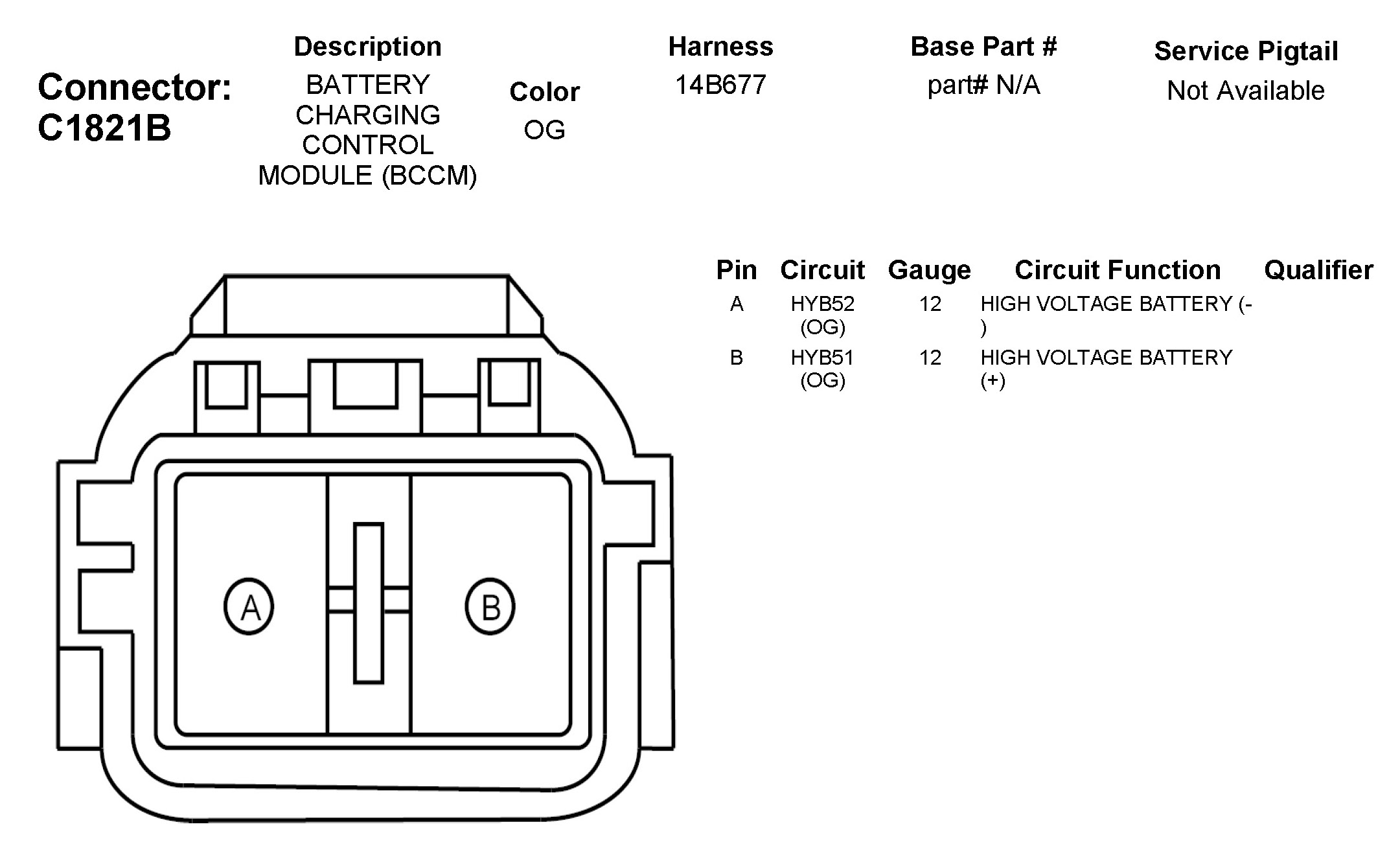

C1821B Battery Charging Control Module (BCCM)
C1821B Battery Charging Control Module (BCCM)
