Home
>>
Ford
>>
2012
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Electric Drive Systems
>>
Transmission
>>
Diagrams
>>
Connector Views
>>

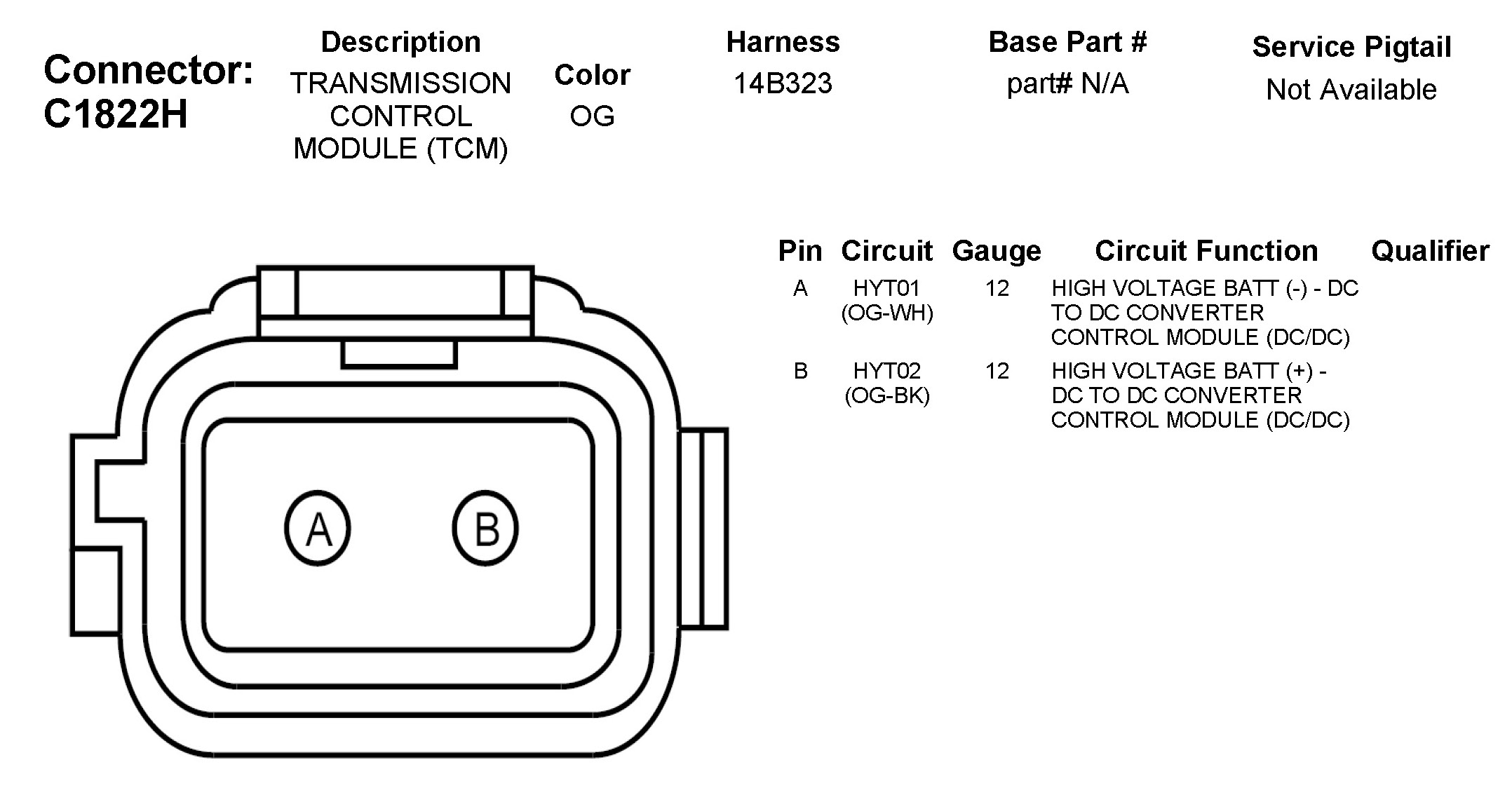

C1822H Transmission Control Module (TCM)
C1822H Transmission Control Module (TCM)
