Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

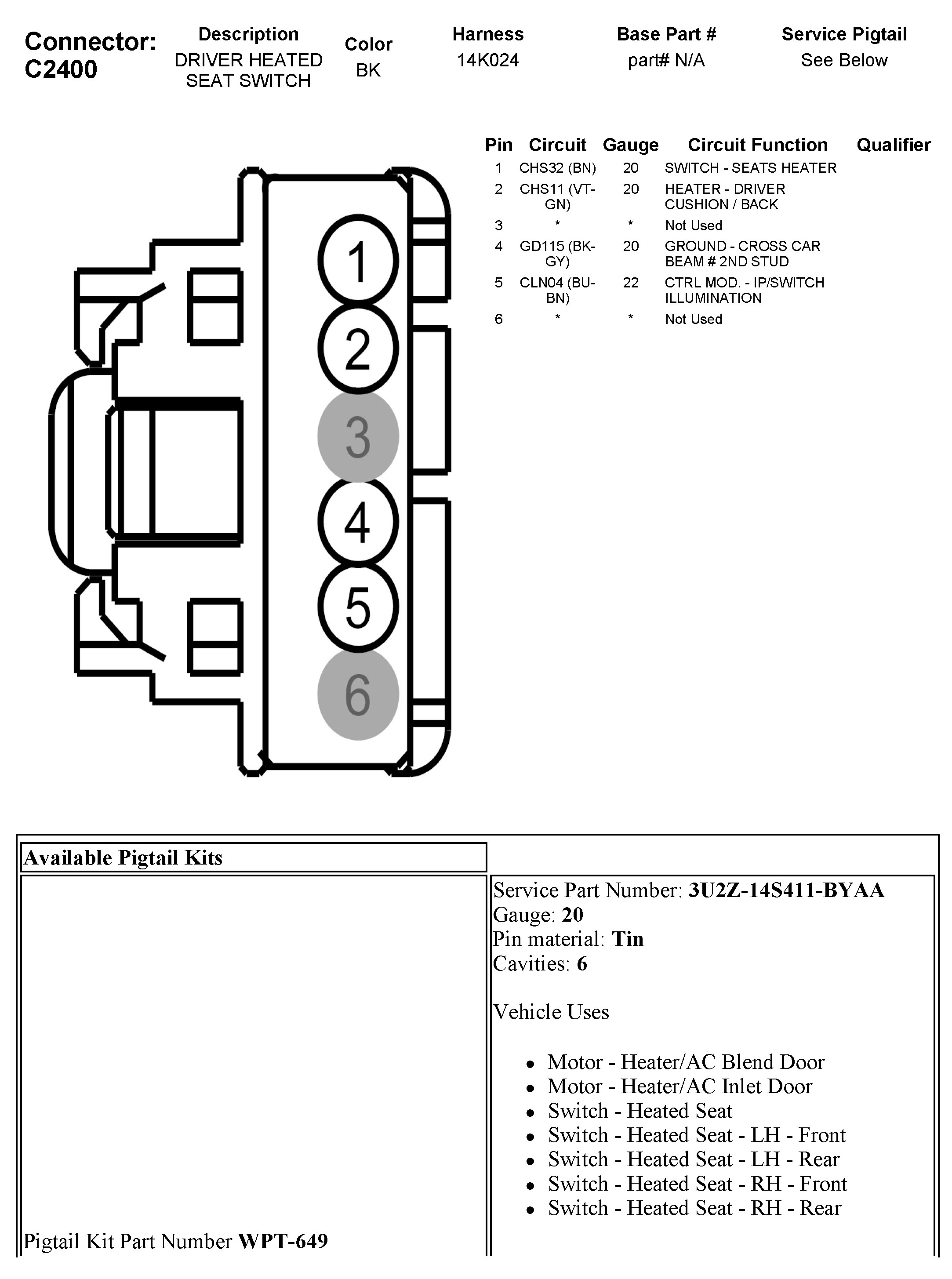

C2400 Driver Heated Seat Switch
C2400 Driver Heated Seat Switch
