Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

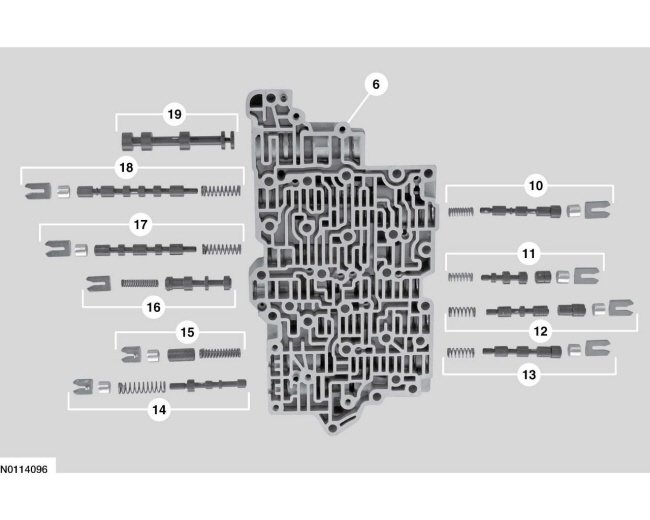

Main Control Valve Body

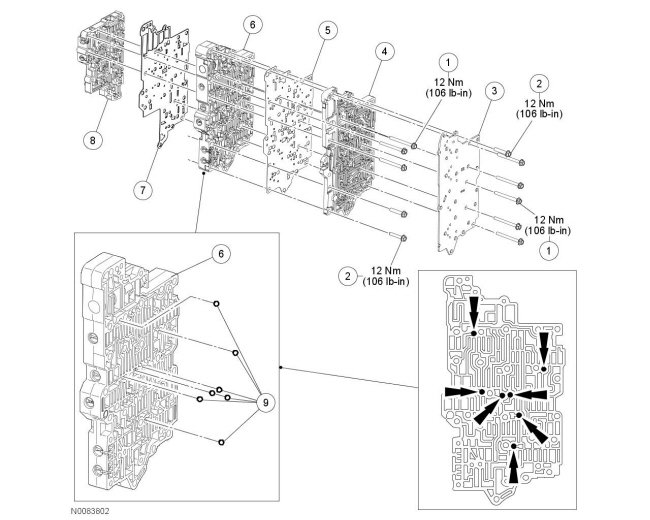

Valve Body

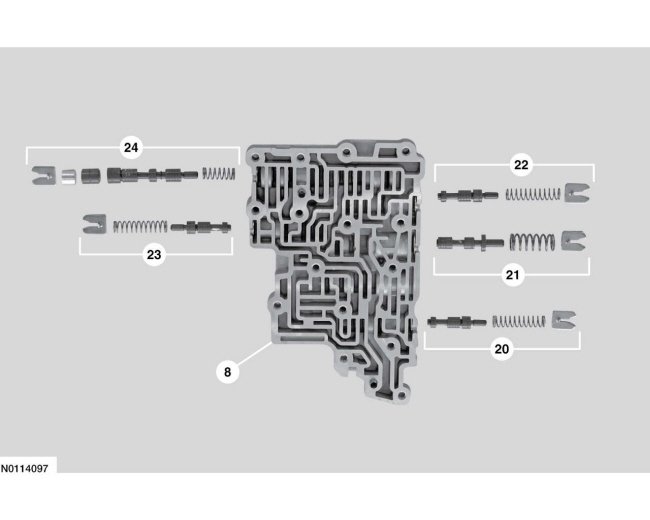

Lower Valve Body
