Home
>>
Ford
>>
2011
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

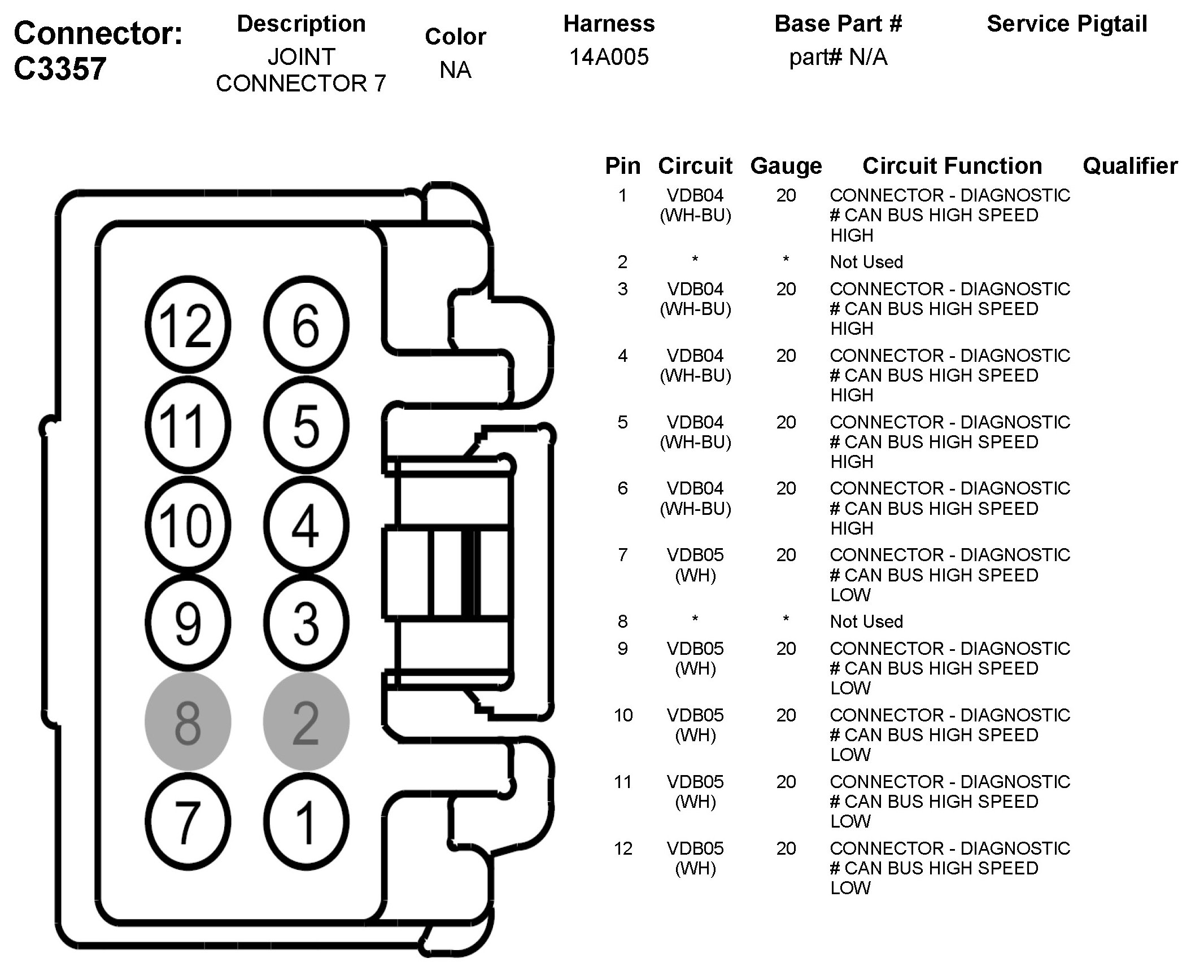

C3357 Joint Connector 7
C3357 Joint Connector 7
