Home
>>
Ford
>>
2011
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
>>

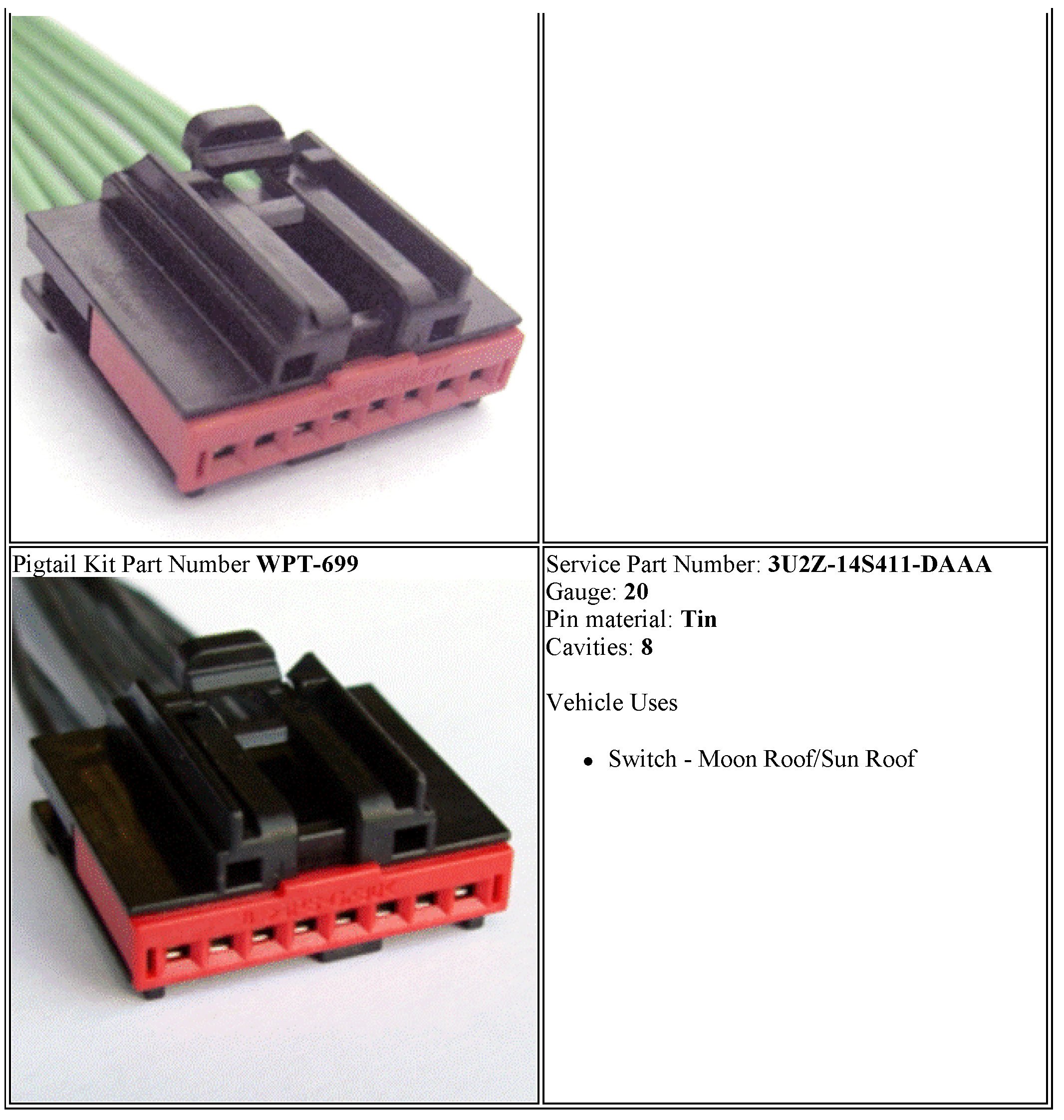

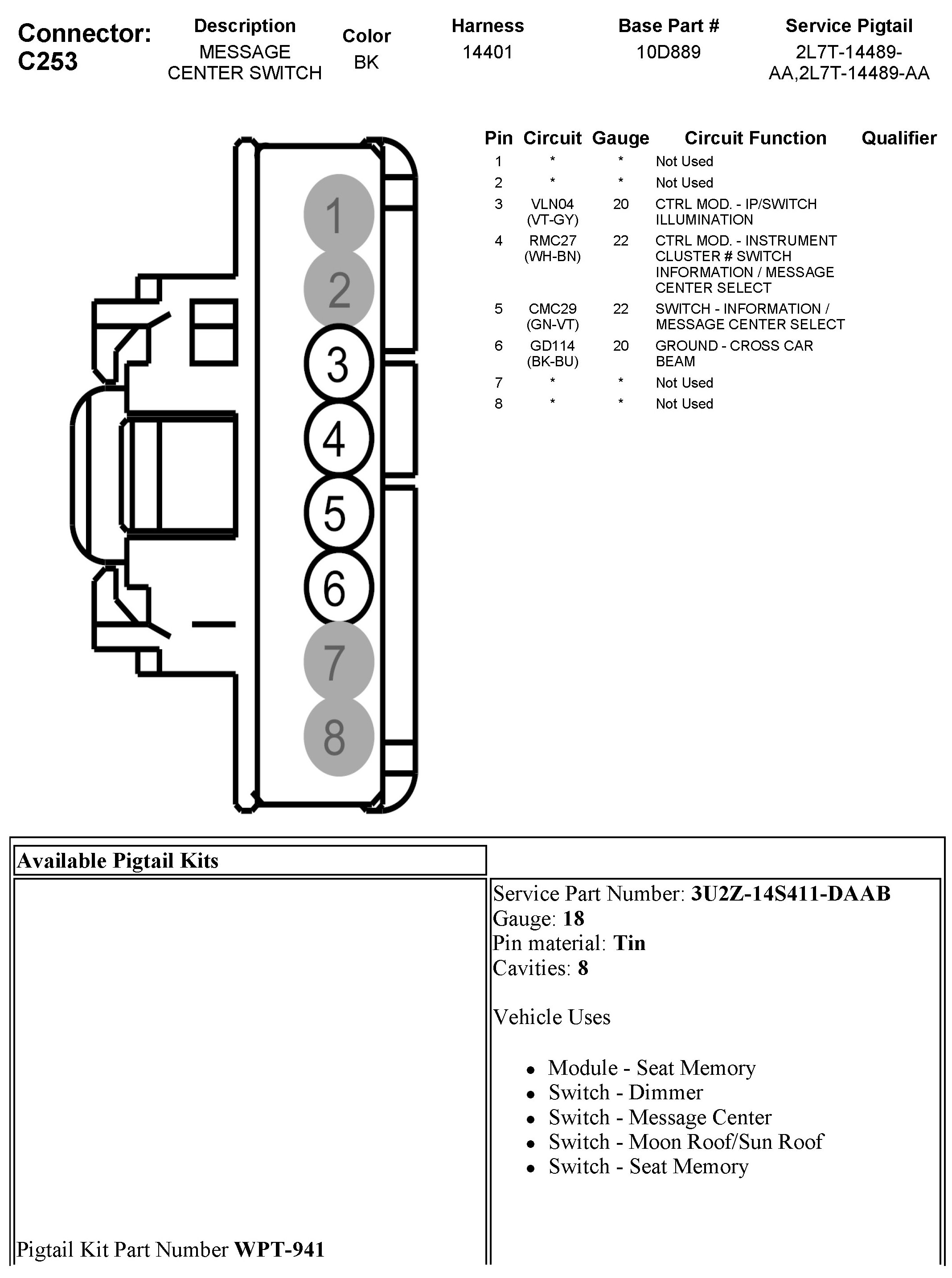

C253 Message Center Switch
C253 Message Center Switch
