Parking Brake System
>>
System Diagram
System Diagram
Parking Brake - Exploded View

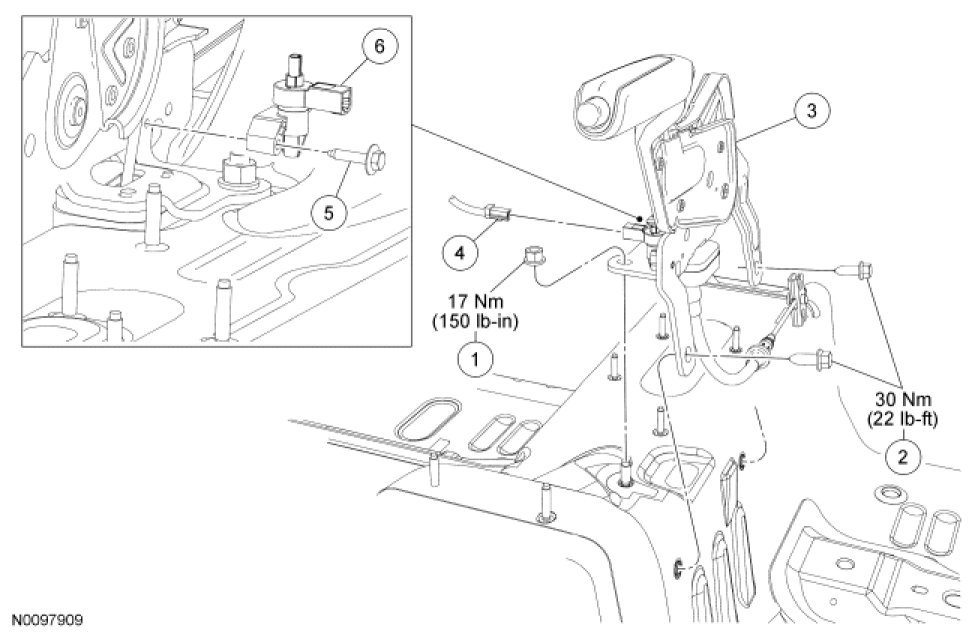

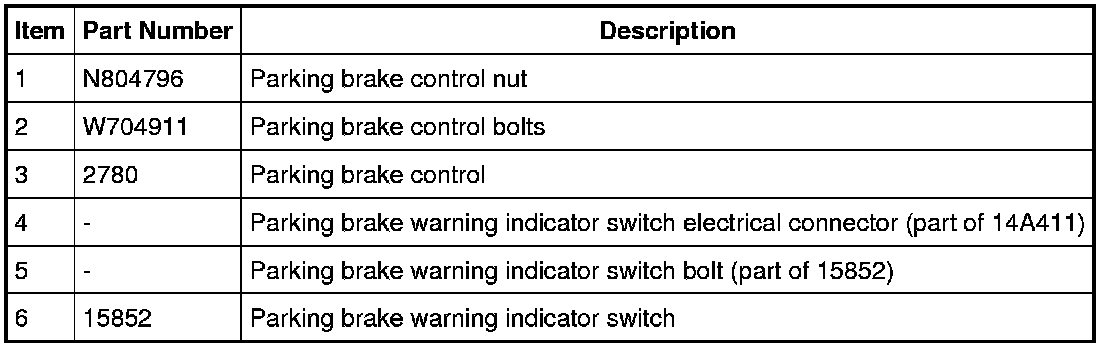

Parking Brake Control

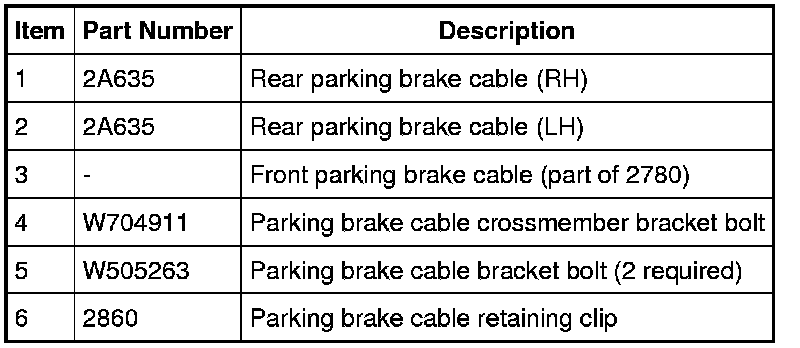

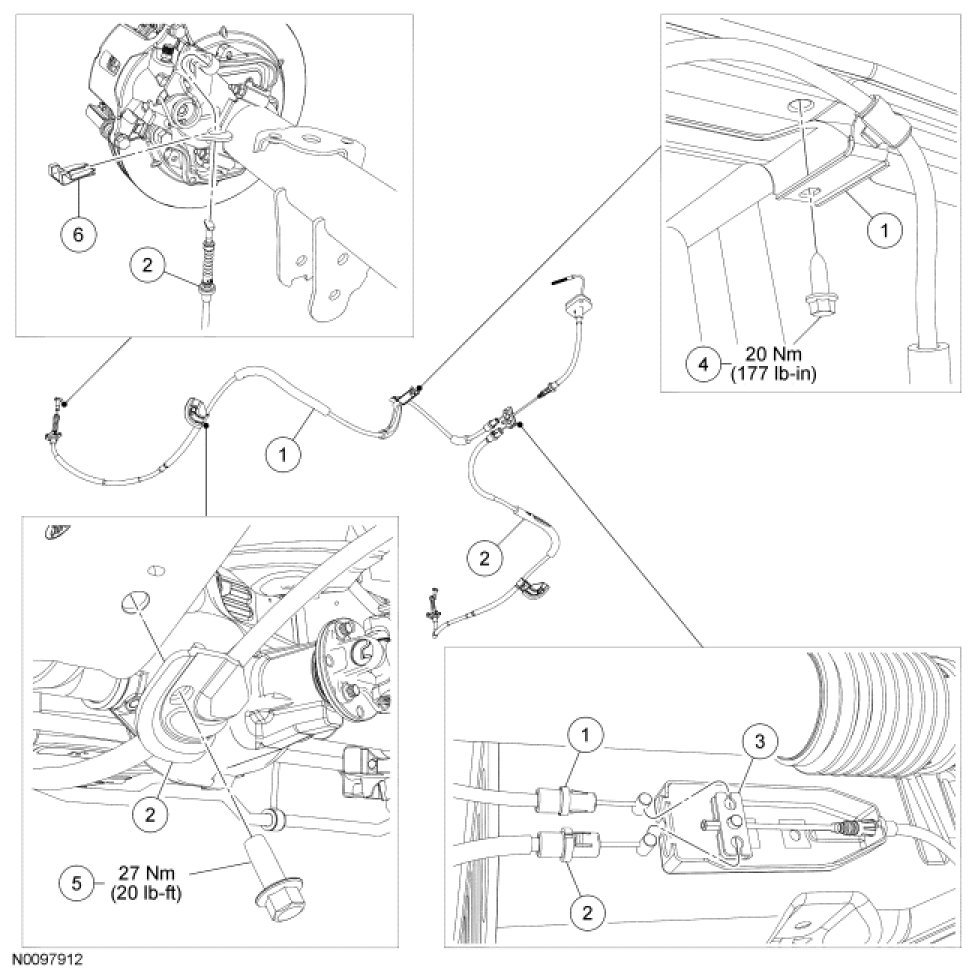

Parking Brake Cables
