Automatic Transmission/Transaxle
>>
System Diagram
>>

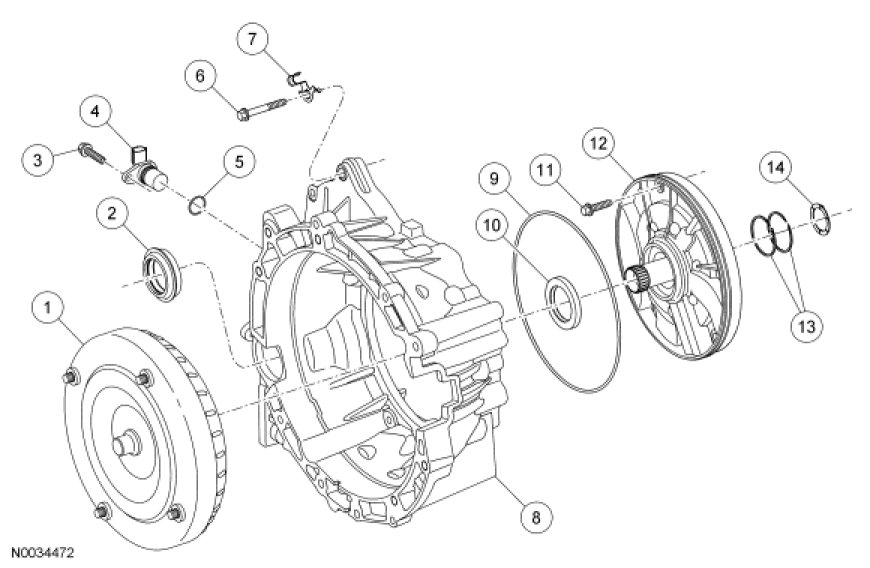

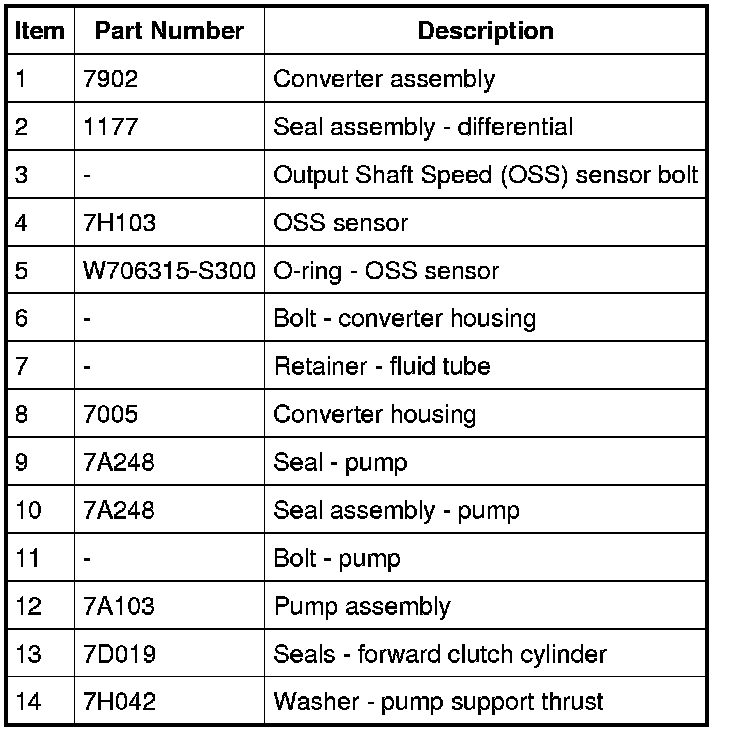

Converter Housing with Converter Assembly and Pump Assembly
Converter Housing with Converter Assembly and Pump Assembly
Converter Housing with Converter Assembly and Pump Assembly
