Home
>>
Ford
>>
2011
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
Drum Brake System
>>
System Specifications

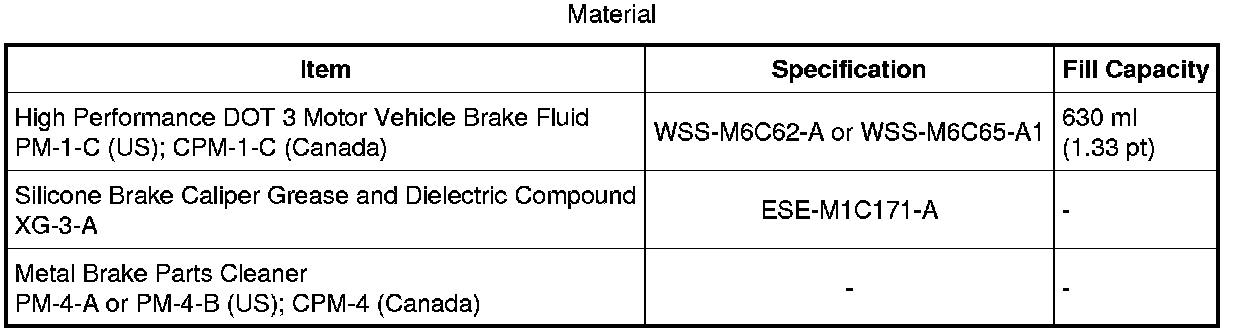

System Specifications

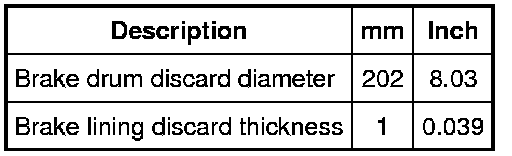

Drum Brake Specification

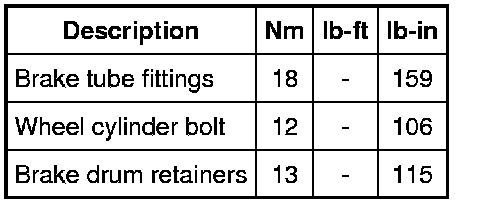

Torque Specifications
