Axle Shaft Assembly
Axle Shaft Assembly

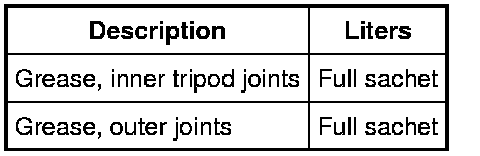

CV Joint Capacities

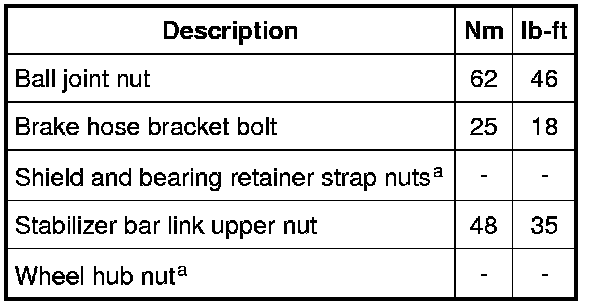

Torque Specifications
a
Refer to Halfshaft-Exploded View.
