Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Start Transmitter
>>

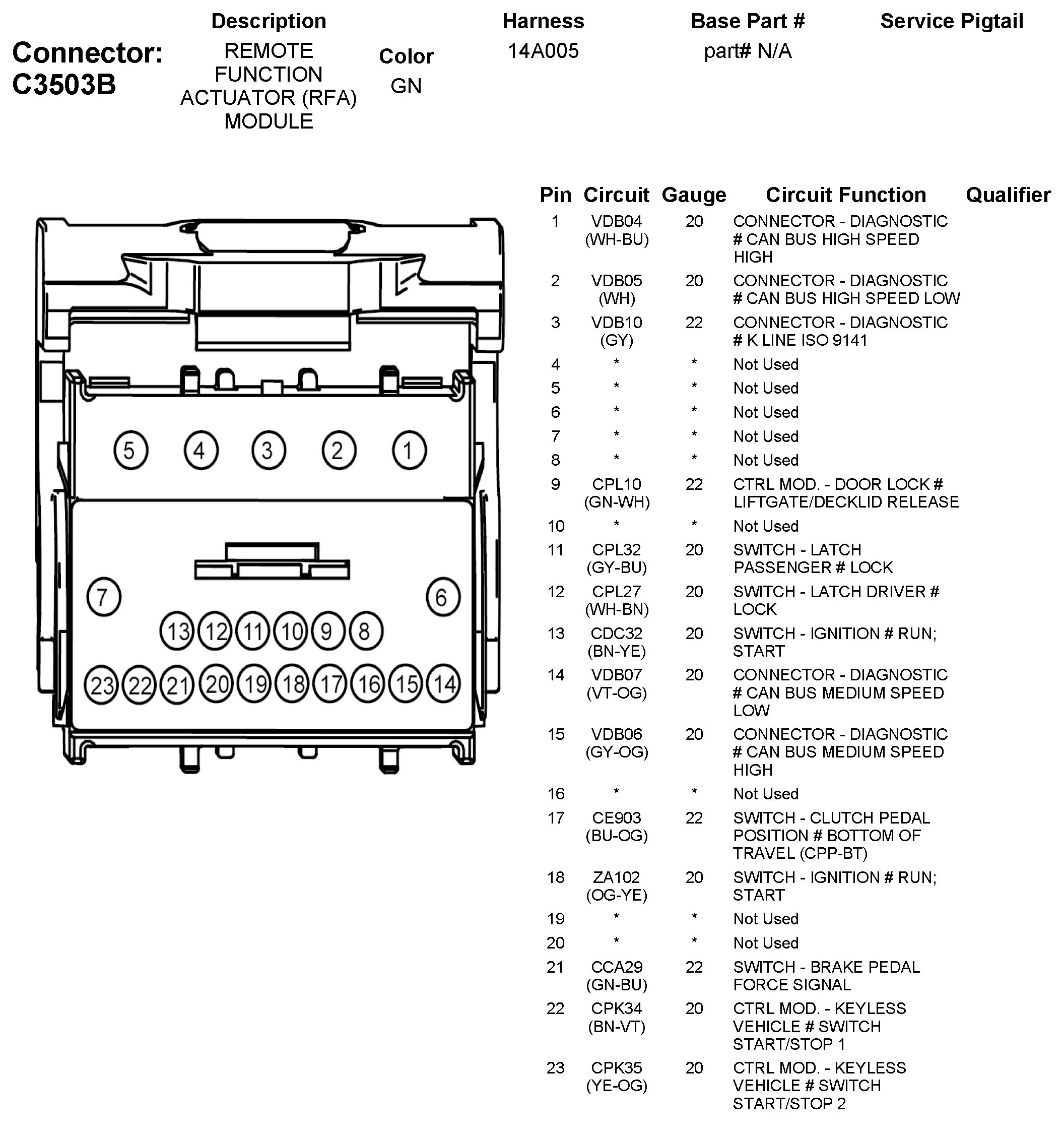

C3503B Remote Function Actuator (RFA) Module
C3503B Remote Function Actuator (RFA) Module
