Home
>>
Ford
>>
2010
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>

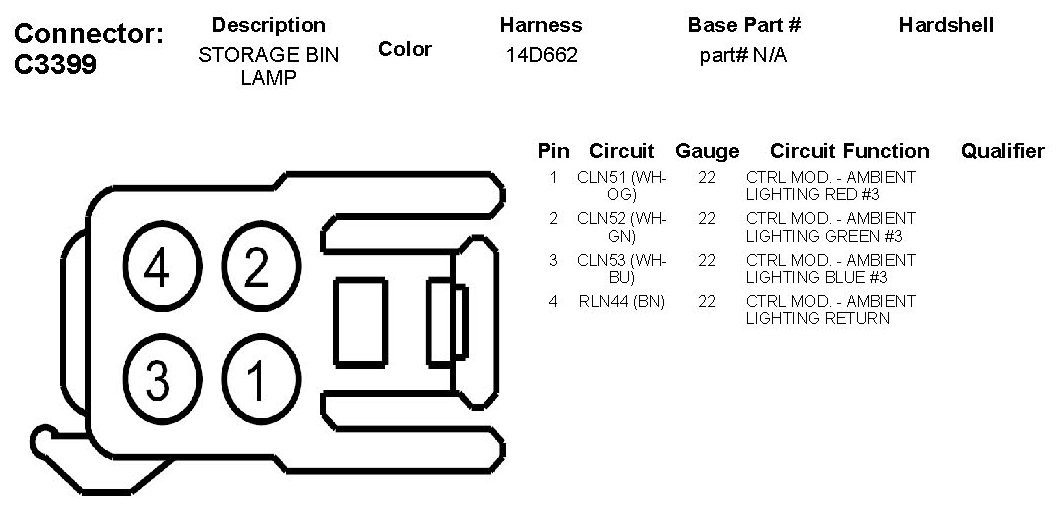

Storage Bin Lamp
Storage Bin Lamp
