Automatic Transmission/Transaxle
>>
System Diagram
>>

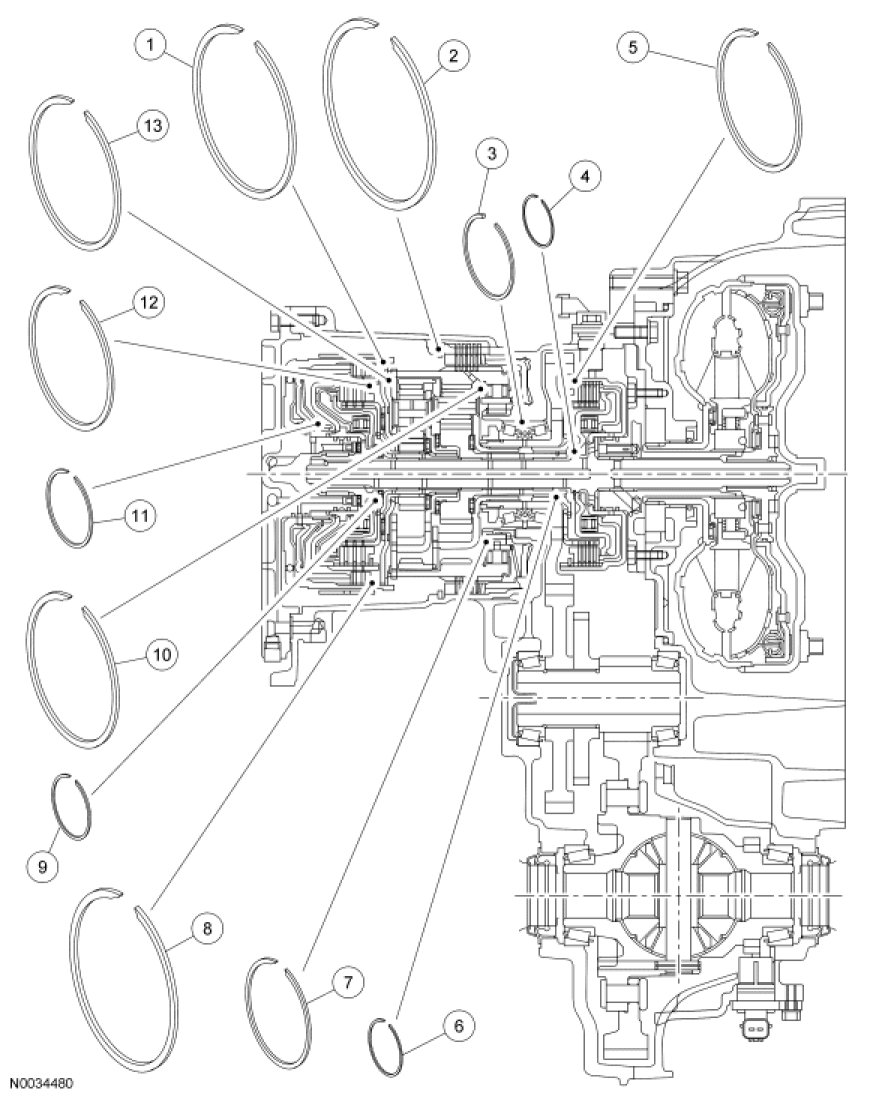

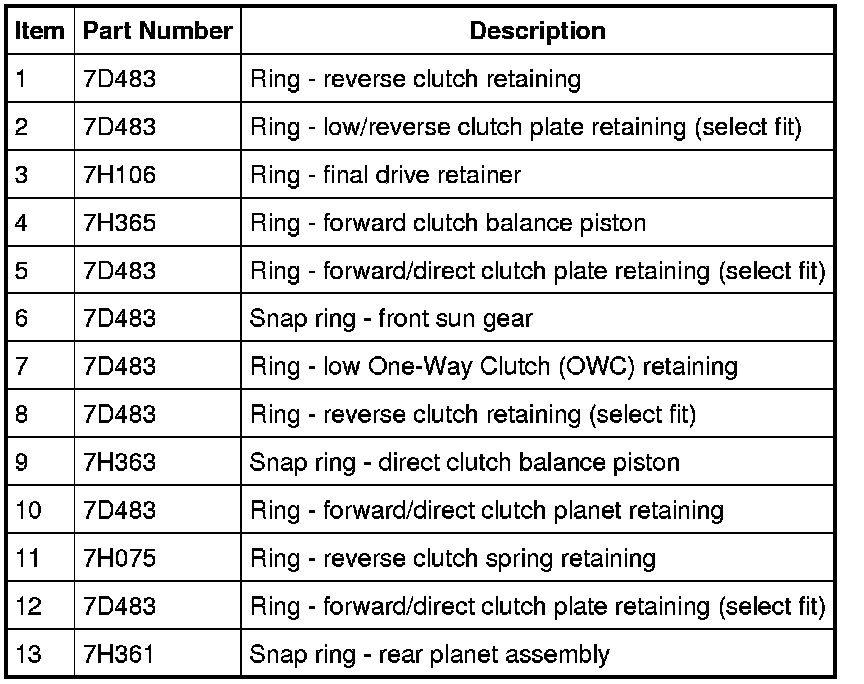

Snap Rings
Snap Rings
4F27E
Transaxle
Snap Rings
