Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
2009
>>
Taurus X FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module

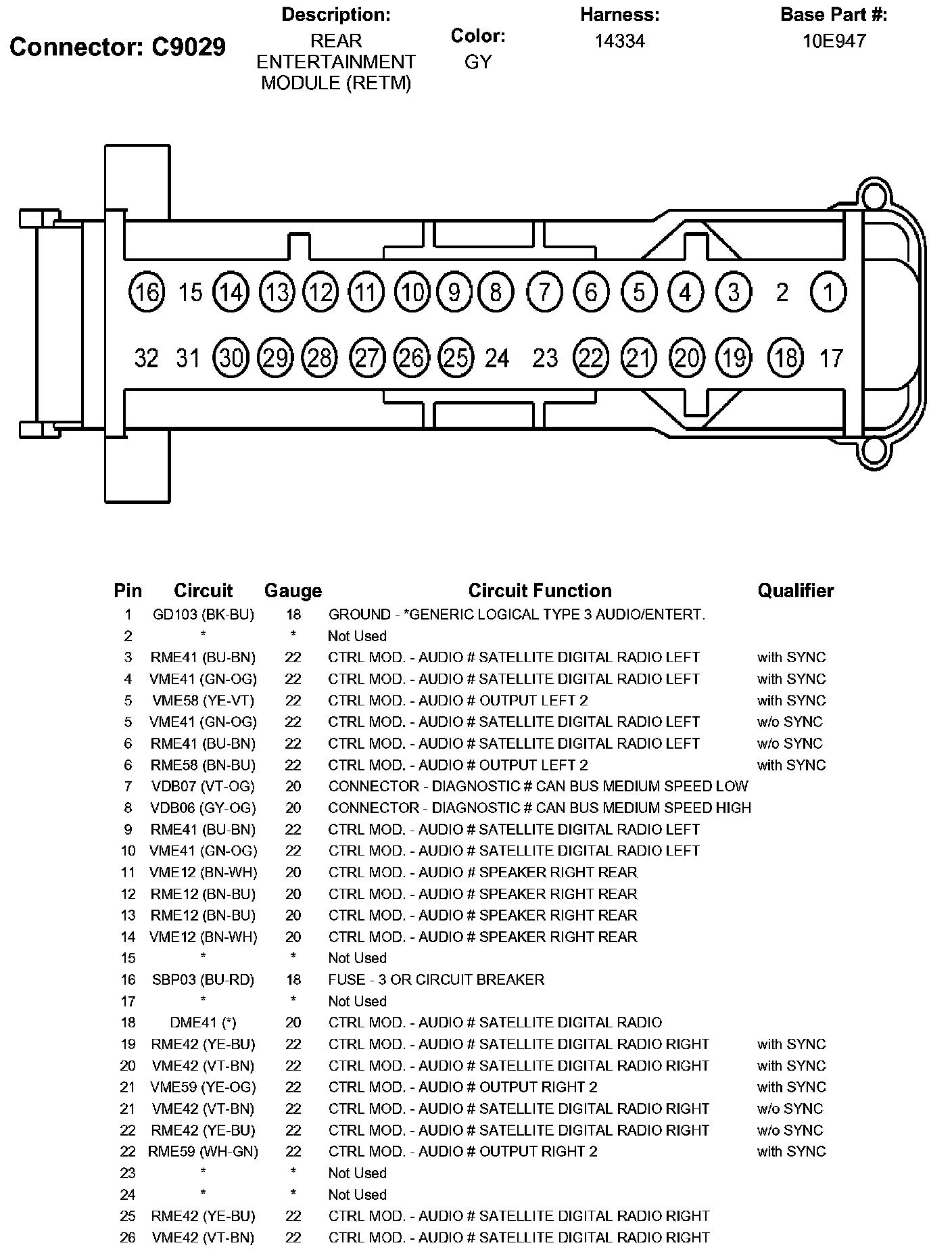

Part 1:

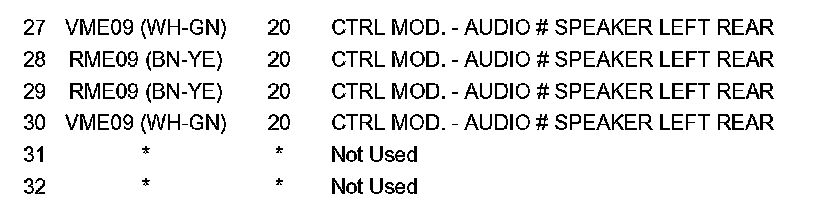

Part 2:
