Ford
>>
2009
>>
Mustang V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
5R55S Transmission

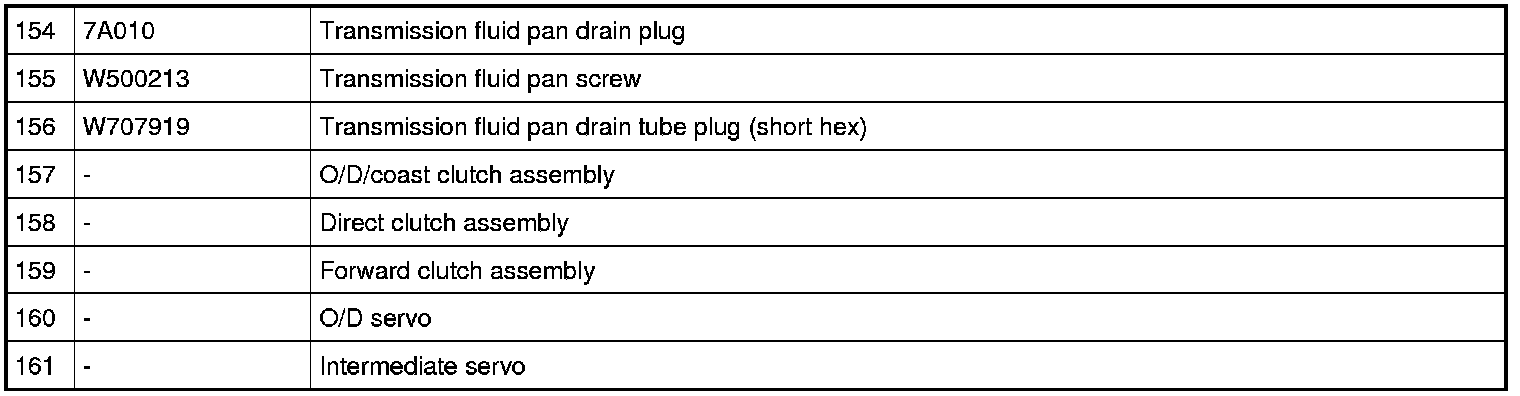

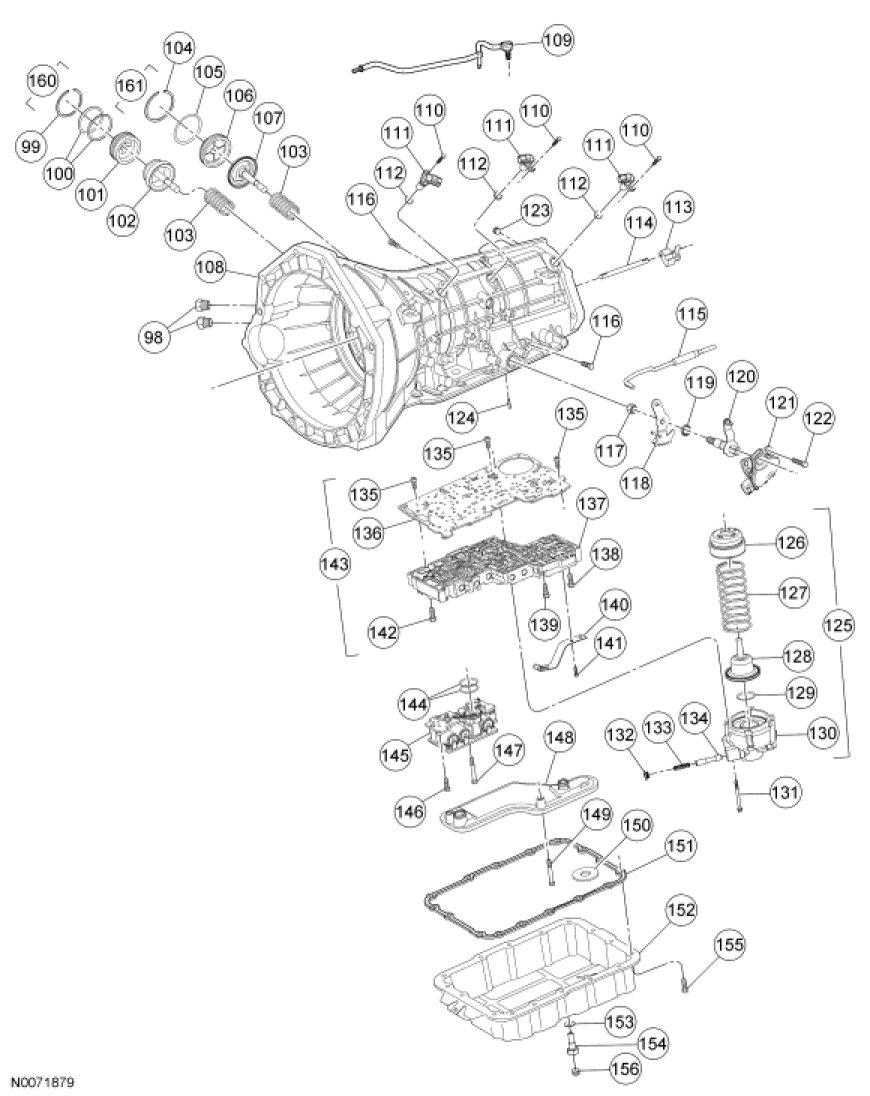

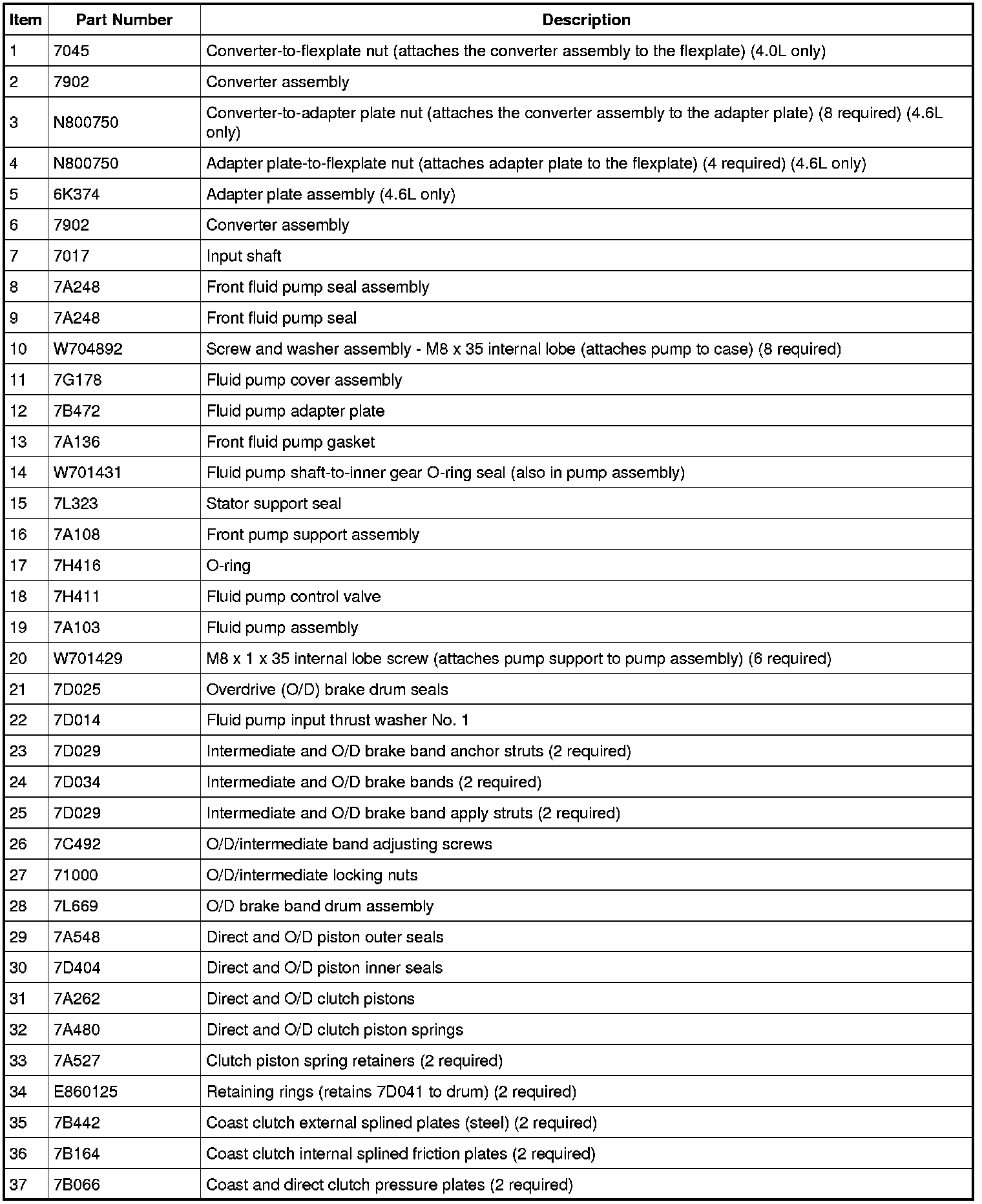

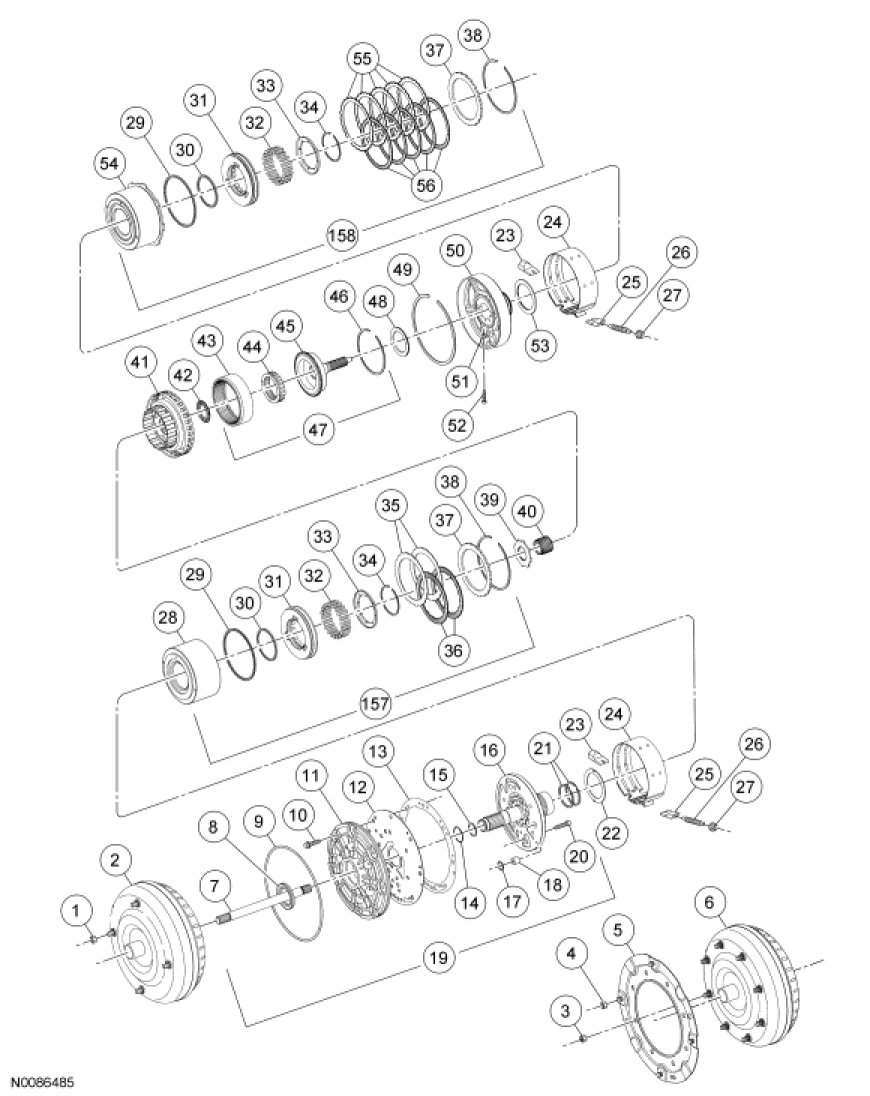

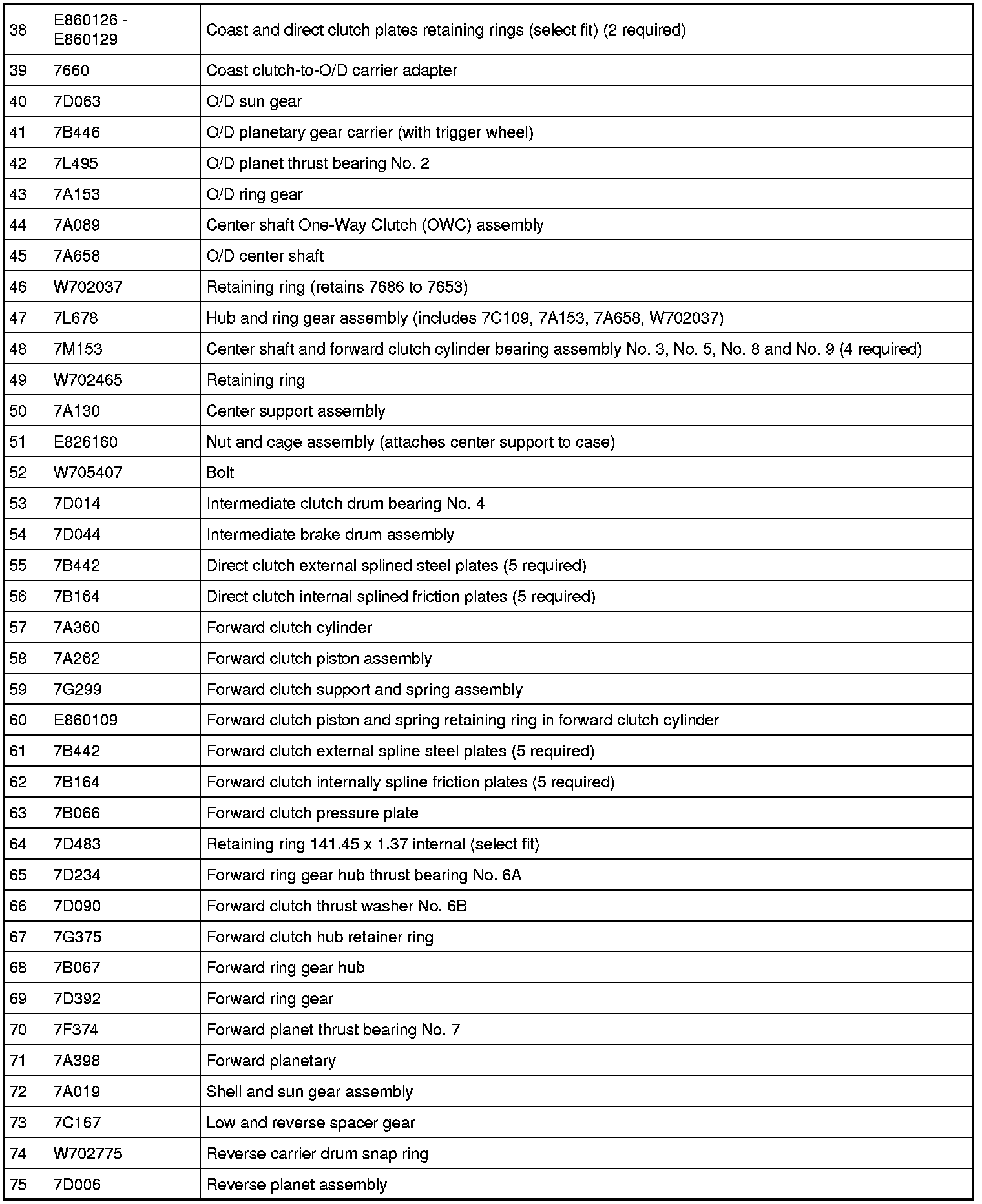

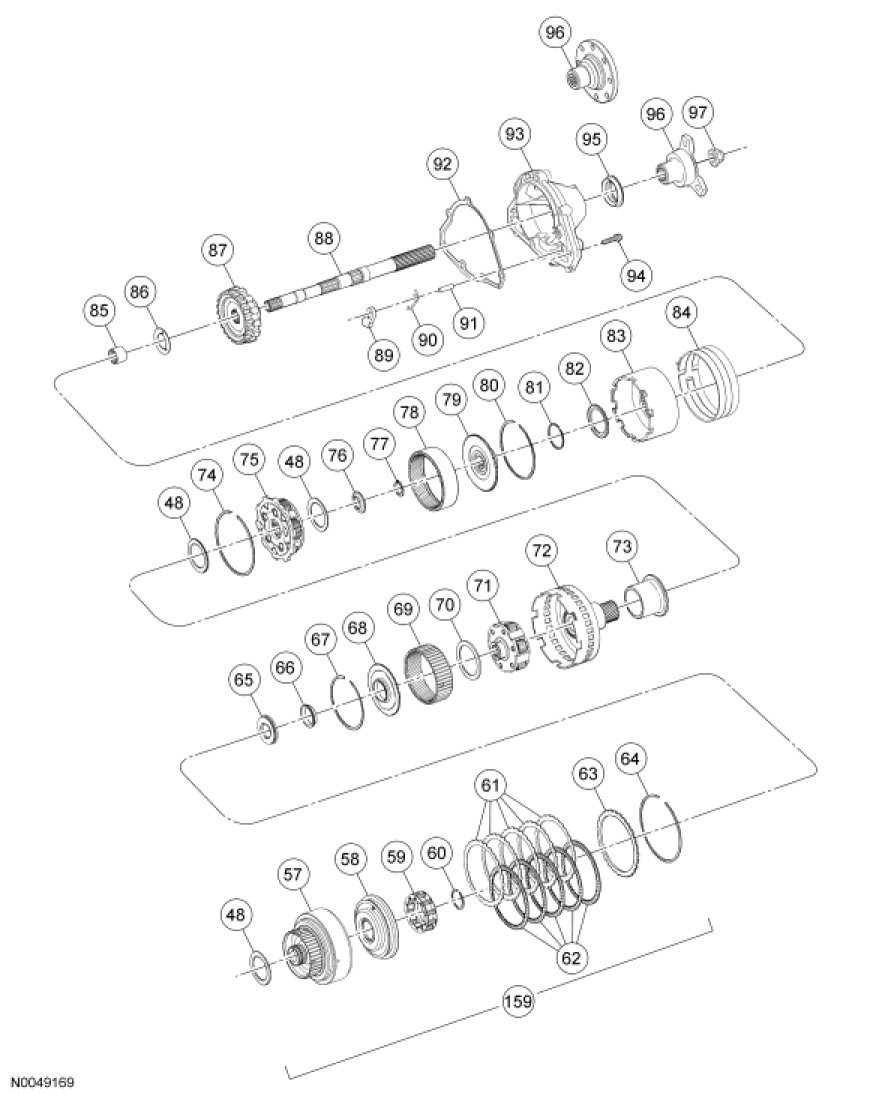

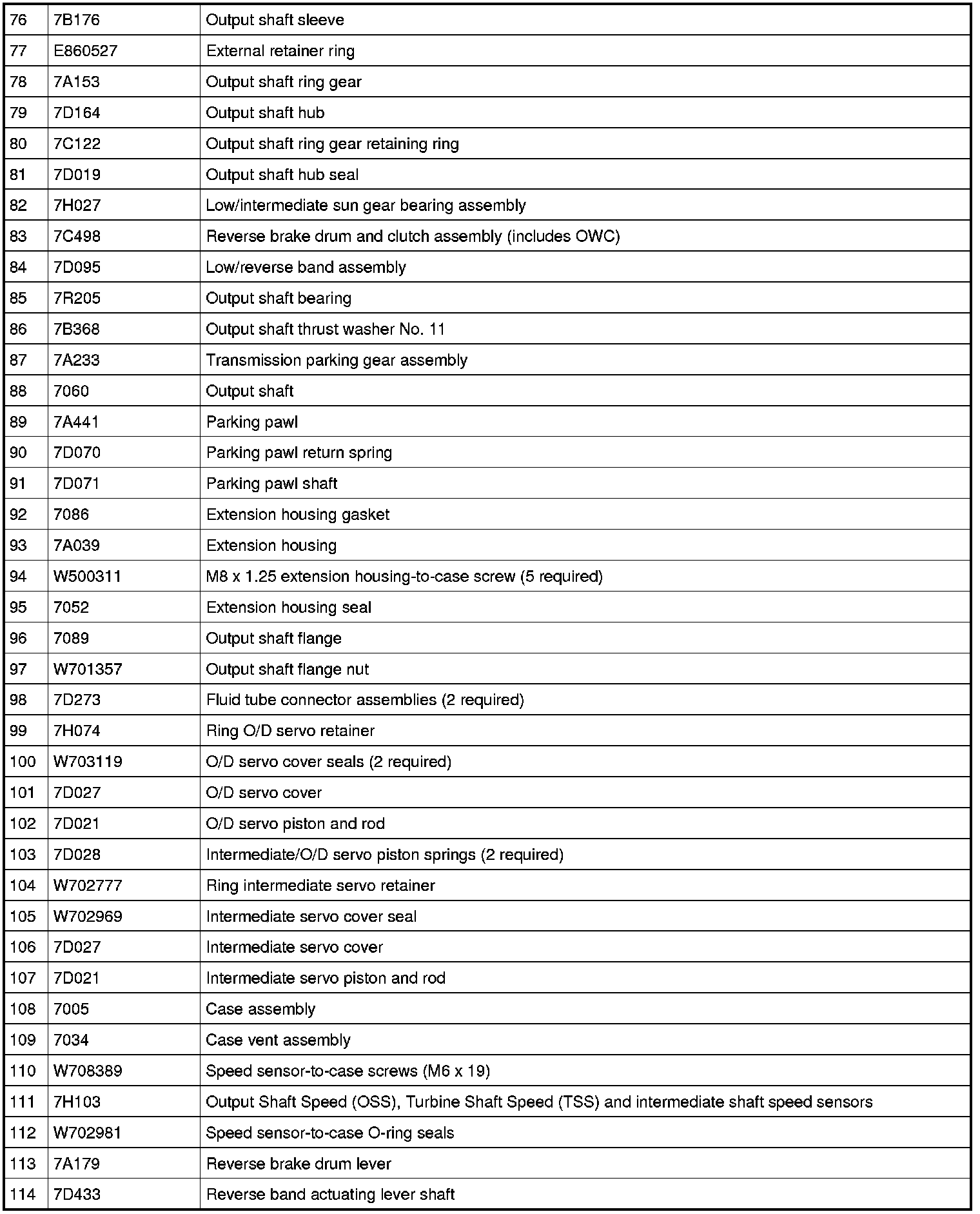

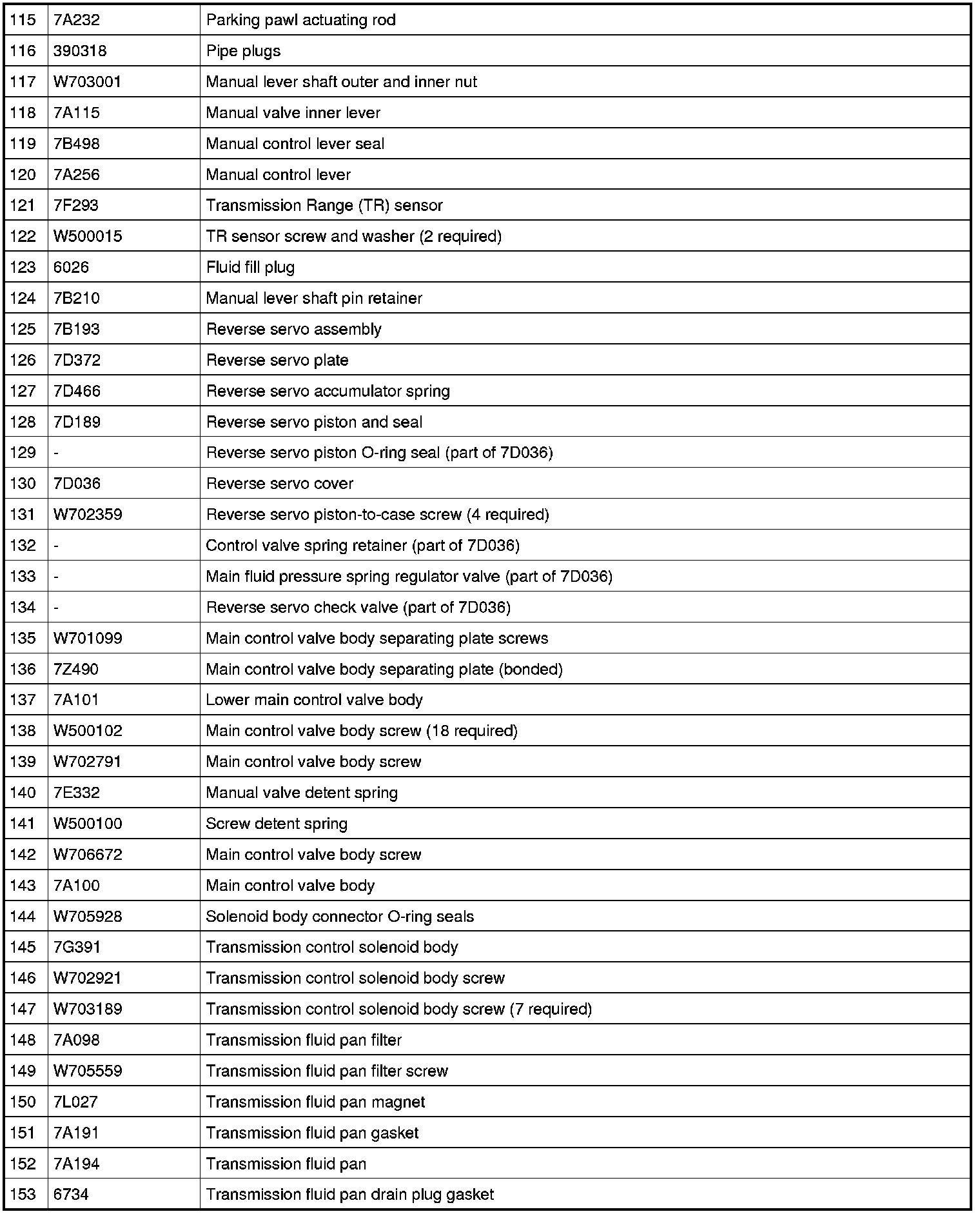

Disassembled Views
