Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Main Control Assembly

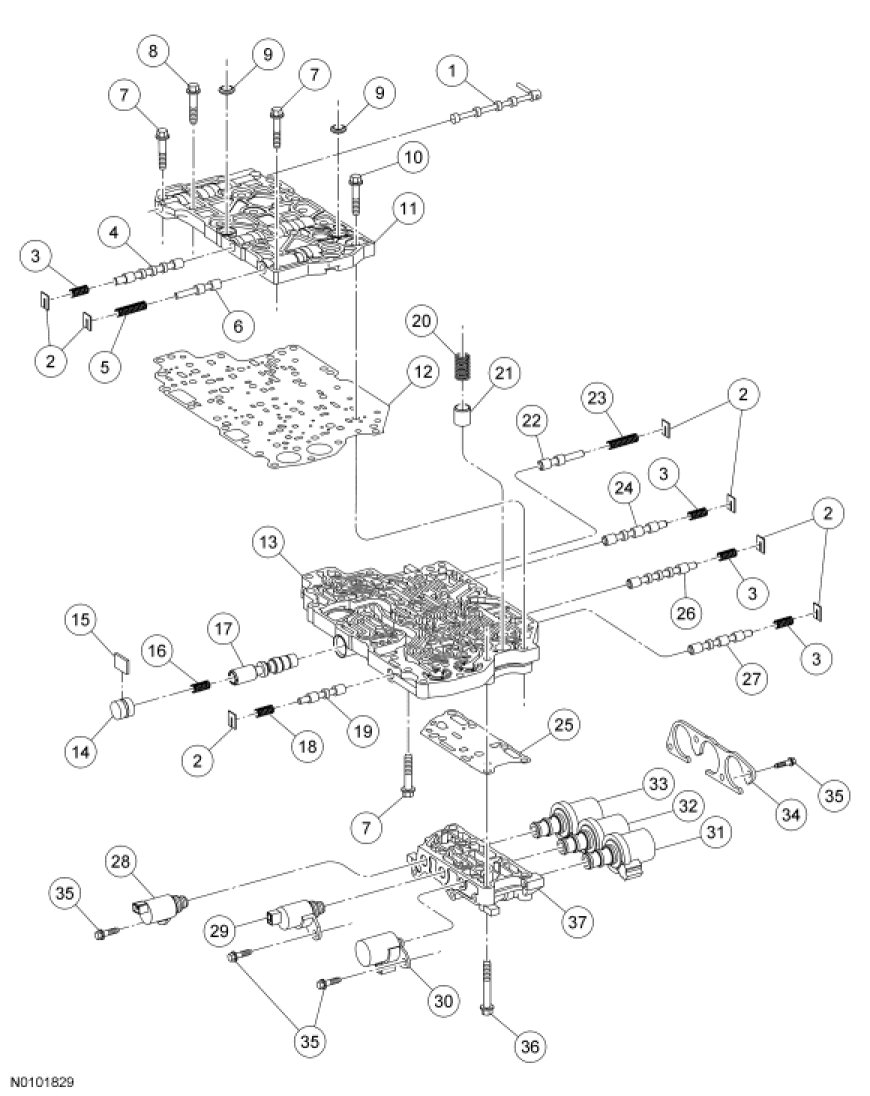

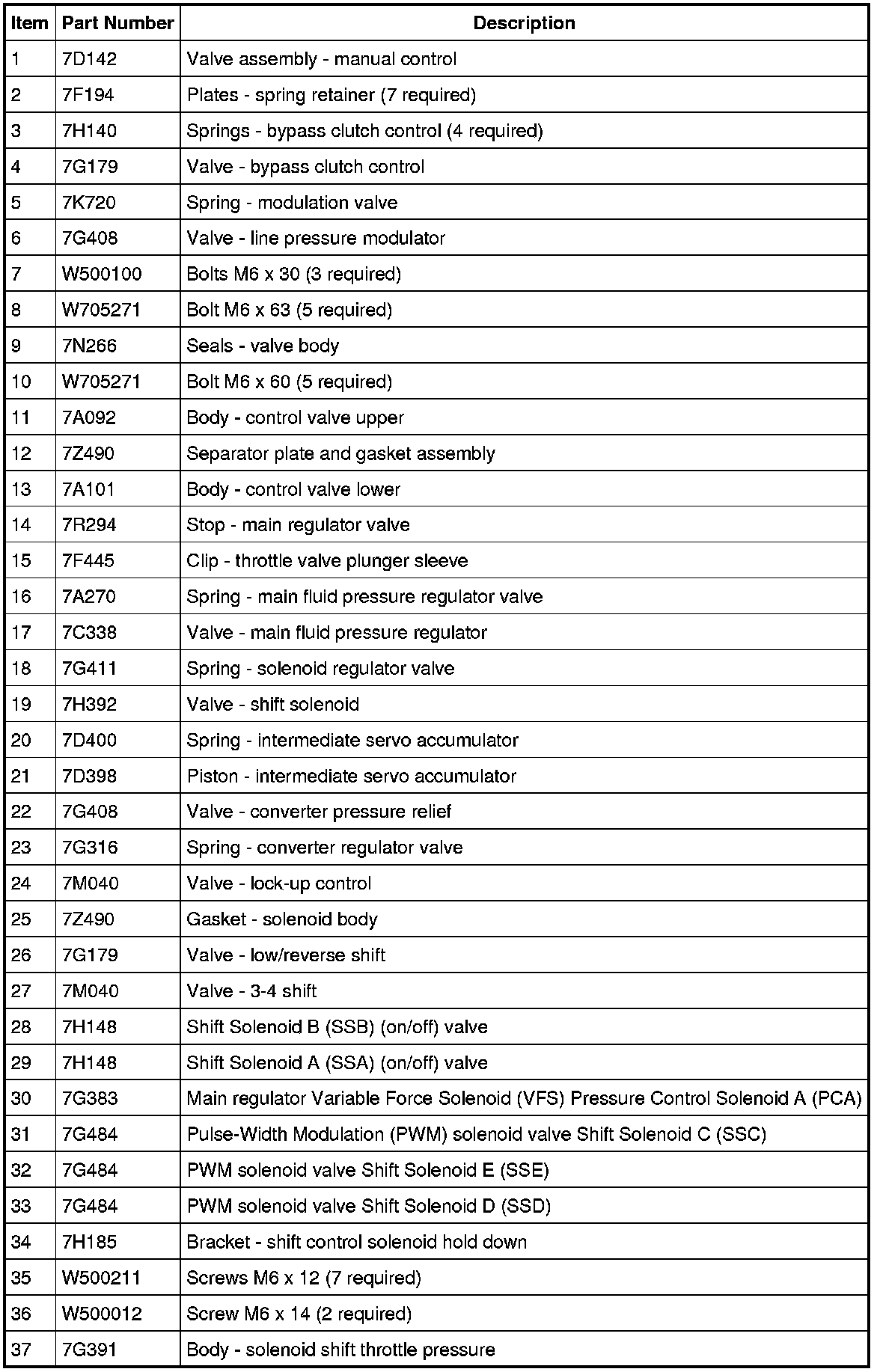

Main Control Assembly
4F27E
Main Control Assembly
