Ford
>>
2009
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

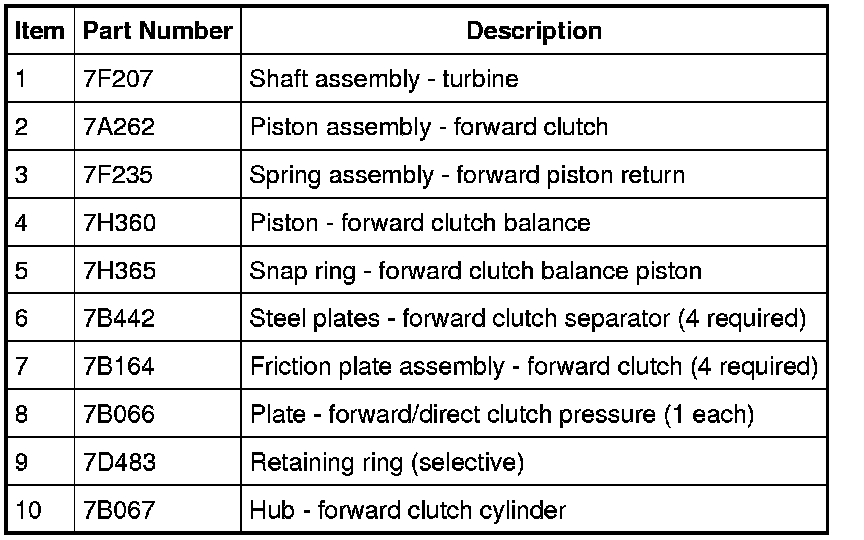

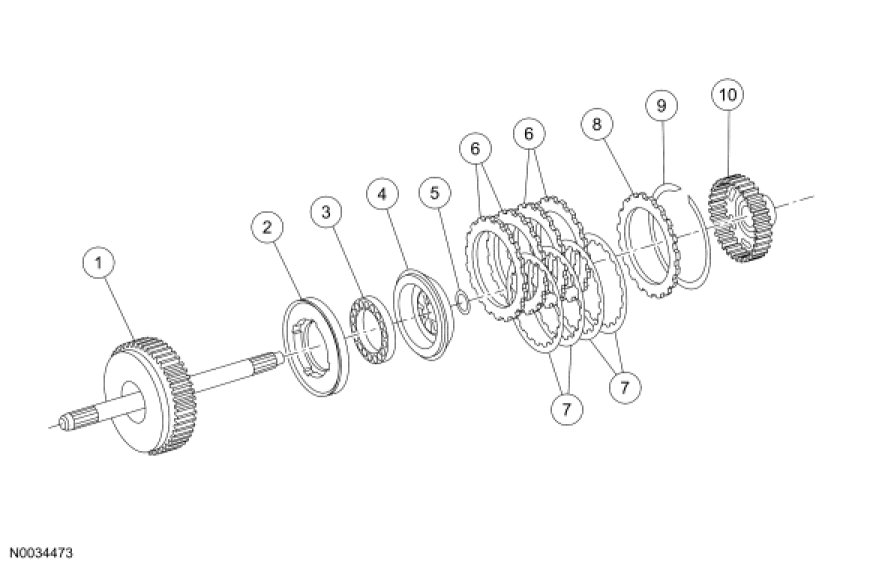

Forward Clutch
Forward Clutch
4F27E
Forward Clutch
