Home
>>
Ford
>>
2009
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

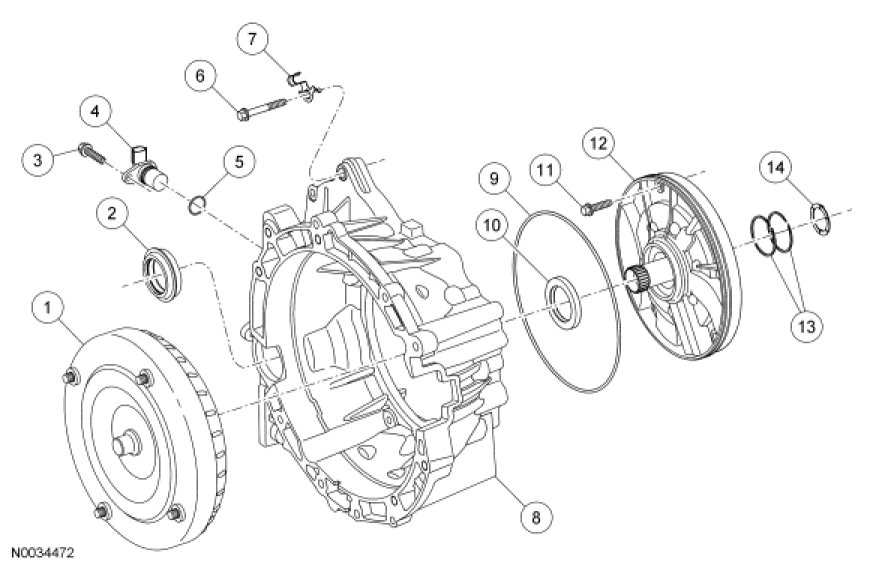

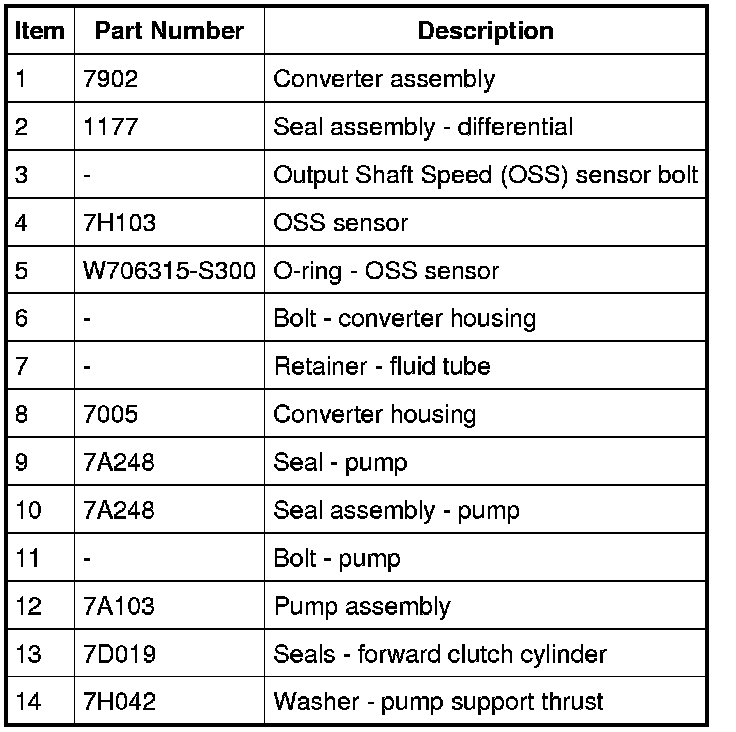

Converter Housing with Converter Assembly and Pump Assembly
Converter Housing with Converter Assembly and Pump Assembly
4F27E
Converter Housing with Converter Assembly and Pump Assembly
