Home >> Ford >> 2009 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C213

C213

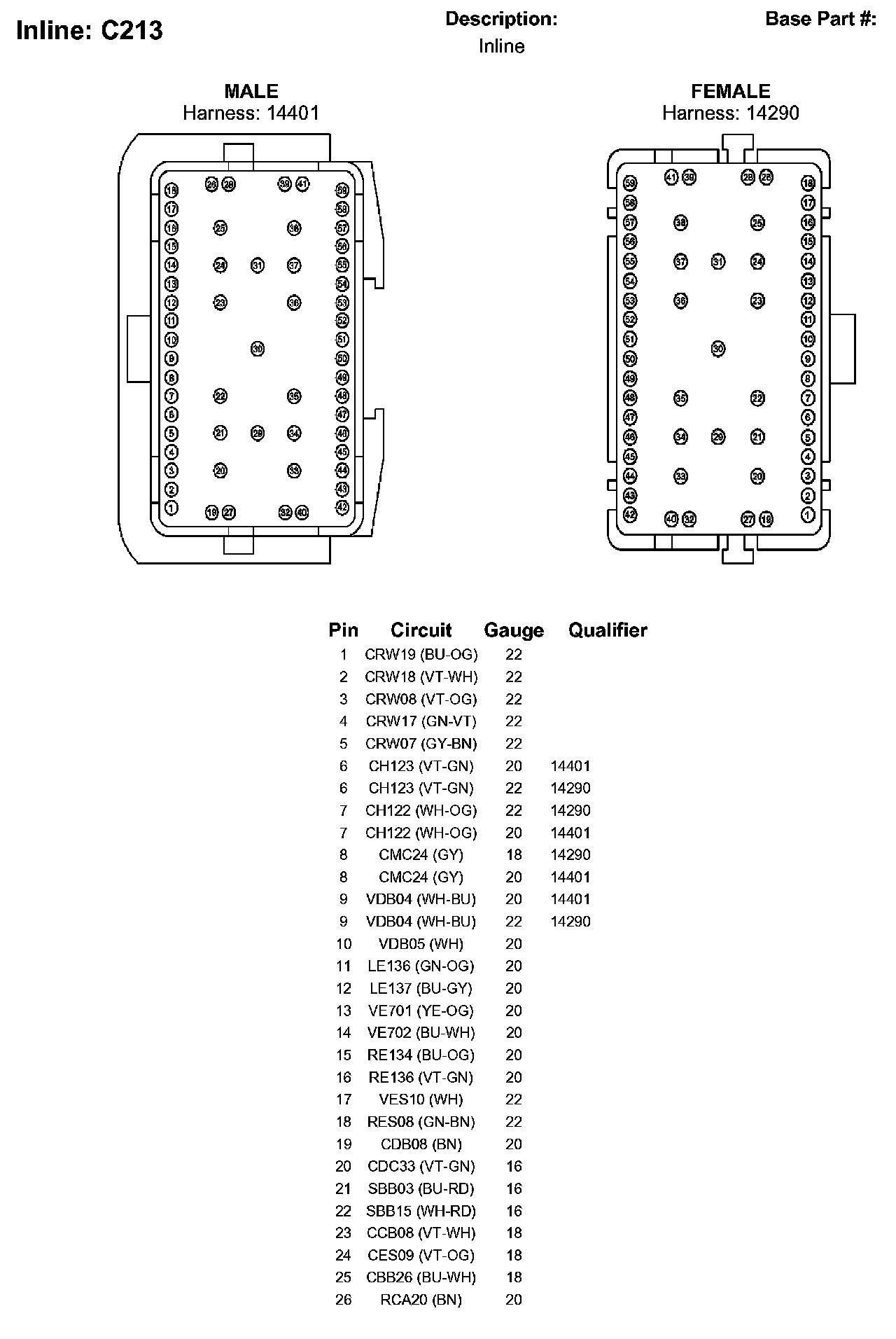

Part 1:

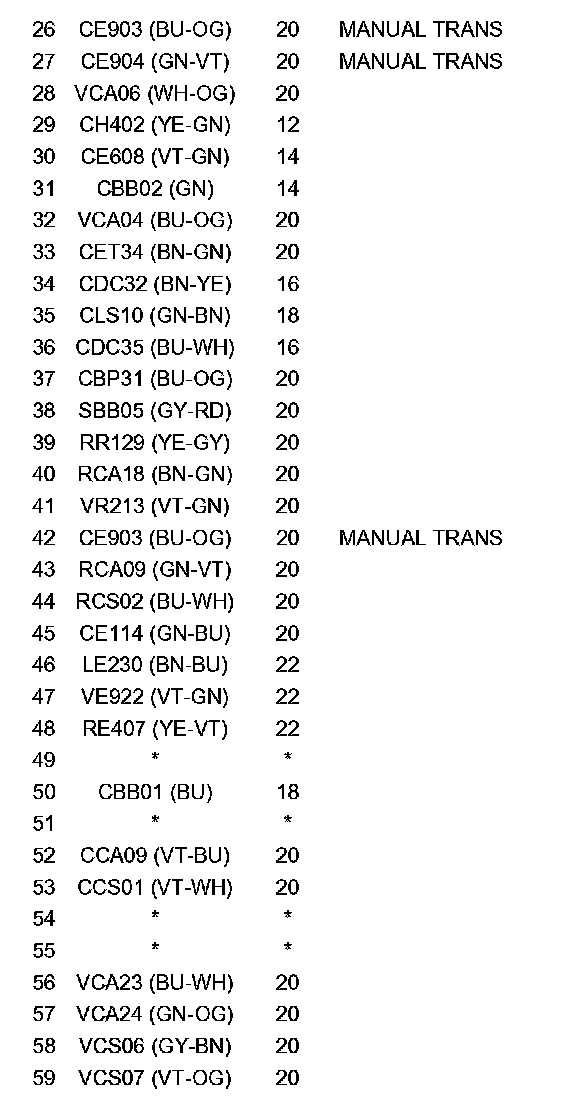

Part 2:
