Home >> Ford >> 2009 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

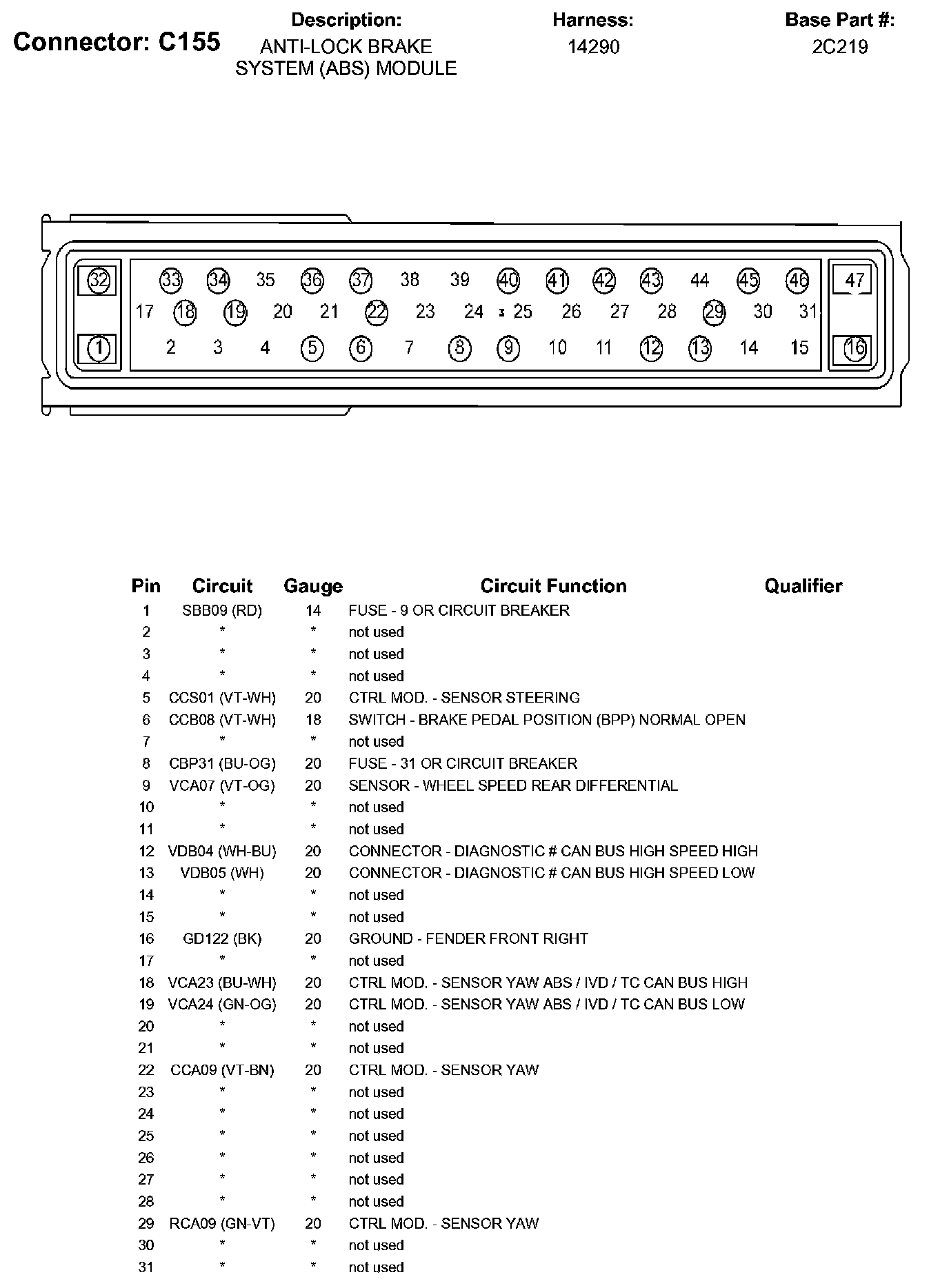

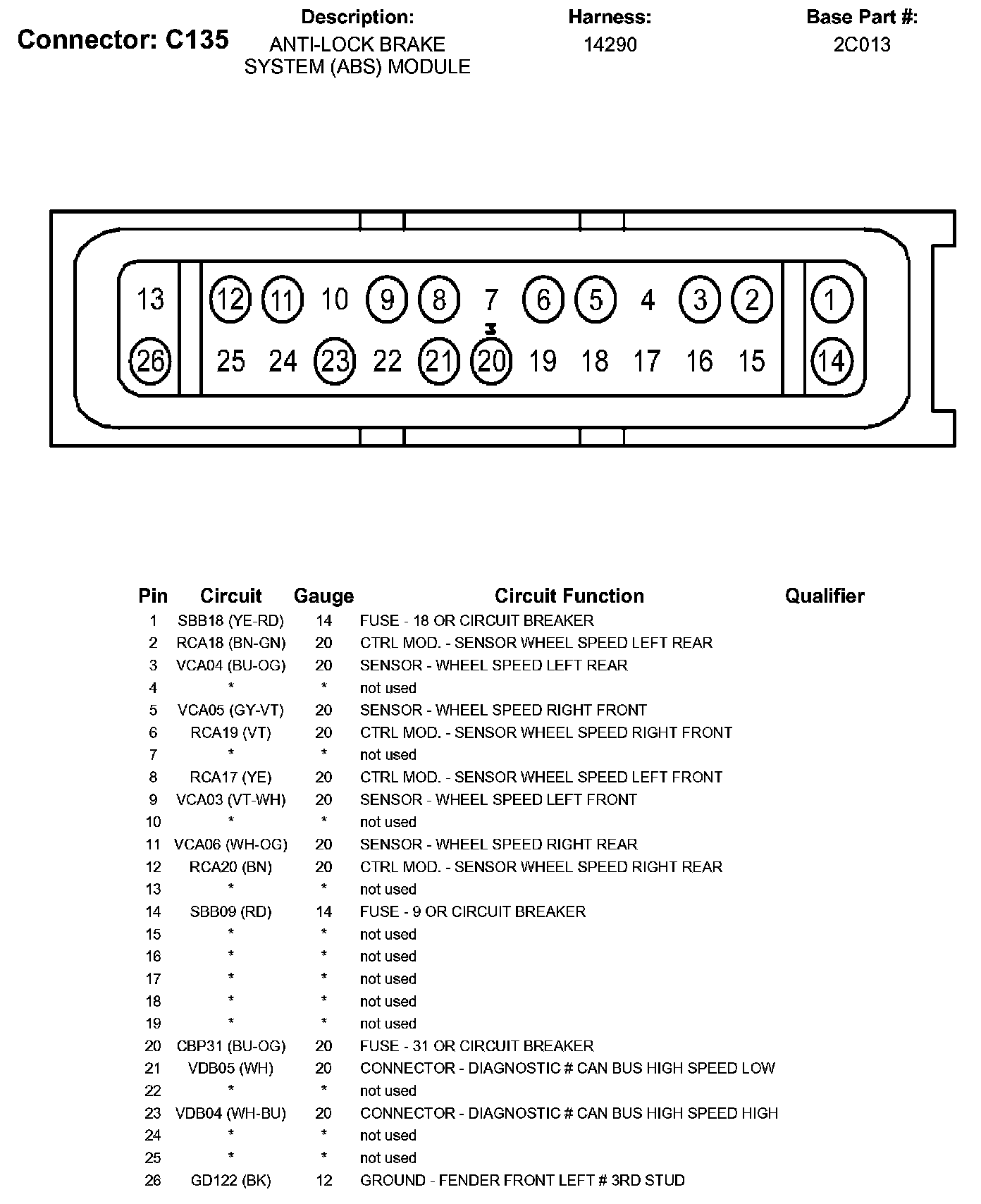

Part 1:

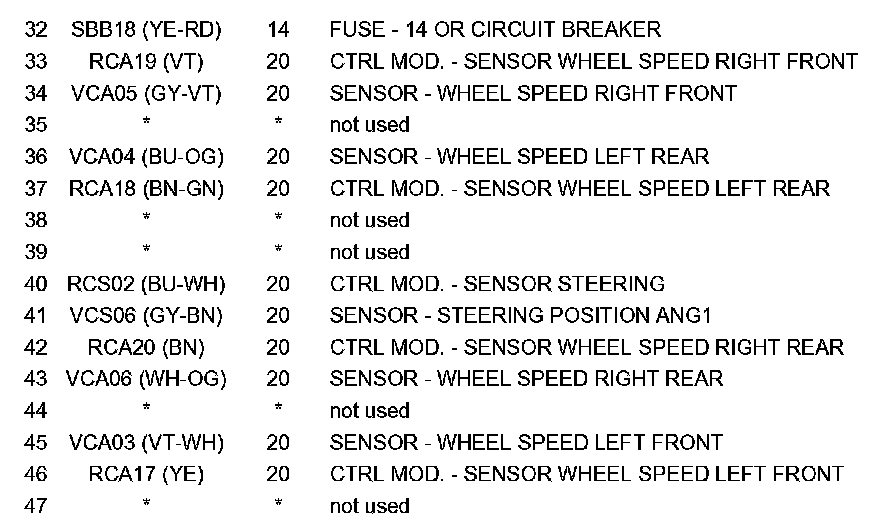

Part 2:
