Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

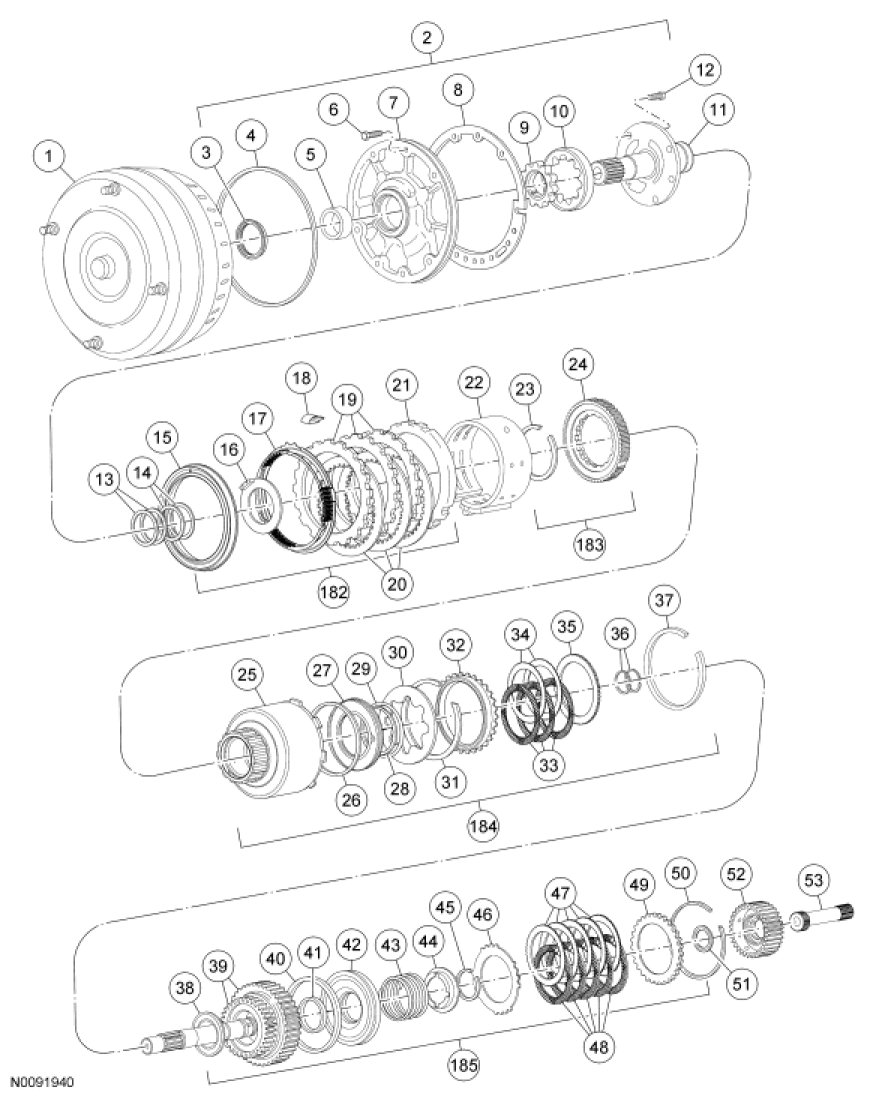

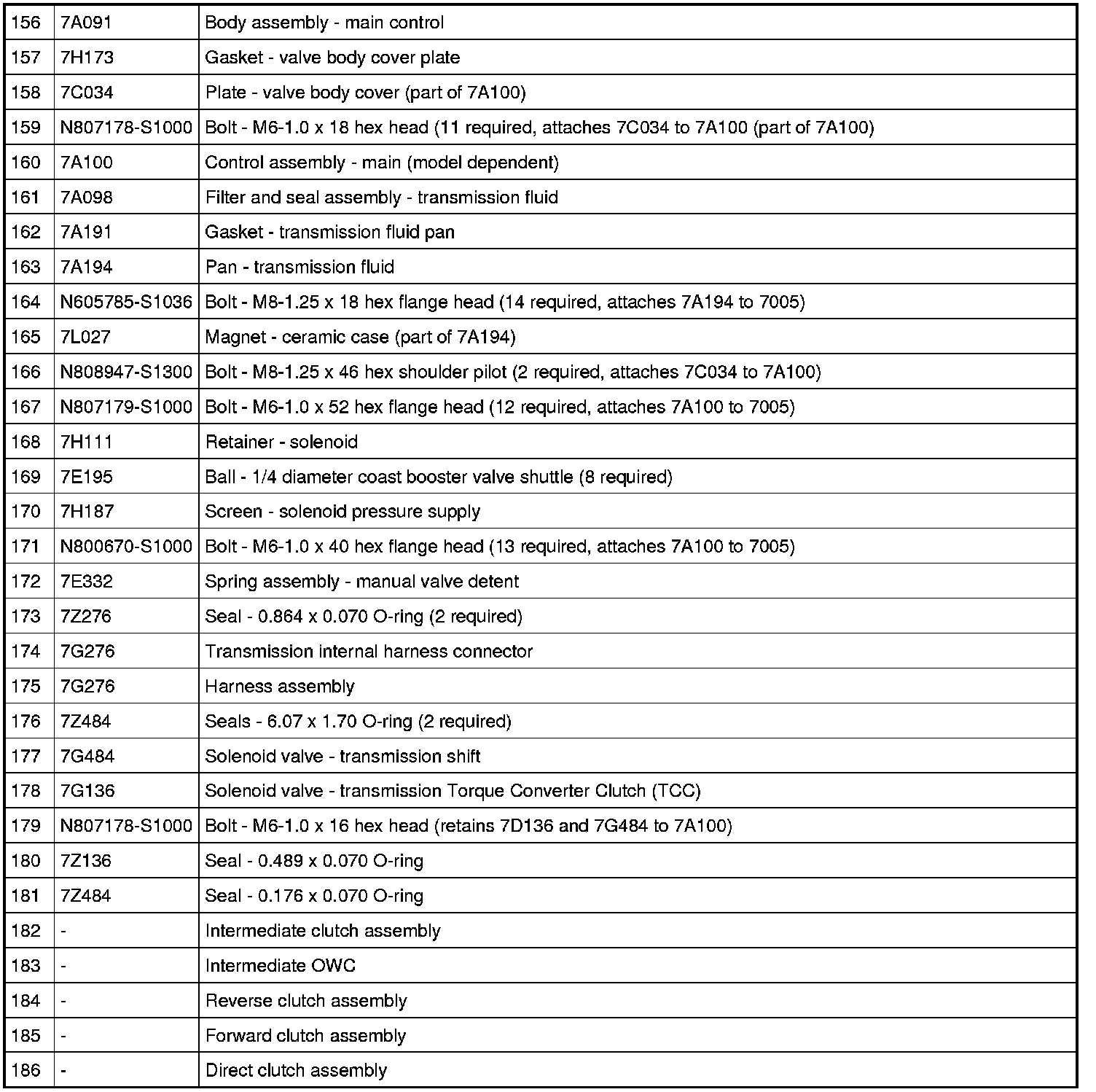

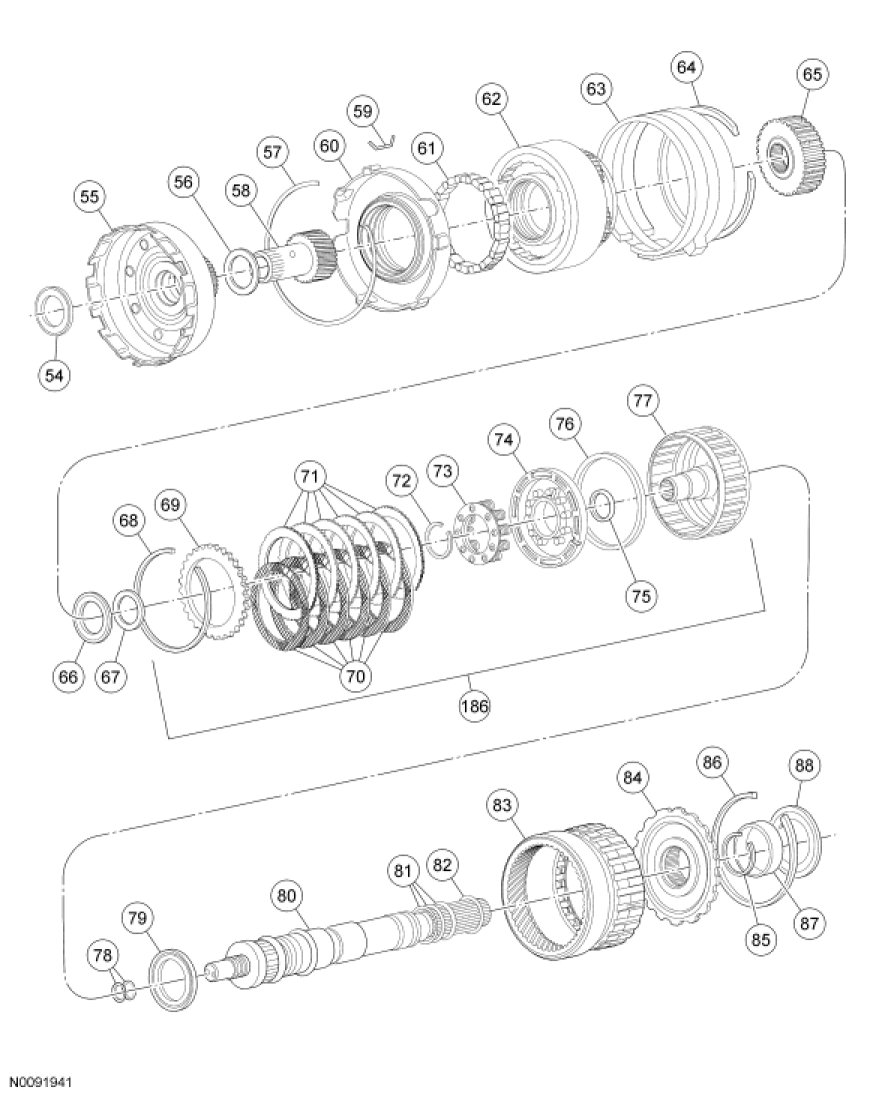

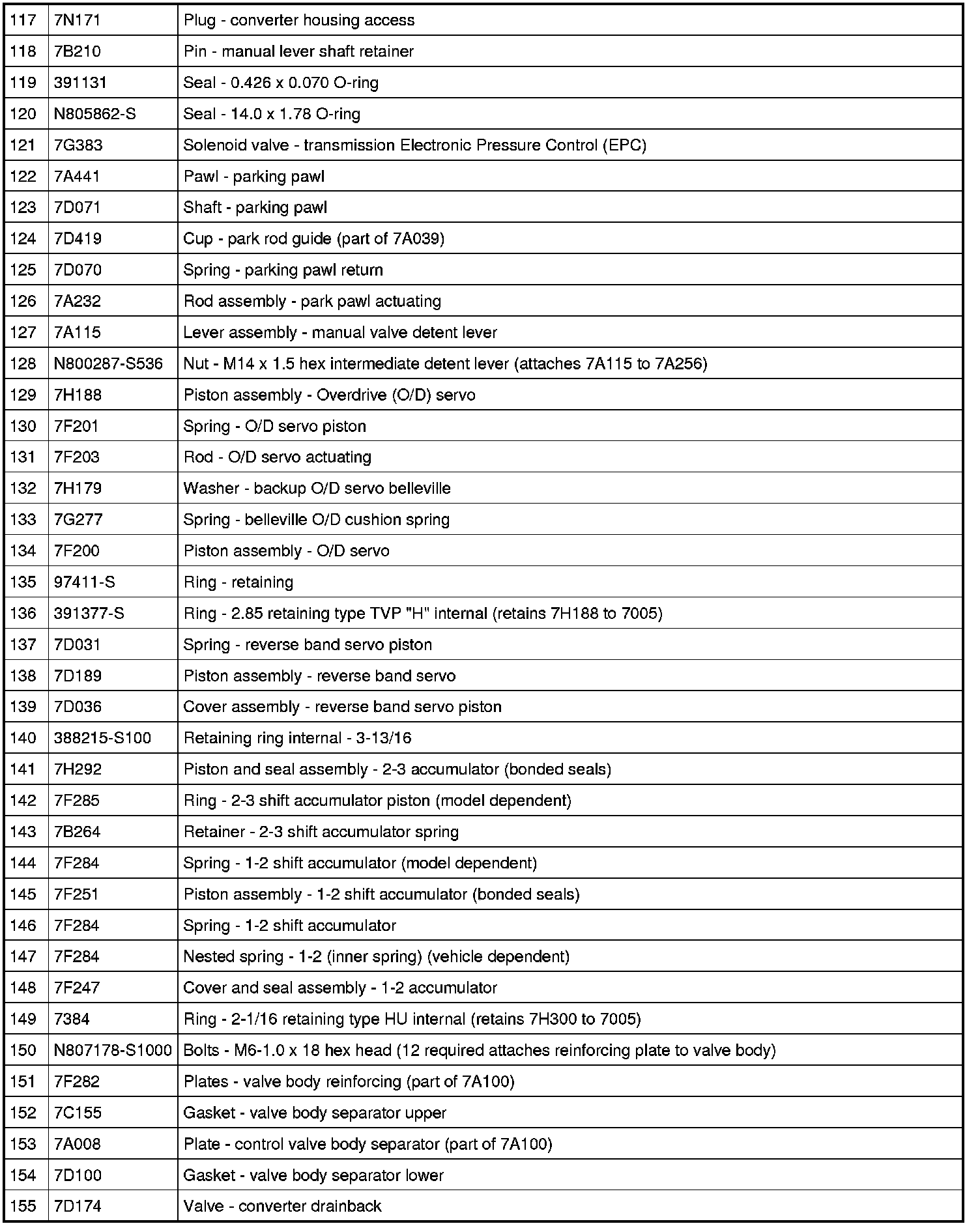

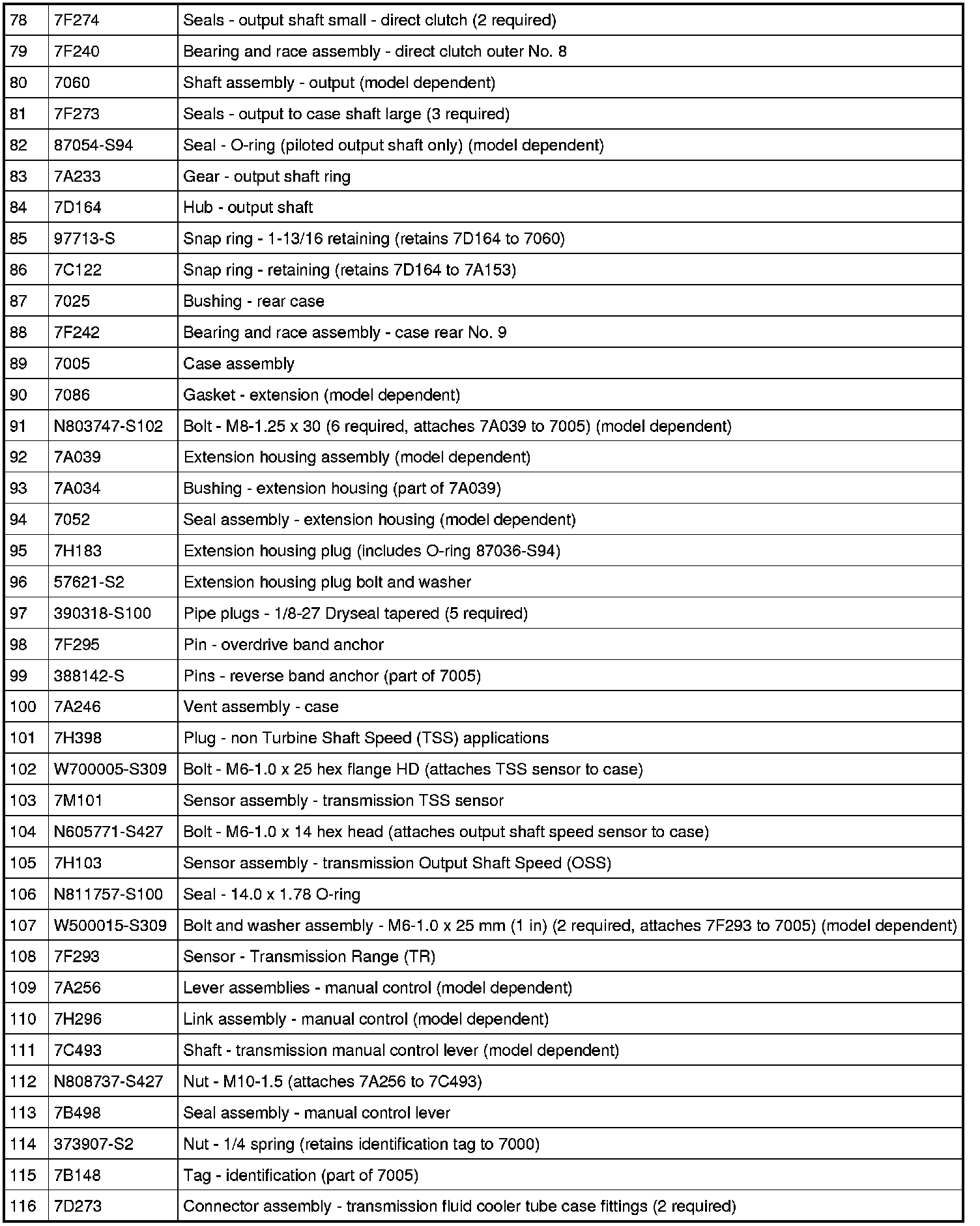

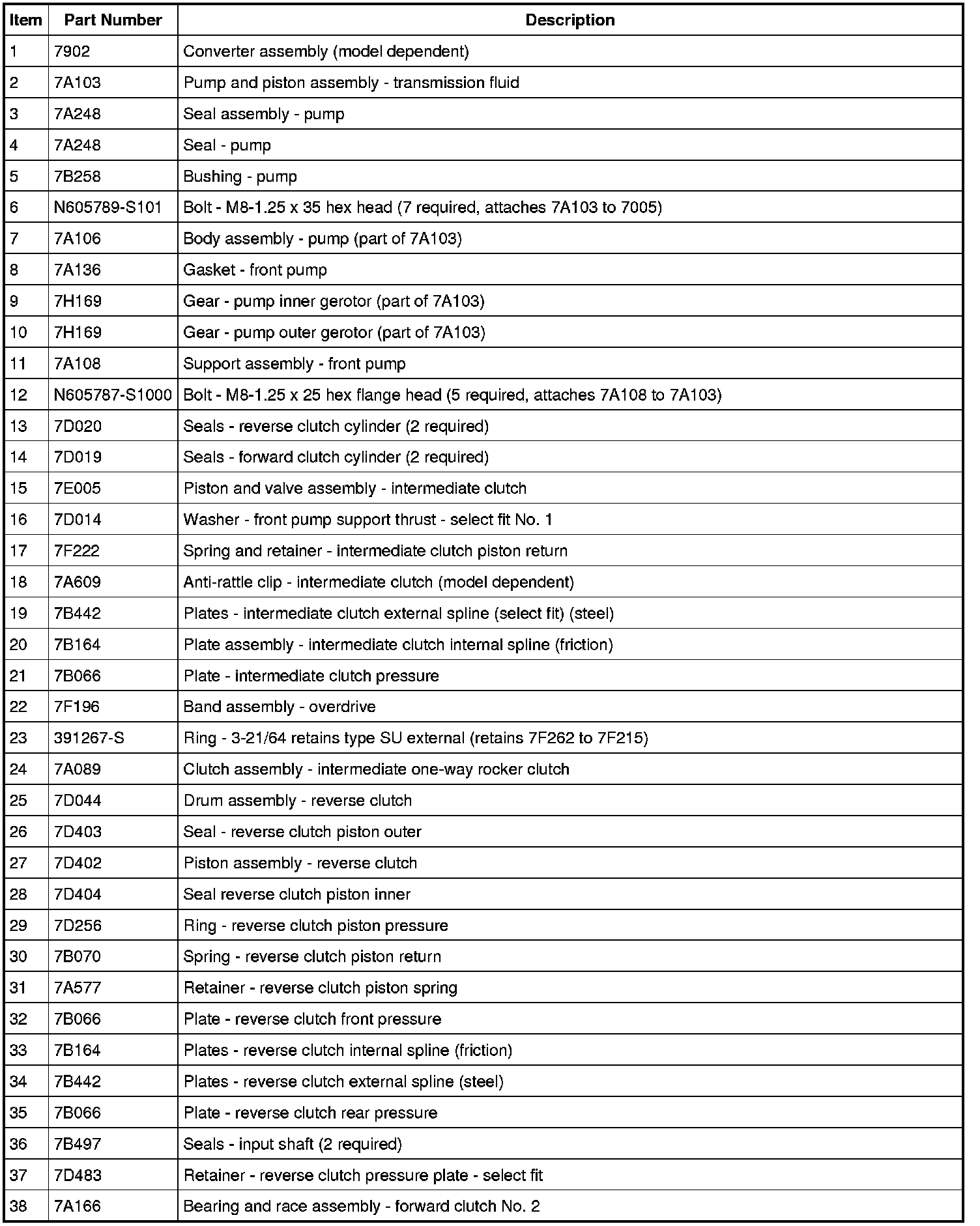

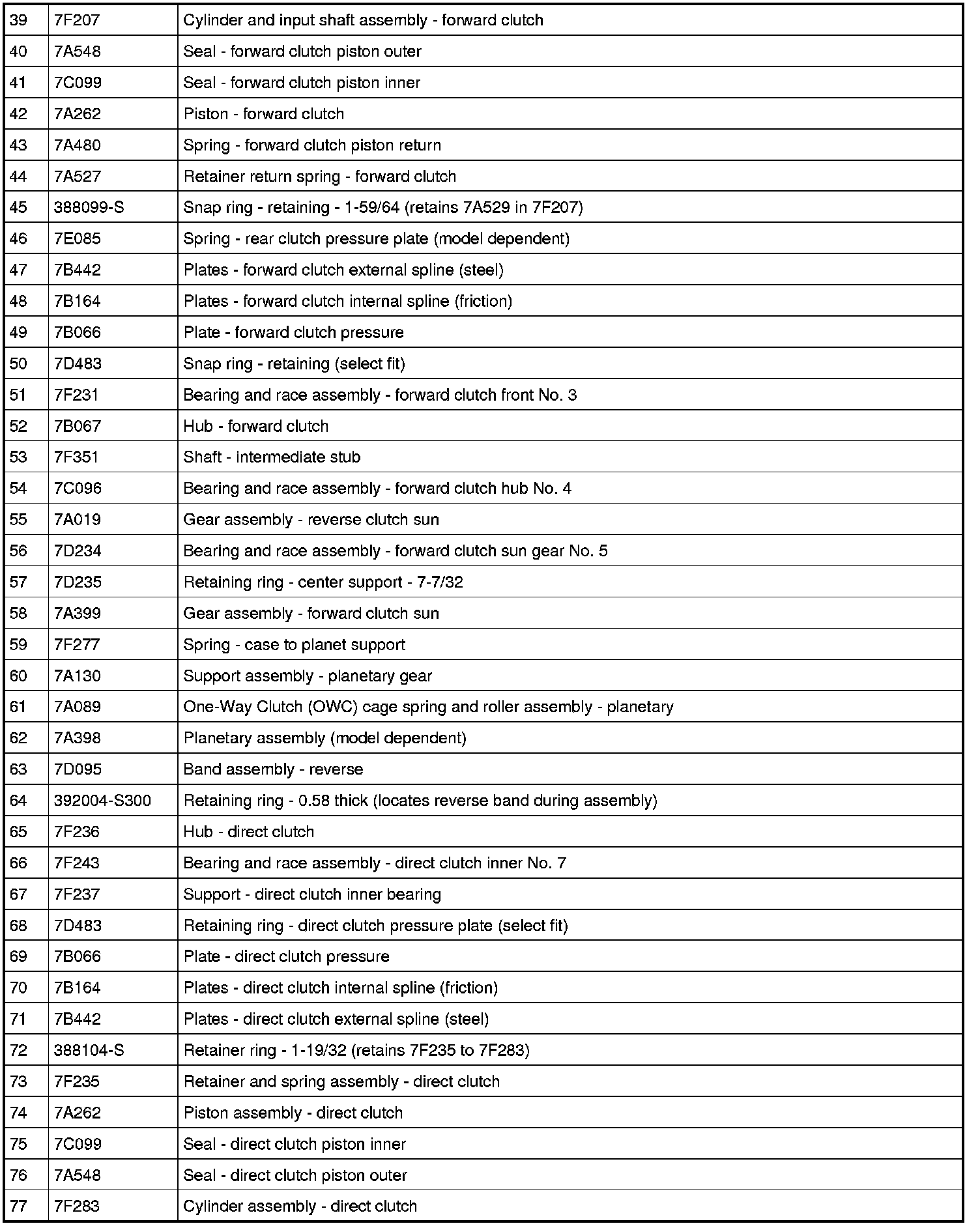

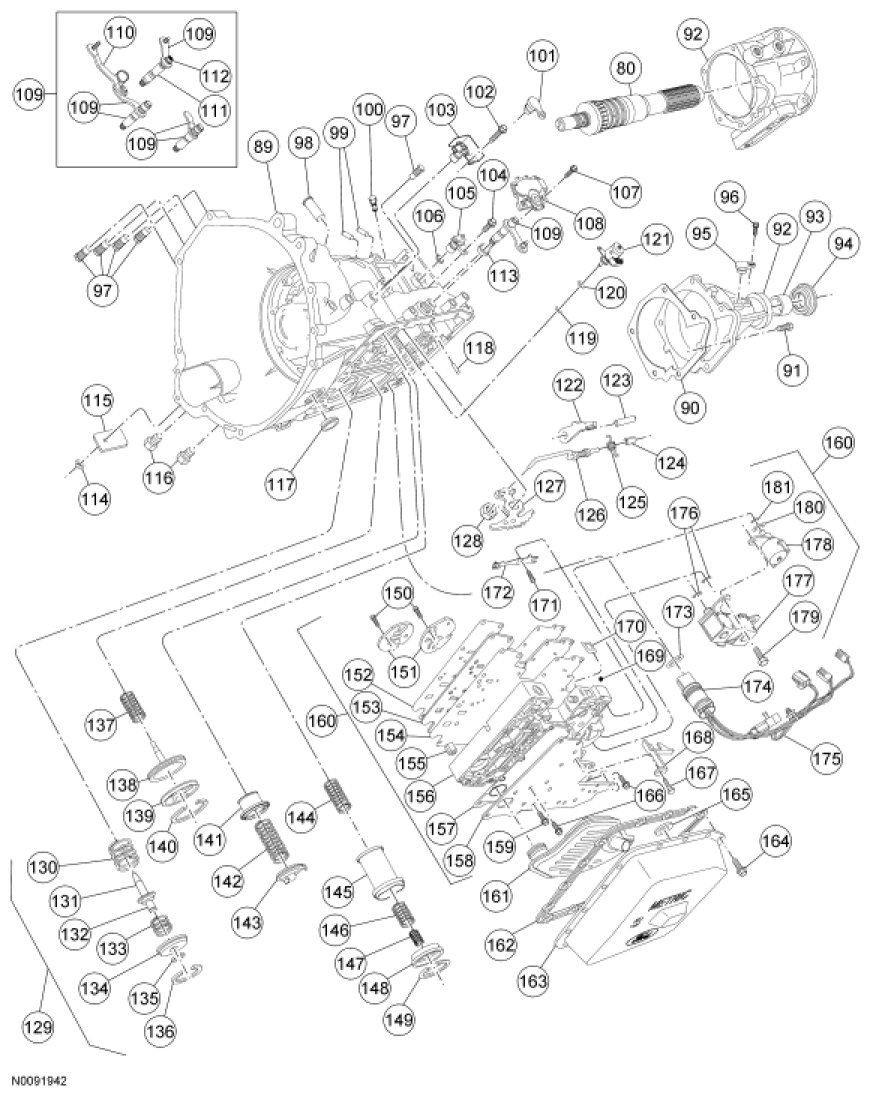

Transmission Disassembled View
Transmission Disassembled View
Disassembled View
