Home
>>
Ford
>>
2008
>>
Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case Actuator
Transfer Case Actuator

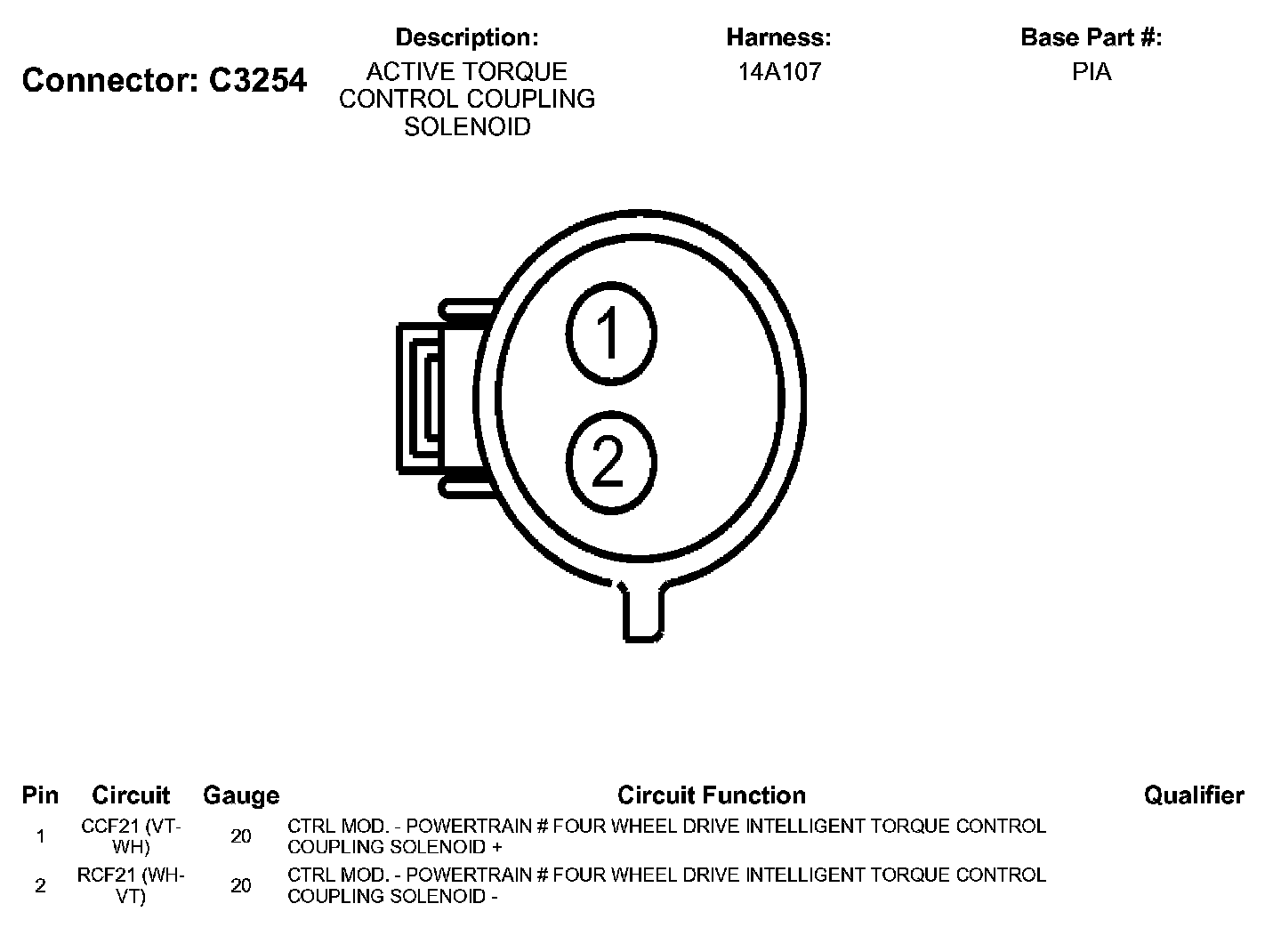

C3254:
