Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
HVAC-EMTC
HVAC-EMTC

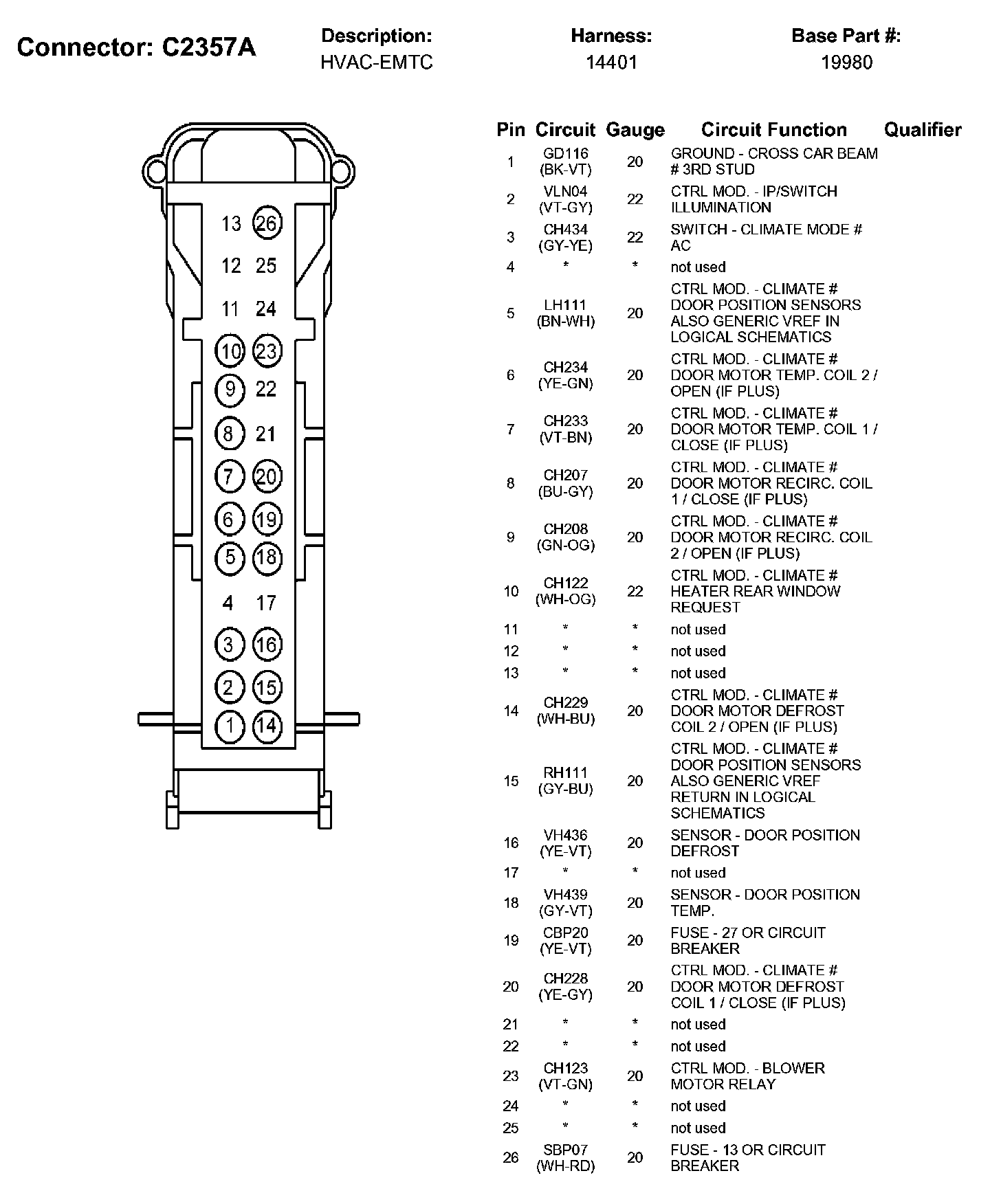

C2357A:

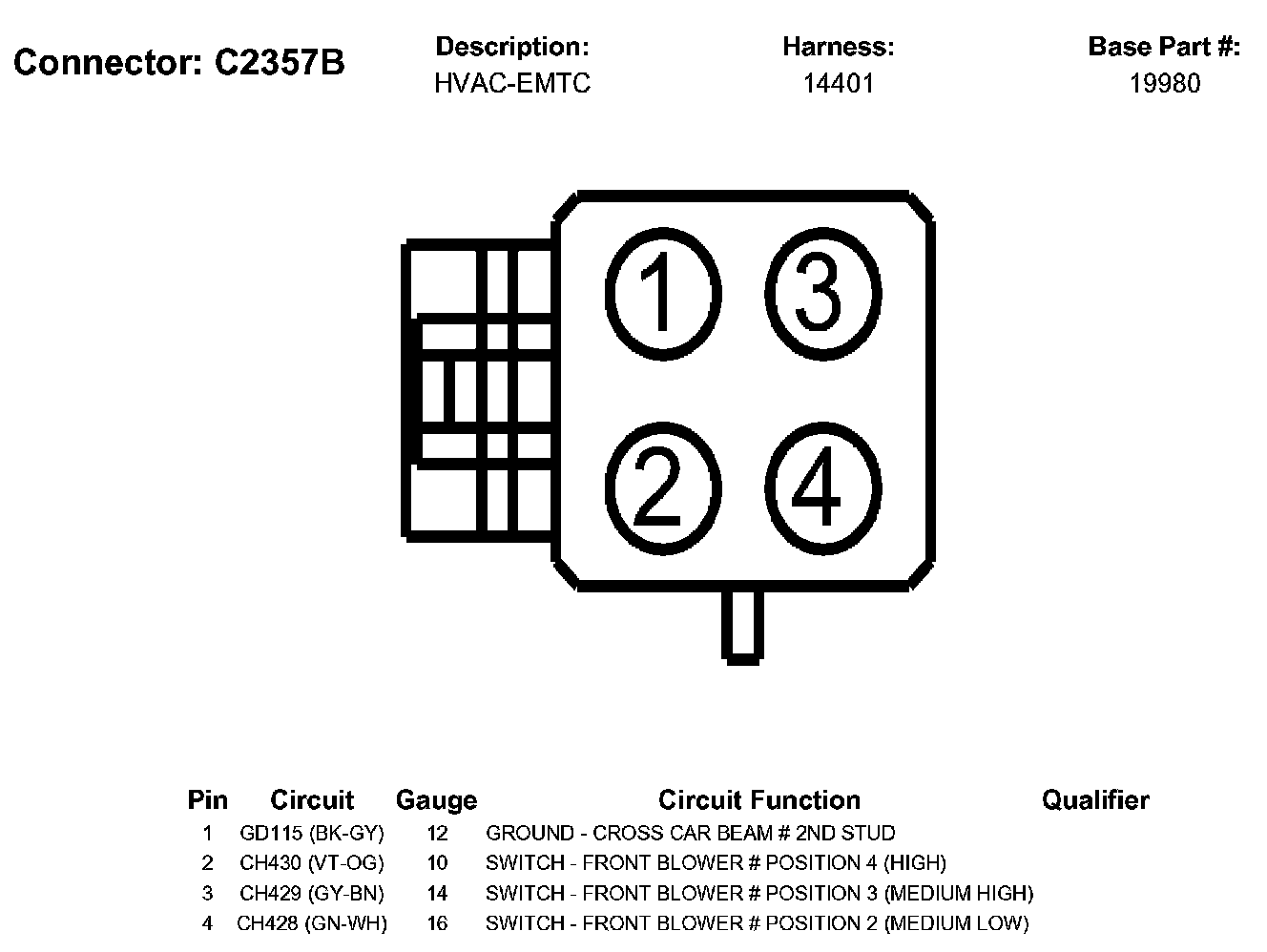

C2357B:
