Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
HVAC-EATC
HVAC-EATC

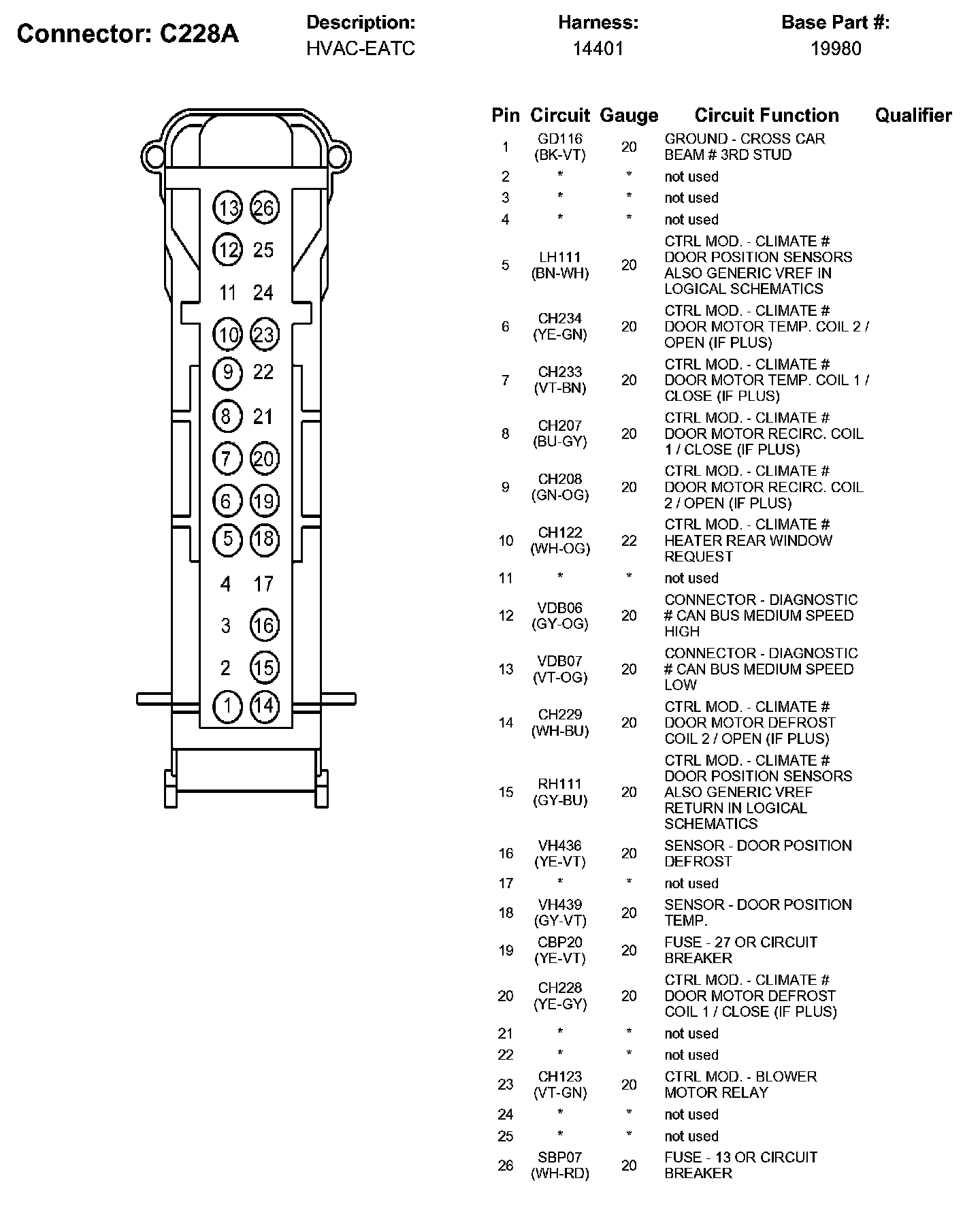

C228A:

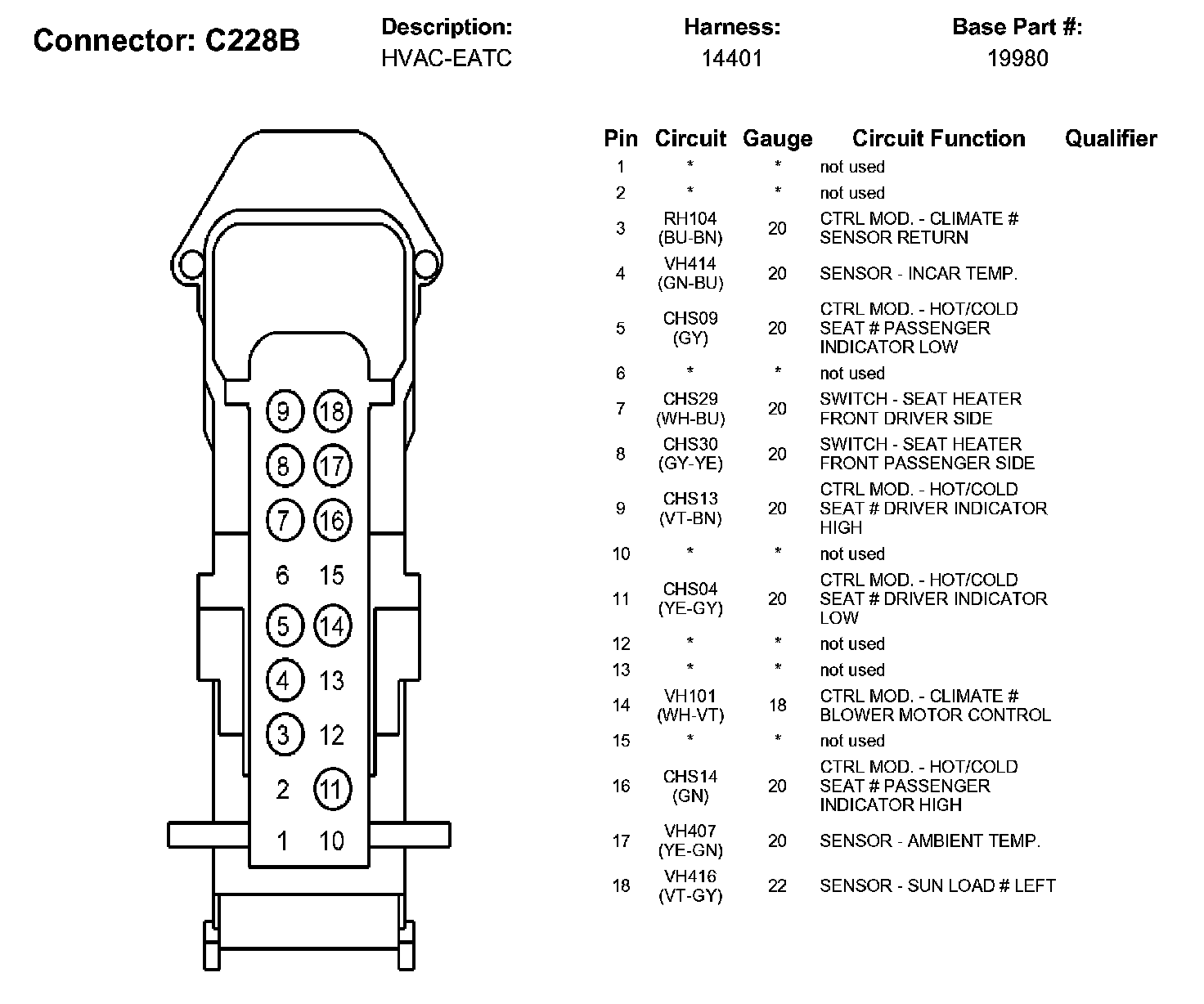

C228B:
