Ford
>>
2007
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Connector Views
Connector Views

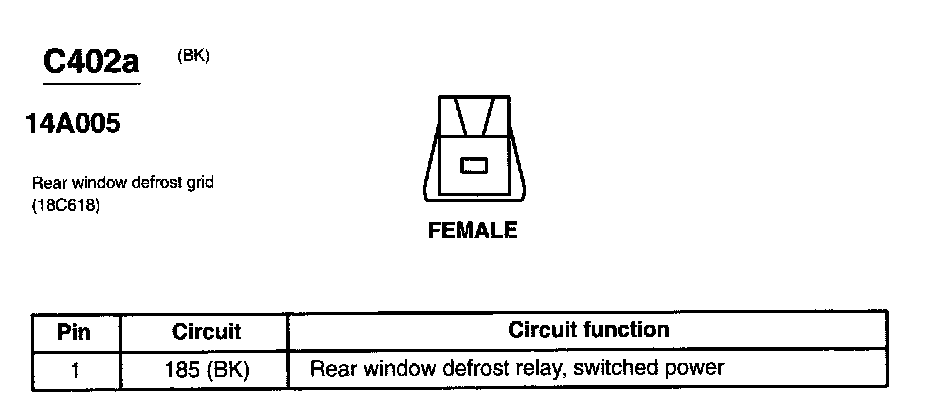

C402a:

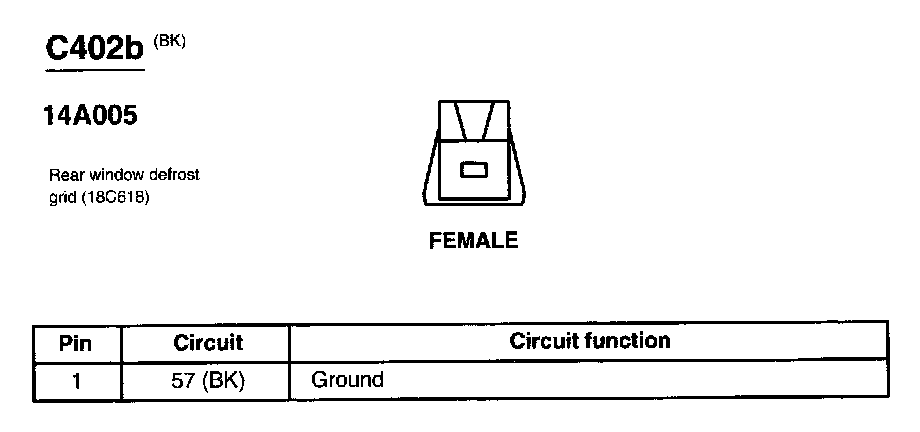

C402b:
