Home
>>
Ford
>>
2007
>>
Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

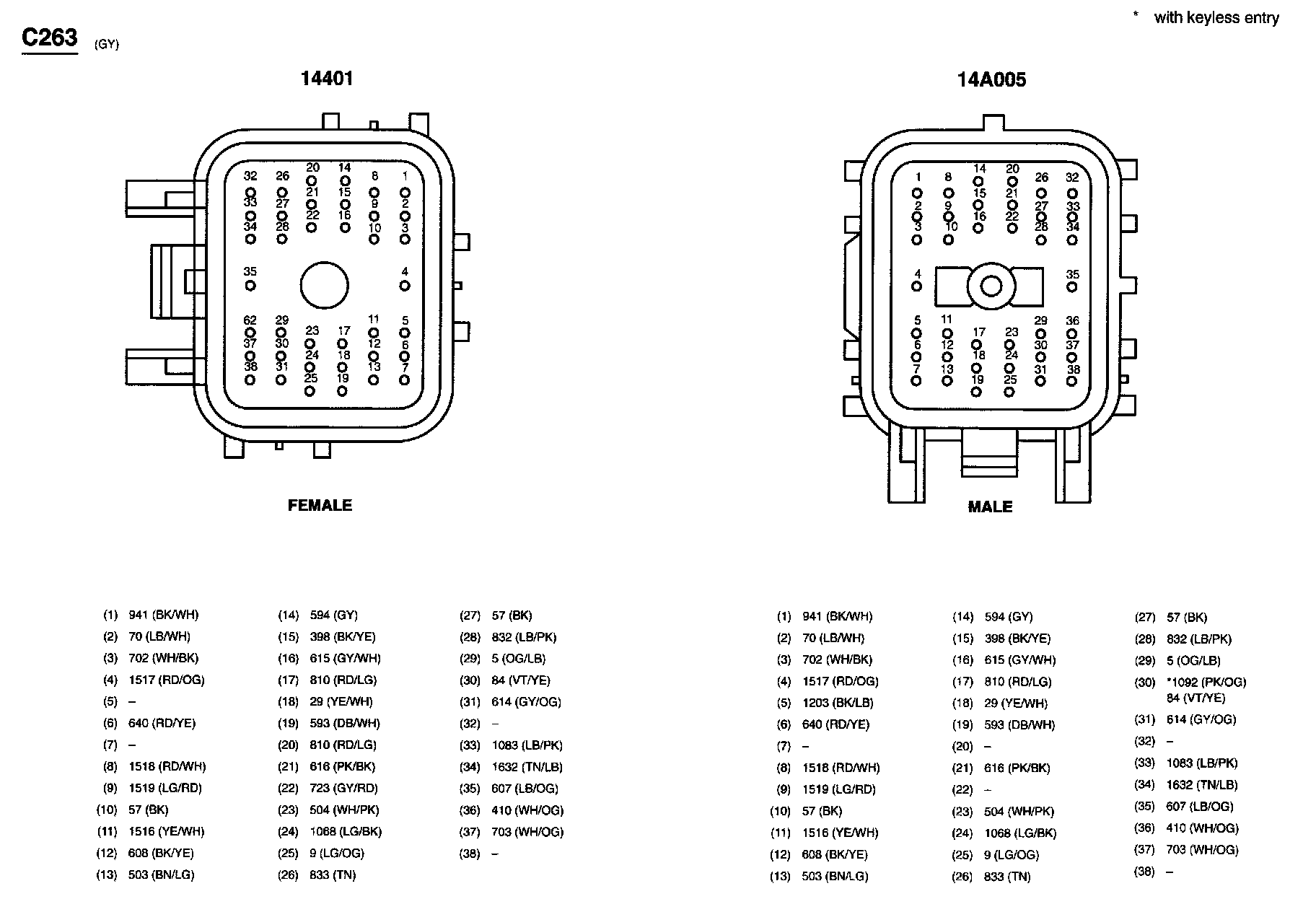

C263
C263
C263:
