Home >> Ford >> 2007 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 81 (Front Wipers and Washers)

Diagram Set 81 (Front Wipers and Washers)

81-1:

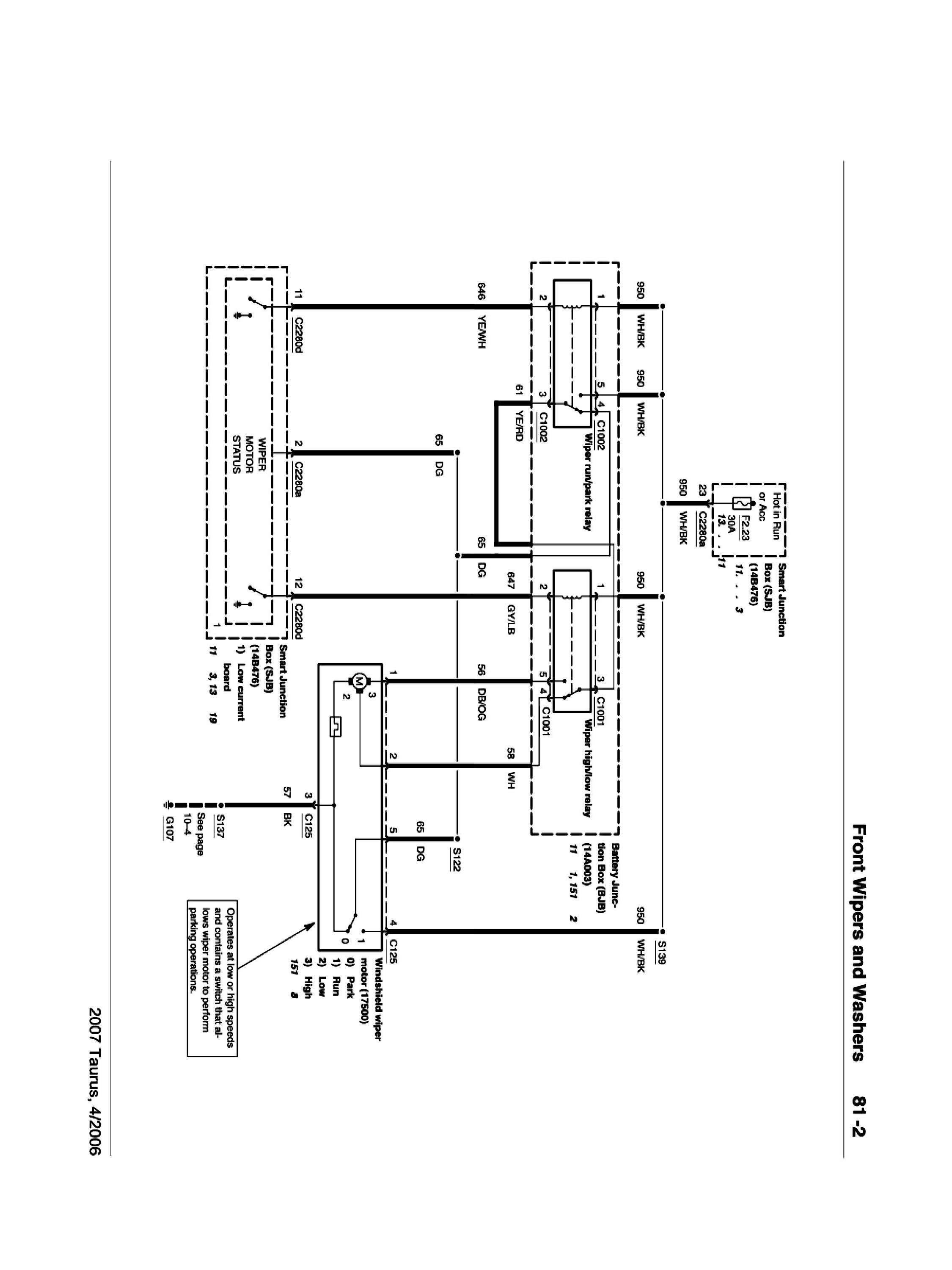

81-2:
