Home >> Ford >> 2007 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Test

Component Test

SWITCH

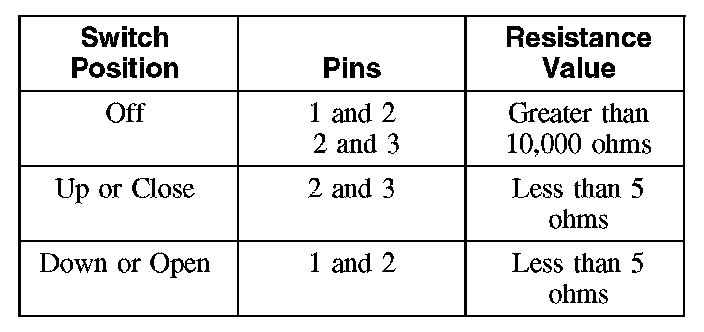

1. Measure the resistance between the following roof opening panel switch pins (component side) as:
