Stabilizer Bushing: Service and Repair

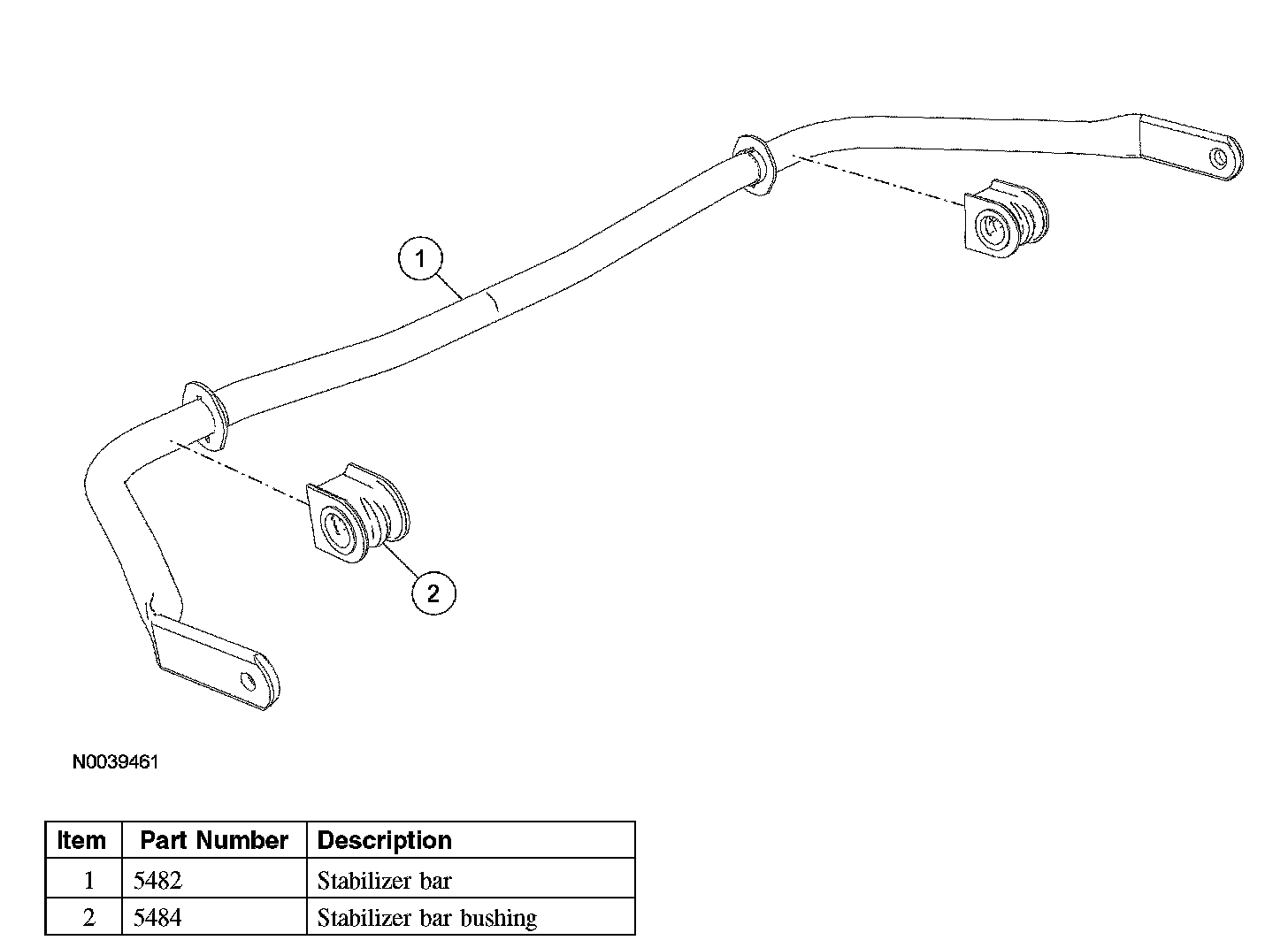

Stabilizer Bar Bushing

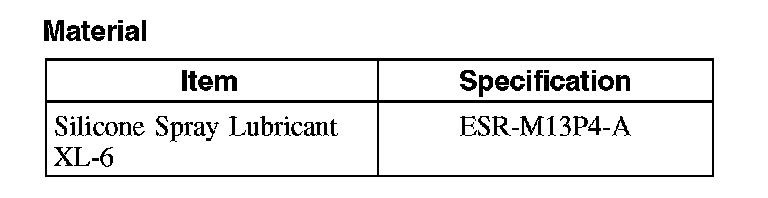

Material:

Removal and Installation
1. Remove the stabilizer bar.

2. NOTE: To aid removal, apply a light coat of lubricant to the necessary parts of the front stabilizer bar.

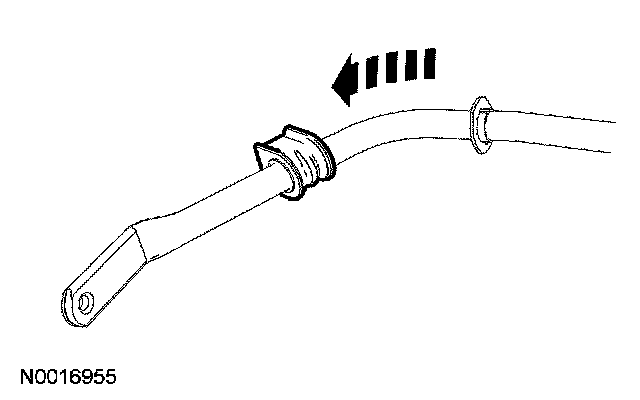

Remove the stabilizer bar bushing by sliding if off the stabilizer bar.

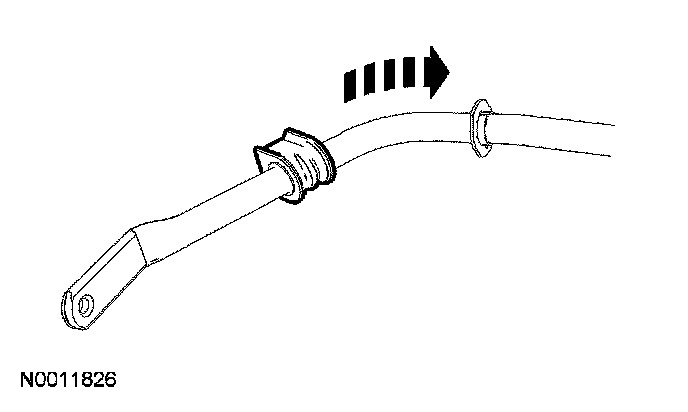

3. NOTE: To aid installation, apply a light coat of lubricant to the necessary parts of the front stabilizer bar and the inside diameter of the stabilizer bar bushing.

To install, reverse the removal procedure.
