Ford
>>
2007
>>
Mustang V8-5.4L SC VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Diagrams
>>
Ignition Transformer Capacitor #1
Ignition Transformer Capacitor #1

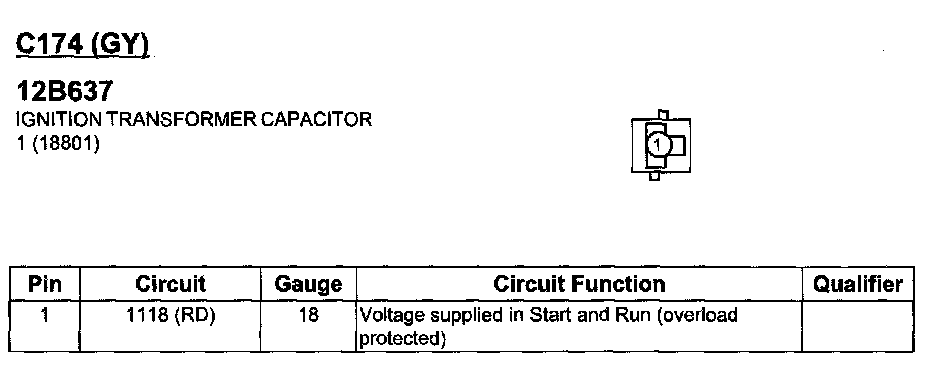

C174:

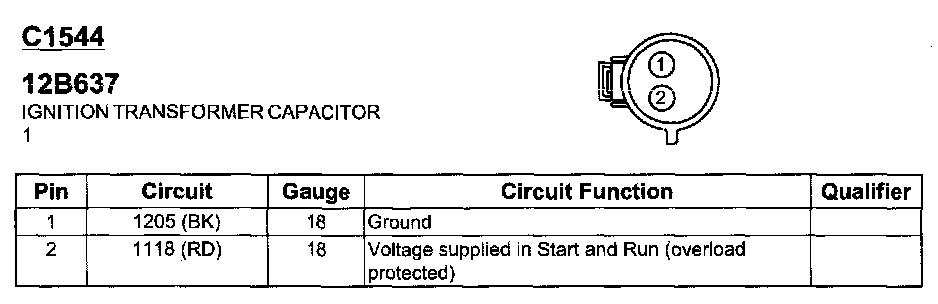

C1544:
