Thermostat: Diagrams

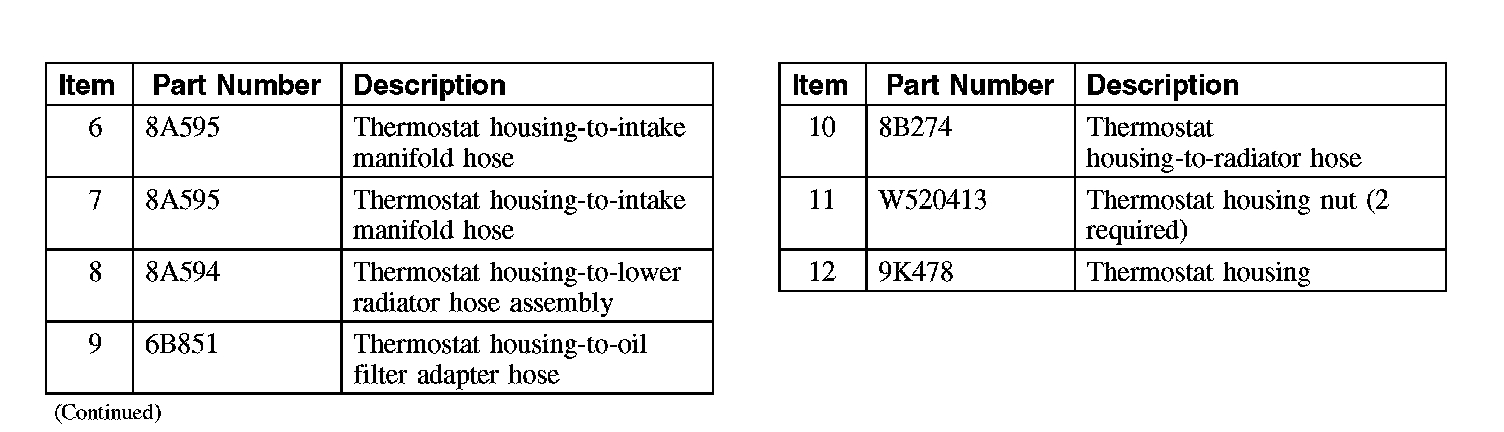

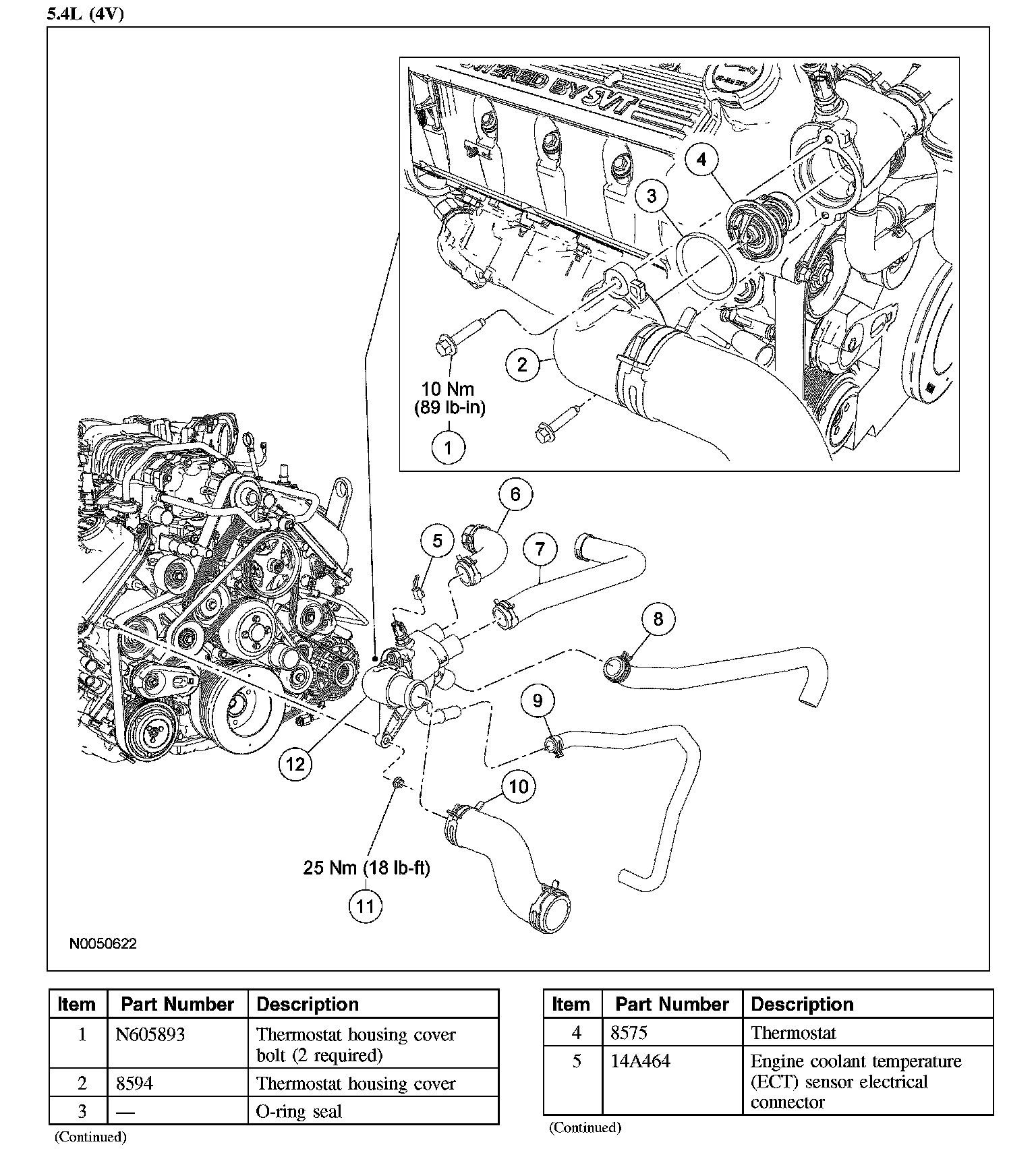

Thermostat and Thermostat Housing - Exploded View 5.4L (4V):
Thermostat and Thermostat Housing - Exploded View 5.4L (4V):
