Drive Belt
Drive Belt

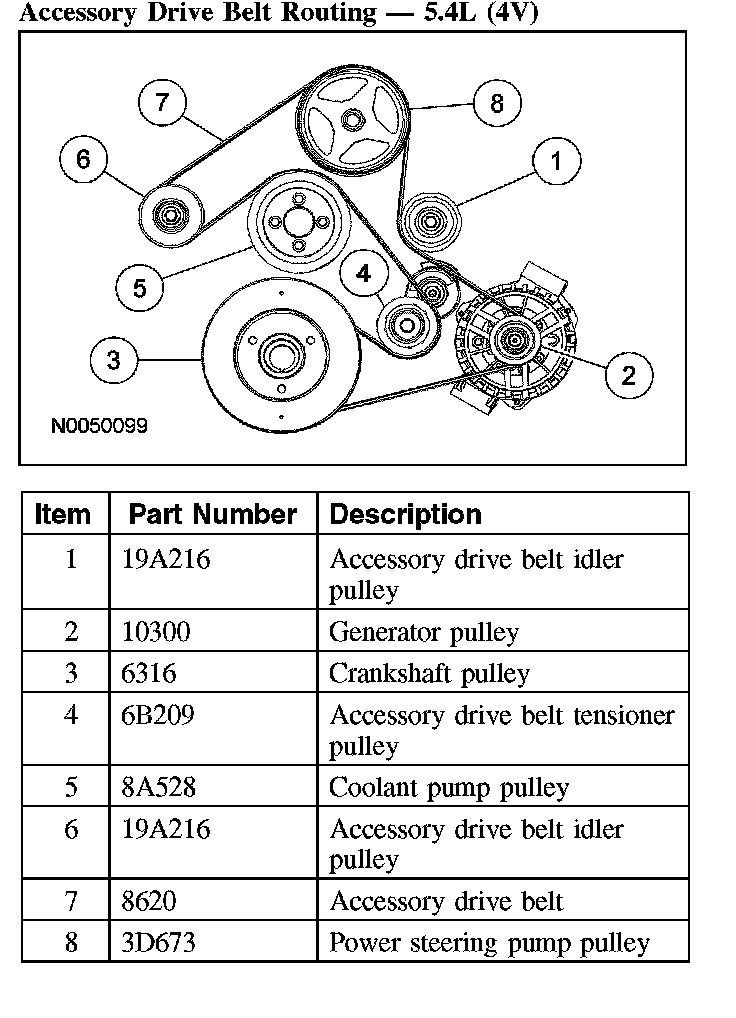

Accessory Drive Belt Routing - 5.4L (4V):

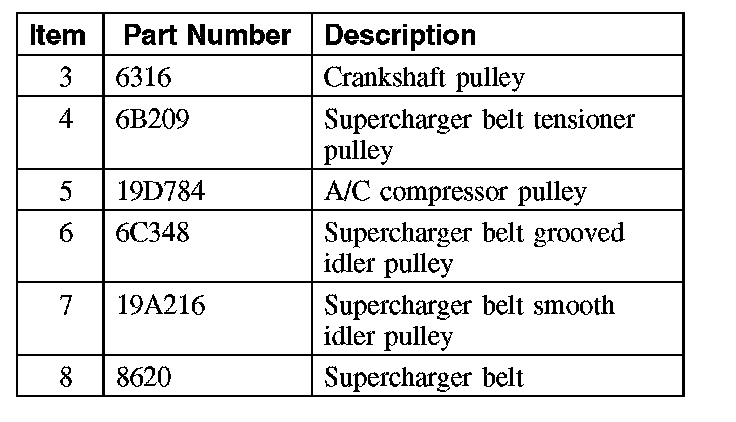

Supercharger Belt Routing - 5.4L (4V):
Supercharger Belt Routing - 5.4L (4V):
