Rear Drive Axle/Differential - Ford 7.5-Inch Ring Gear
>>

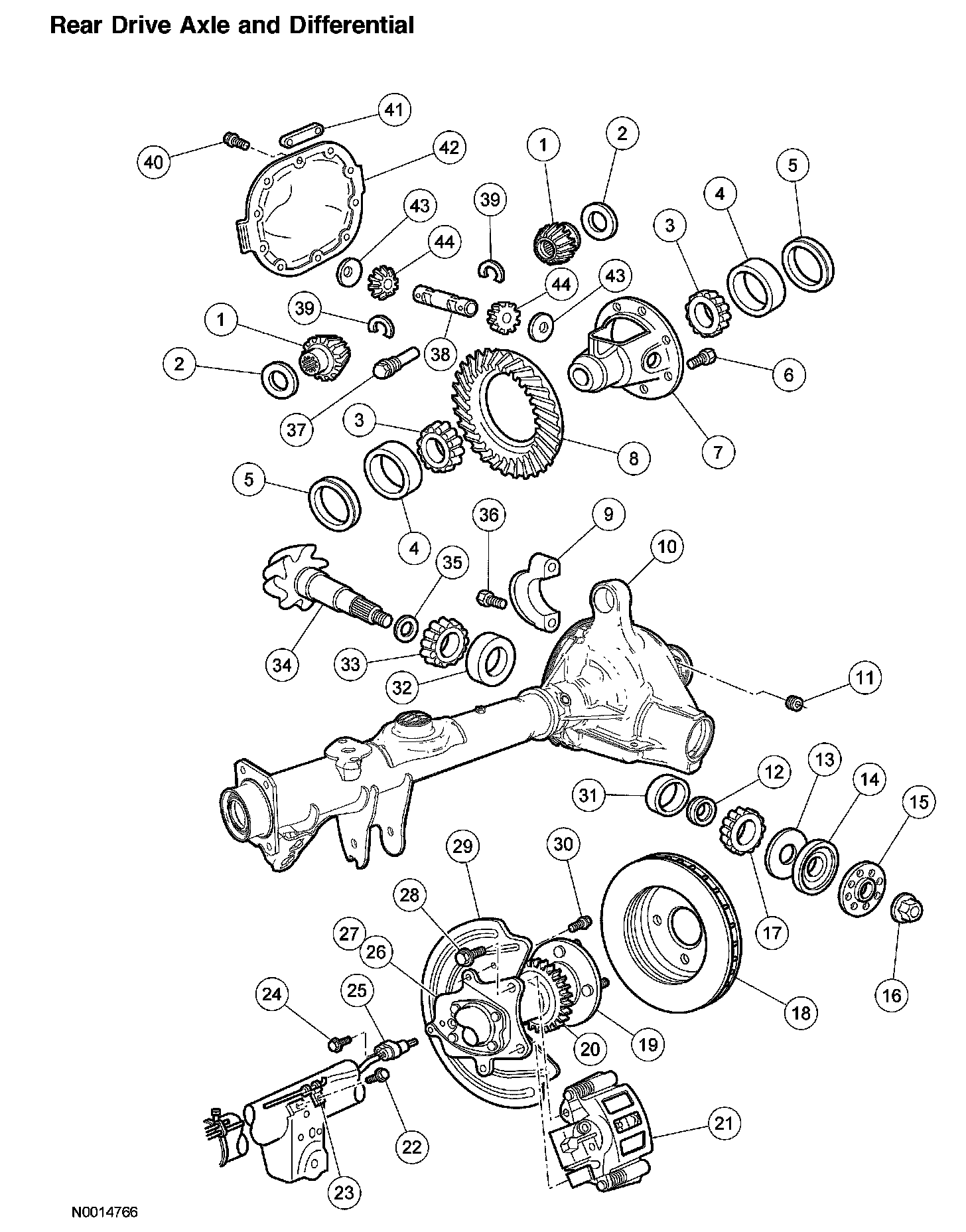

Rear Drive Axle and Differential
Rear Drive Axle and Differential
Rear Drive Axle and Differential

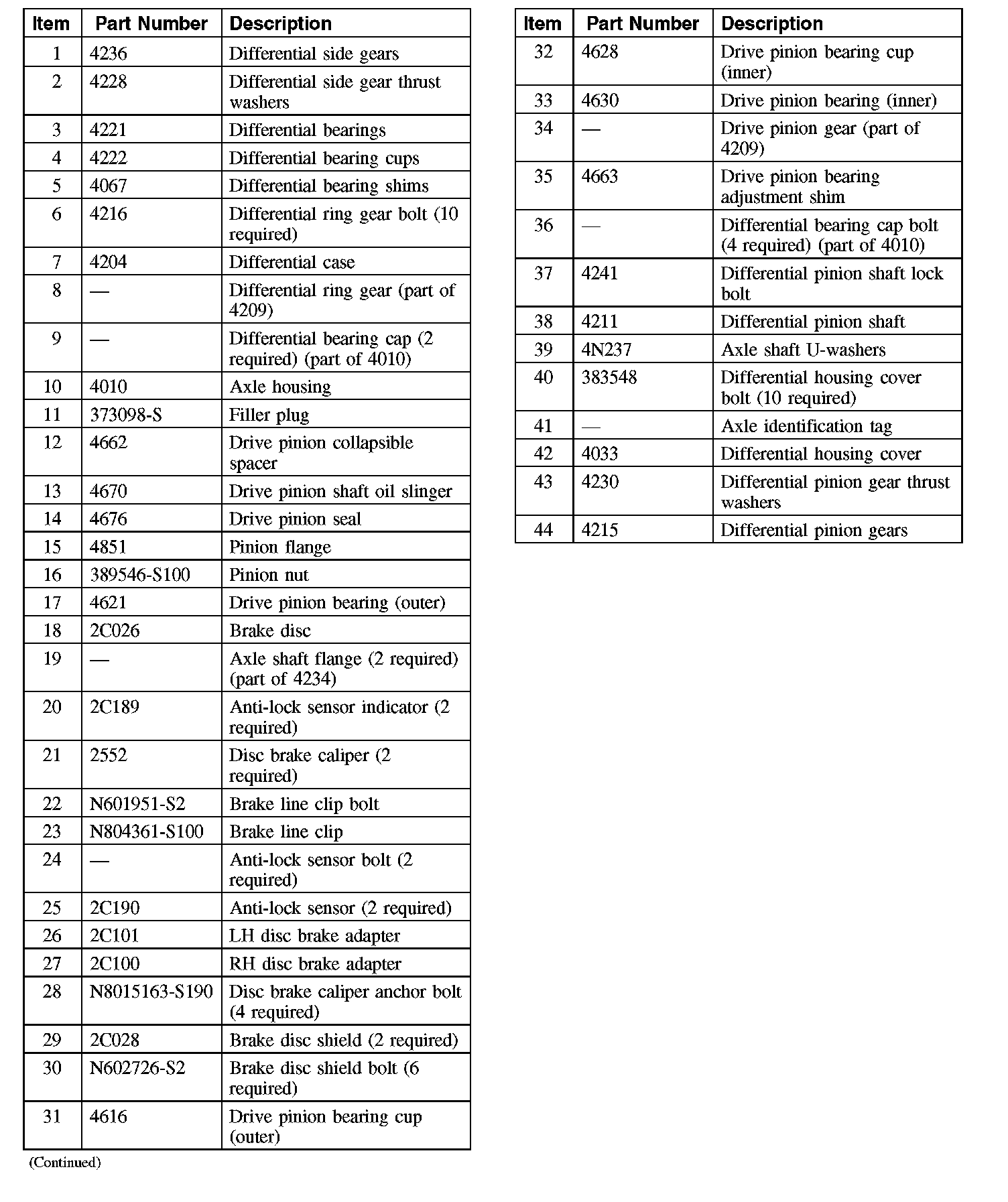

Rear Drive Axle and Differential (Part 1):
Rear Drive Axle and Differential (Part 2):
